Features
- Mechanical, keyless, narrow stile lock
- Replaces Adams-Rite style lock
- Locks automatically, now with passage function
- One user code
- Knob on exterior, thumb turn on interior
- Changeable handing
- Ideal for aluminum storefront doors
Dimensions & Specifications
- Dimensions: 5 5/8” L x 1 5/8” W x 1 5/8” D
- Total Coverage with Trim Plates: 6” L x 2” W
- Door Thickness: 1 1/8” to 2”, up to 5” with Extension Kit
- Backset: 1 1/8”
- Material: Zinc-plated steel
- Teflon coated stainless steel interior components
- For Exterior & Interior Use
- Weather Resistant
- Lifetime Mechanical Warranty

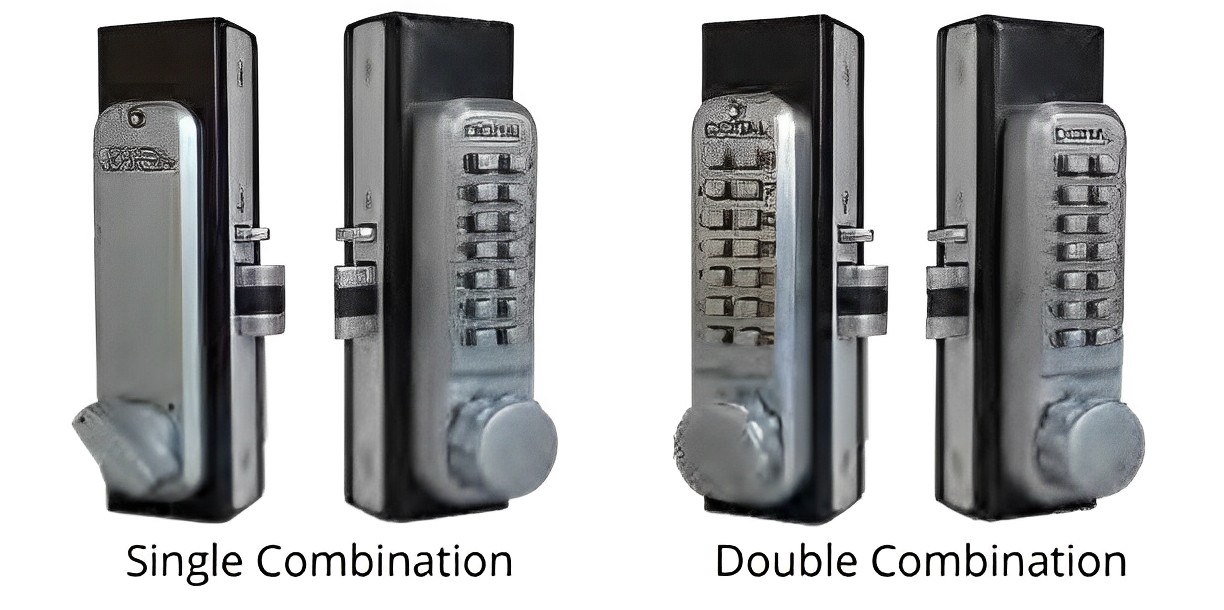

Options:
- Single Combination
- Double Combination

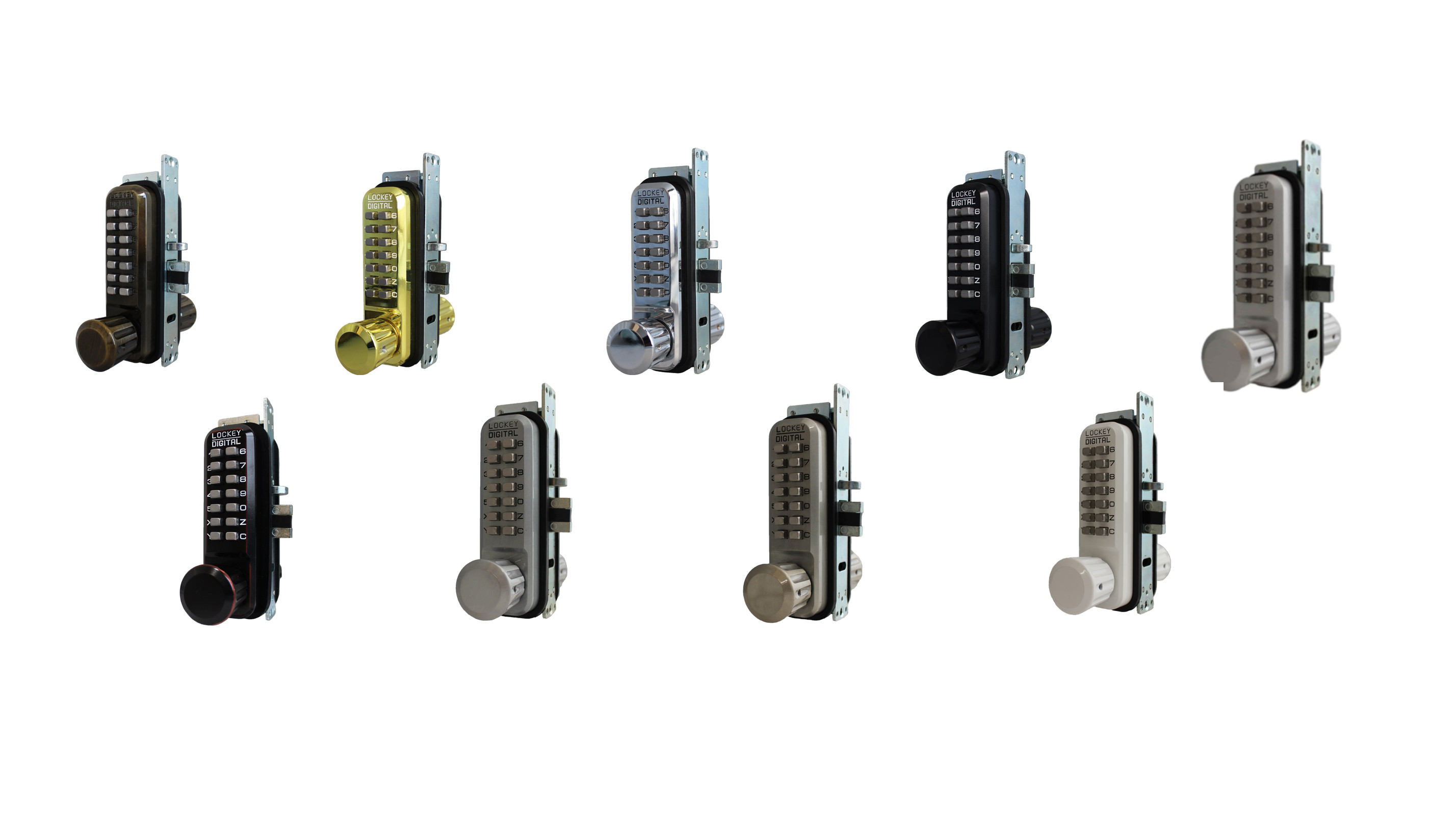

Finishes:
- Antique Brass (AB)
- Bright Brass (BB)
- Bright Chrome (BC)
- Jet Black (JB)
- Marine Grade (MG)
- Oil Rubbed Bronze (OIL)
- Satin Chrome (SC)
- Satin Nickel (SN)
- White (WH)
Downloads
Manufacturer Resources
Product Specs
- Category:
- Mechanical Locks
- Product Group:
- Mechanical Locks
- Dimensions:
- 5 5/8" L x 1 5/8" W x 1 5/8" D
- Door Thickness:
- 1-1/8" to 2"
- Backset:
- 1-1/8"
- Product Subgroup:
- Mortise Locks and Trim
- Subcategory:
- Mechanical Push Buttons
- Product Type:
- Narrow Stile Locks
- Substrate:
- Zinc-Plated Steel
- Commercial/Residential:
- Commercial
- Handle Type:
- Knob
- Stile Type:
- Narrow Stile
- MAP Policy:
- Yes
