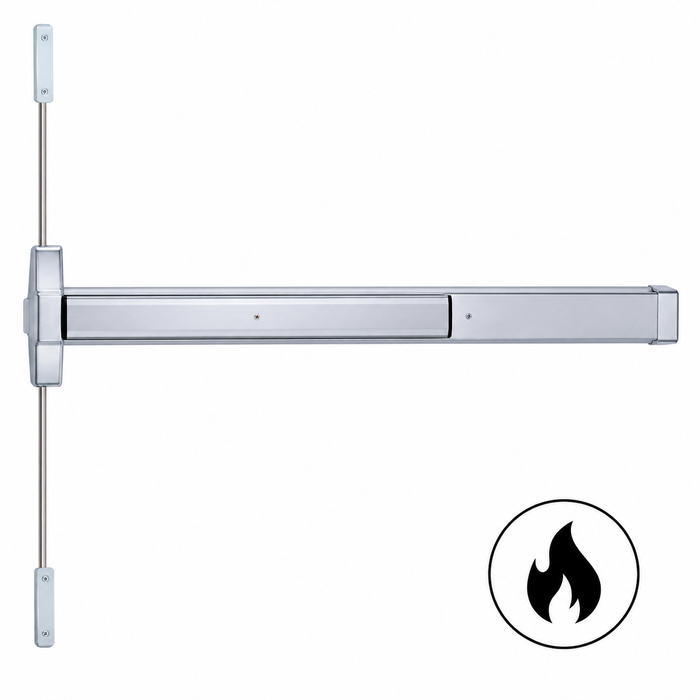

3100 SERIES SURFACE VERTICAL ROD
The 3100 Series Fire-Rated Surface Vertical Rod Exit Device is designed for hollow metal and wood applications that require a fire-rated exit device with surface vertical rods for two-point locking.
Designed for use in applications with single doors or pairs of doors.
| Model | Type | Rating | Door | Max Size Single Doors | Max Size Pairs & Double Egress |
| 3100 | SVR | 3 hr | Hollow metal | 4'0" x 10'0" | 8'0" x 10'0" |
| 3100 | SVR | 90 min | Wood | 4'0" x 10'0" | 8'0" x 9'0" |
| 3100T | SVR-TRO | 3 hr | Hollow metal | 4'0" x 8'0" | 8'0" x 10'0" |
| 3100W | SVR-TRO | 1-1/2 hr | Wood | 4'0" x 8'0" | 8'0" x 8'0" |
| 3100W | SVR-TRO | 20 min | Wood | 4'0" x 9'0" | 8'0" x 9'0" (std pairs) |
FEATURES
Materials: Push bar made of extruded aluminum, available in a variety of finishes.
Handing: Device is non-handed.
Push bar Length: Standard sizes: dimensioned for 30" [762mm], 36" [914.4 mm], 42" [1066.8 mm], and 48" [1219.2 mm] openings. Standard width bars can be field cut to the next smallest opening width.
Bar Height: Standard model adjusts from 30" [762 mm] to 44" [1117.6 mm].
Fasteners: Standard self-tapping screws and machine screws. Optional Sex Bolt Kits 26-0584 (two required per device). Specify finish.
Projection: 2-15/16" [74.6 mm] when fully projected,1-15/16" [49.2 mm] when dogged.
Door Height: Standard configuration suitable for doors up to 8' [2.44 m] door, with bar height at 40" [1016mm] – 44" [1117.6 mm]. For doors up to 10' [3.05m] use 8055 Tall Door Kit available separately.
Door Thickness: Suits 1-3/4" [44.5 mm] standard, up to 2-1/4" [57.2 mm].
Stile Width: Minimum 2" stile. Fits narrow, medium,and wide stile aluminum doors.
Dogging: Standard dogging with hex key or optional cylinder dogging. Electric dogging option also available.
Cylinders: Select any standard 1-5/32" [29.4 mm] diameter rim cylinder such as the 8736 Rim Cylinder. Available separately.
Cylinder x Fixed Pull Functions: For entry trim function 03 (Night latch - key releases latch) select any standard 1-5/32"[29.4 mm] diameter rim cylinder such as the 8736 Rim Cylinder. Available separately.
Entry Trim Functions: For entry trim function 08 (key locks/unlocks lever) or function 09 (key releases lever) select any standard 1" [25.4 mm] length, 1-5/32"[29.4 mm] diameter mortise cylinder with MS® cam such as the 4036 Mortise Cylinder. Accommodates cylinder lengths from 1" [25.4mm] to 1-1/4" [31.8 mm]. Available separately.
Bolts and Strikes: The patented top latching mechanism utilizes a rotating top bolt which latches around the header strike, interlocking the door to the frame. Adjustable steel rods protected in contoured covers. The hexagonal, hardened steel bottom bolt is shielded ina cast housing for strength and stability. Supplied with standard header strike.
DOCUMENTS
Manufacturer Resources
Product Specs
- Category:
- Exit Devices and Trim
- Product Group:
- Exit Devices and Trim
- Series:
- 3100 Series
- Grade:
- Grade 1
- Stile Width:
- 3-3/4"
- Fasteners:
- Machine Screws
- Warranty:
- 5 Year
- Door Thickness:
- 1-3/4"
- Projection:
- 2-15/16"
- Model:
- 31 Fire-Rated
- Product Subgroup:
- Exit Devices - Vertical Rod
- Product Type:
- Exit Devices - Surface Vertical Rod
- Subcategory:
- Surface Vertical Rod
- Door Type:
- Standard & Wood Doors
- Substrate:
- Aluminum
- Commercial/Residential:
- Commercial
- Stile Type:
- Wide Stile
- Fire Rated:
- Yes
