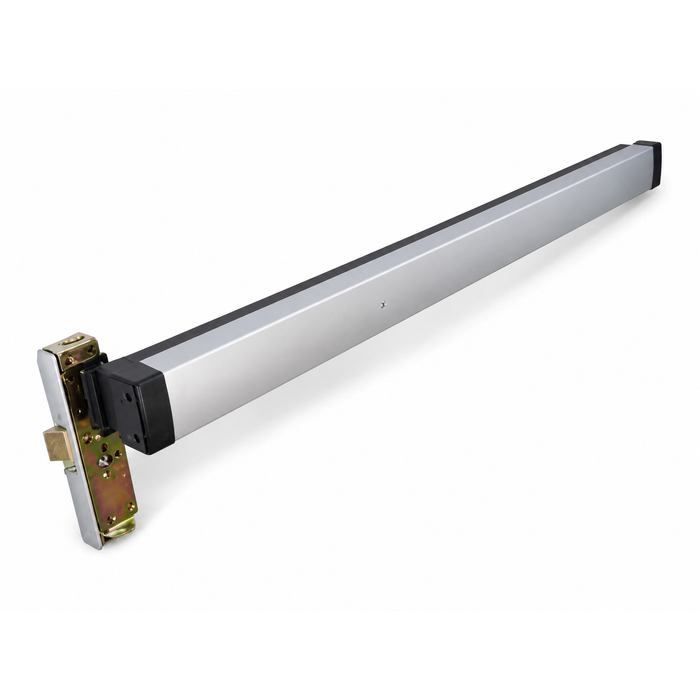

8300 SERIES MORTISE EXIT DEVICE
The 8300 Series Mortise Exit Device is designed for hollow metal and wood applications that require a life-safety exit device with mortise locking solution.
FEATURES
Materials: Push bar made of extruded aluminum, available in a variety of finishes.
Handing: Specify handing and bevel if applicable.
Push bar Length: Standard sizes: dimensioned for 30" [762.0 mm], 36" [914.4 mm], 42"[1,066.8 mm], and 48" [1,219.2 mm] openings. Standard width bars can be field cut to the next smallest opening width.
Backset: 2-3/4" [69.9 mm] only.
Door Thickness: Suits 1-3/4" [44.5 mm] standard. Can be modified for thicker doors.
Stile Width: Minimum 5" [127.0 mm]. Door construction may require additional stile width to meet fire ratings and provide adequate strength
Projection: 2-15/16" [74.6 mm] when fully projected,1-15/16" [49.2 mm] when dogged.
Dogging: Standard dogging with hex key or with cylinder not available on fire-rated exit devices. Electric dogging option available only.

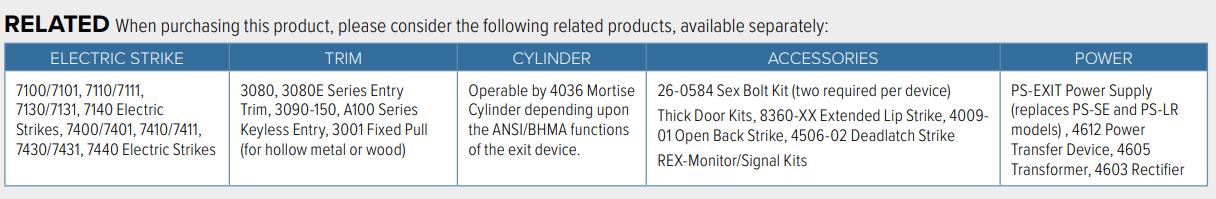

Fasteners: Standard self-tapping screws and machine screws. Optional Sex Bolt Kits 26-0584 (two required per device) available separately.
Cylinders: Accepts any standard 1" [25.4 mm] length,1-5/32" [29.4 mm] diameter mortise cylinder with MS® cam such as the 4036 Mortise Cylinder. Accommodates cylinder lengths from 1" [25.4 mm] to1-1/4" [31.8 mm]. Available separately.
Cylinder x Fixed Pull Functions
For entry trim function 03 (Night latch - key releases latch) select any standard 1" [25.4mm] length, 1-5/32" [29.4 mm] diameter mortise cylinder with MS® cam such as the 4036 Mortise Cylinder. Accepts any standard mortise cylinder with MS® cam. If key entry operation is required, any standard mortise cylinder with MS® cam can be installed through an 8650 Cylinder Escutcheon. 8650 Cylinder Escutcheon Kit available separately.
Entry Trim Functions: For entry trim function 08 (key locks/unlocks lever) or function 09 (key releases lever) select any standard 1" [25.4 mm] length, 1-5/32"[29.4 mm] diameter mortise cylinder with MS® cam such as the 4036 Mortise Cylinder. Accommodates cylinder lengths from 1" [25.4mm] to 1-1/4" [31.8 mm]. Available separately.
Bolts and Strikes: The patented top latching mechanism utilizes a rotating top bolt which deadlatches around the header strike, interlocking the door to the frame. Supplied with standard header strike. Adjustable protected steel rods. The hexagonal, hardened steel bottom bolt is shielded in a cast housing for strength and stability.
DOCUMENTS
Manufacturer Resources
Product Specs
- Product Group:
- Exit Devices and Trim
- Series:
- 3300 Series
- Grade:
- Grade 1
- Stile Width:
- 3-3/4"
- Warranty:
- 5 Year
- Subcategory:
- Mortise Exit Devices
- Product Subgroup:
- Exit Devices - Mortise
- Fasteners:
- Machine Screws
- Commercial/Residential:
- Commercial
- Product Type:
- Exit Devices - Mortise
- Lock Type:
- Mortise
- Stile Type:
- Wide Stile
- Product Model:
- 33
- Product Length:
- 30"
- Fire Rating:
- Yes
- Product Substrate:
- Aluminum
- Product Category:
- Exit Devices and Trim
