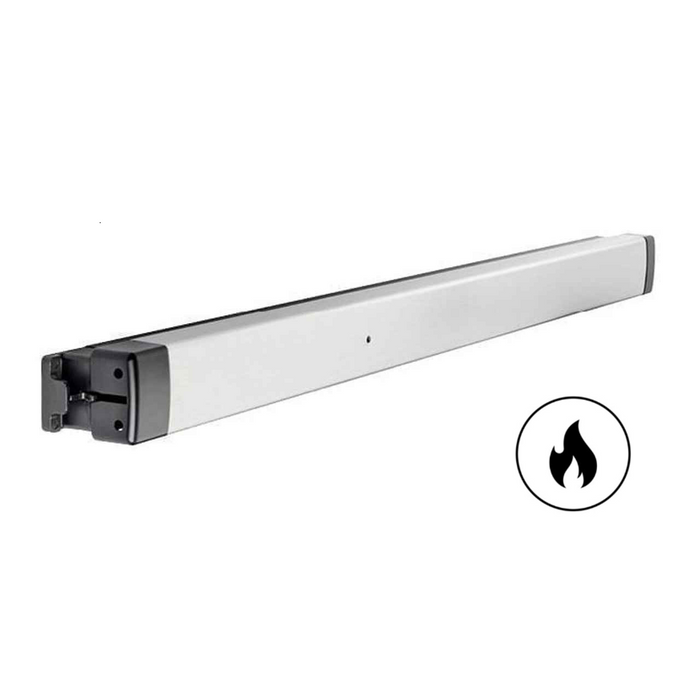

3700 SERIES NARROW STILE RIM EXIT DEVICE ROD
The 3700 Series Fire-Rated Rim Exit Device is designed for hollow metal and wood applications that require a fire-rated exit device with Starwheel interlocking solution.
Designed for use in applications with single doors or pairs of doors with a mullion.
| Model | Type | Rating | Door Construction | Max Size Single Doors | Max Size Pairs & Double Egress |
| 3700 | RE (Rim Exit) | 3 hr | Hollow metal or wood | 4'0" x 10'0" | 8'0" x 10'0" |
FEATURES
Materials: Push bar made of extruded aluminum, available in a variety of finishes.
Handing: Device is non-handed.
Push bar Length: Standard sizes: dimensioned for 30" [762mm], 36" [914.4 mm], 42" [1066.8 mm], and 48" [1219.2 mm] openings. Standard width bars can be field cut to the next smallest opening width.
Fasteners: Standard machine screws.
Projection: 2-15/16" [74.6 mm] when fully projected,1-15/16" [49.2 mm] when dogged.
Door Thickness: Suits 1-3/4" [44.5 mm] standard, up to 2-1/4"[57.2 mm].
Stile Width: Minimum 2" [50.8 mm] stile. Fits narrow, medium, and wide stile aluminum doors.
Stile Wall: Doors with stile walls other than1/8" [3.2 mm] require modification.
Dogging: Standard dogging with hex key or optional cylinder dogging. Electric dogging option also available.
Cylinders: Accepts any standard 1" [25.4 mm] length,1-5/32" [29.4 mm] diameter mortise cylinder with MS® cam such as the 4036 Mortise Cylinder. Accommodates cylinder lengths from 1" [25.4 mm] to1-1/4" [31.8 mm]. Available separately.
Cylinder x Fixed Pull Functions: For function 03 (Night latch - key releases latch) select any standard1-5/32" [29.4 mm] diameter rim cylinder such as the 8736 Rim Cylinder.
Entry Trim Functions: For entry trim function 08 (key locks/unlocks lever) or function 09 (key releases lever) select any standard 1" [25.4 mm] length, 1-5/32"[29.4 mm] diameter mortise cylinder with MS® cam such as the 4036 Mortise Cylinder. Accommodates cylinder lengths from 1" [25.4mm] to 1-1/4" [31.8 mm]. Available separately.
Strikes: Standard strike and narrow versions for centering doors in 4"jamb (both strikes included).
DOCUMENTS
Installation Instructions & Templates
Adams Rite Rim Exit Device & Electric Strikes Solutions Flyer
Manufacturer Resources
Product Specs
- Category:
- Exit Devices and Trim
- Product Group:
- Exit Devices and Trim
- Series:
- 3700 Series
- Grade:
- Grade 1
- Stile Width:
- 3-3/4"
- Warranty:
- 5 Year
- Model:
- 37
- Subcategory:
- Rim Exit Devices
- Product Subgroup:
- Exit Devices - Rim
- Product Type:
- Exit Devices - Rim
- Fasteners:
- Machine Screws
- Substrate:
- Aluminum
- Commercial/Residential:
- Commercial
- Stile Type:
- Narrow Stile
- Fire Rated:
- Yes
- Size:
- 30"
