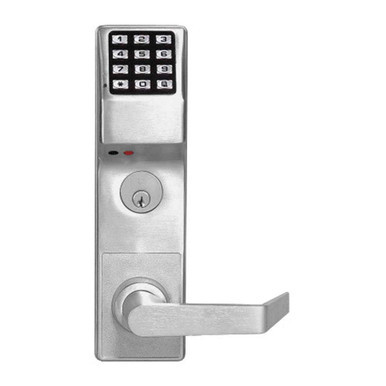

Alarm Lock DL2700DL T2 Series Electronic Digital Mortise Lock with Deadbolt Function - Weatherproof Grade 1 Satin Chrome

Alarm Lock DL2700DL Electronic Digital Mortise Lock with Deadbolt Function - Weatherproof Grade 1 Satin Chrome

Professional Keyless Access Control for Commercial Applications

Trilogy T2 Keyless Access Lock designed for mortise door prep with classroom or deadbolt function options, each offering distinct security features tailored to specific access needs. The Alarm Lock DL2700DL is a Grade 1 electronic digital mortise lock featuring deadbolt function and weatherproof construction. This Trilogy T2 keyless access lock accommodates mortise door preparation with 2-3/4" backset and supports door thickness from 1-5/8" to 1-7/8". The unit holds up to 100 user codes, 1 master code, 10 manager codes, and up to 3 one-time user codes, powered by a 5AA battery pack rated for 75,000 cycles.

Professional Features & Benefits

• Door Compatibility: Designed for 1-5/8" to 1-7/8" door thickness with standard 2-3/4" backset for versatile mortise applications.
• Extended Battery Life: 5AA battery pack provides up to 75,000 cycles for reliable long-term operation with minimal maintenance.
• Comprehensive Code Management: Supports up to 100 user codes plus 1 master, 10 manager codes, and 3 one-time user codes for flexible access control.
• Grade 1 Commercial Construction: Meets ANSI/BHMA Grade 1 standards for heavy-duty commercial applications requiring maximum security and durability.
• Weatherproof Design: Engineered for outdoor and exposed installations with weather-resistant construction protecting internal components.
• Professional Keypad Interface: 12 metal button electronic keypad provides tactile feedback and durability for high-traffic environments.
• Deadbolt Security Function: Provides maximum security with deadbolt locking mechanism for applications requiring enhanced protection.
• Universal Strike Compatibility: Works with both T-Standard and ASA door strikes for flexible installation options.

Technical Specifications

• Door Thickness: Fits 1 3/8" to 1 7/8"
• Strike: 1 1/4" x 4 7/8" strike included
• Handing: Specify RH or LH when ordering; lock is reversible in the field
• Power: 5 AA batteries (included)
• Keypad: All metal, 12 button. Basic functions programmed through keypad.
• Door Prep: Standard ANSI A115 Mortise prep, modified by adding additional through-bolt holes
• Compliances: Steelcase lock body meets BHMA specifications for Grade 1 locks. UL Listed to the 10C Positive Pressure Specification. FCC Certified. ADA compliant levers
• Functions: Classroom function: stainless steel latchbolt with 3/4" projection & deadlocking latch. Deadbolt function: stainless steel deadbolt with 1" projection, latchbolt with 3/4" projection & deadlocking latch. Deadbolt may be projected from key cylinder (outside) or turn-piece (inside).
• Cylinder: 1 3/8" mortise cylinder supplied. Accepts 1 3/8" to 1 1/2" mortise cylinder.

Installation & Operation

1. Verify door preparation meets mortise lock requirements including 2-3/4" backset and door thickness between 1-5/8" and 1-7/8".
2. Install mortise lock body into prepared door pocket ensuring proper alignment with door edge and face.
3. Mount exterior keypad assembly and interior trim components according to manufacturer templates and specifications.
4. Install 5AA battery pack in designated compartment and verify proper connection for electronic operation.
5. Program master code, manager codes, and user codes according to manufacturer programming instructions using the 12-button metal keypad.
6. Test all programmed codes and verify deadbolt operation, keypad response, and battery level indicators function properly.
7. Complete final adjustments for smooth operation and refer to manufacturer documentation for complete programming and troubleshooting procedures.

Professional Applications

• Commercial Office Buildings
• Educational Facilities
• Healthcare Institutions
• Retail Establishments
• Industrial and Warehouse Facilities
• Multi-Tenant Residential Properties
• Government and Municipal Buildings

Weatherproof Construction

The DL2700DL features weatherproof construction specifically designed for outdoor and exposed installations. The weather-resistant design protects internal electronic components from moisture and environmental conditions while maintaining reliable keypad operation and battery performance in challenging weather conditions.

Why Choose Alarm Lock Quality?

Alarm Lock DL2700DL electronic mortise locks deliver professional-grade reliability with Grade 1 commercial construction and weatherproof design rated for 75,000 battery cycles. The robust 12-button metal keypad and comprehensive code management system provide dependable access control for demanding commercial applications where security and durability are essential.
