Alarm Lock Alarm Lock DL3200 Series High Capacity Audit Trail Pushbutton Cylindrical Lock with Audit Trail, Weatherproof ALA-DL3200

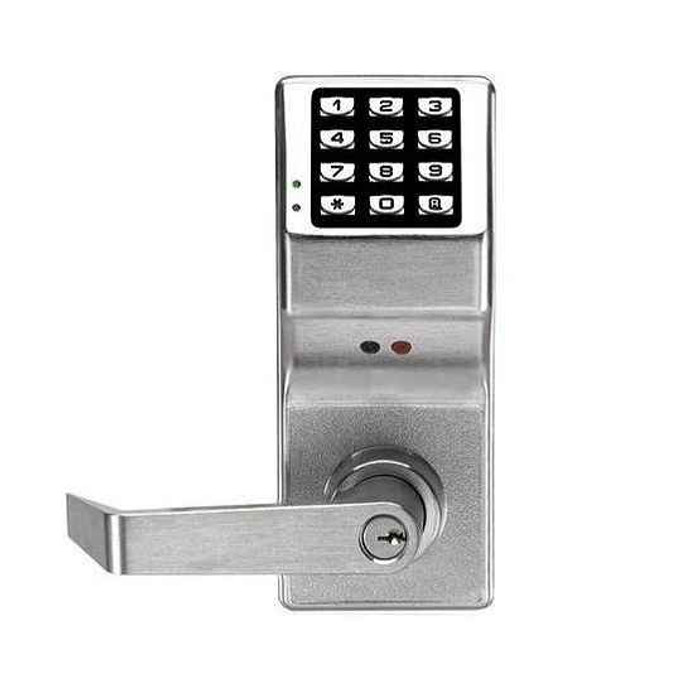

Alarm Lock DL3200 Series Grade 1 Electronic Cylindrical Lock with 2,000 User Codes and Comprehensive Audit Trail

(No reviews yet) Write a Review

Model: DL3200 US26D
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,662.36
$733.10
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Alarm Lock DL3200 Series Grade 1 Electronic Cylindrical Lock with 2,000 User Codes and Comprehensive Audit Trail

Advanced Digital Access Control with Comprehensive Audit Trail Capabilities

Grade 1 electronic cylindrical lockset offering audit trail, timed scheduling, and PIN code access, suitable for commercial, institutional, and high-security applications with robust access control features. The Alarm Lock DL3200 Series delivers professional-grade electronic access control with Grade 1 security rating and weatherproof construction. This advanced cylindrical lock features 2,000 user code capacity with multilevel security management, comprehensive 40,000 event audit trail logging, and battery-operated convenience with door thickness range of 1-5/8" to 1-7/8" for reliable commercial applications.

Professional Features & Benefits

  • Grade 1 Security Rating: Meets the highest commercial security standards for maximum protection and durability in demanding applications.
  • 2,000 User Code Capacity: Accommodates large facilities with extensive user management needs and flexible 3-6 digit code programming.
  • 40,000 Event Audit Trail: Comprehensive logging with time and date stamps enables detailed access monitoring and reporting capabilities.
  • Weatherproof Construction: Operates reliably in extreme temperatures from -31°F to +151°F for indoor and outdoor installations.
  • Battery Operation: 5 AA batteries provide up to 80,000 cycles of typical operation without hardwired power requirements.
  • Multilevel Security Management: Master, manager, supervisor, and basic user levels provide hierarchical access control.
  • Flexible Programming Options: Configure at keypad or with PC and data-transfer module for convenient setup and management.
  • Manufacturer Warranty: 2 Year Limited warranty for added confidence and protection.

Technical Specifications

  • Door Thickness: Fits 1 5/8" to 1 7/8"
  • Backset: 2 3/4" (2 3/8" also available)
  • Strike: 1 1/8" x 2 3/4" T strike & 1 1/4" x 4 7/8" ASA strike included
  • Latchbolt: UL Listed, fire rated 3 hours, 1/2" throw reversible
  • Handing: Non-handed
  • Power: 5 AA alkaline batteries (included)
  • Keypad: All metal, 12 button. All functions programmed through keypad.
  • Compliances: BHMA Certified Grade 1 heavy duty cylindrical lockset. UL Listed 10C Positive Pressure Specification. ADA compliant levers
  • Cylinder: 6 pin solid brass, SC1 keyway. Schlage, Corbin-Russwin CL, Sargent 480 series, ASSA 65-611 & Lori cylinders compatible with HW620 tailpiece (supplied)
  • Interchangeable Core Models: Standard model accepts 6 & 7 pin cylinders from Best, Falcon, Arrow, KSP, Medeco Keymark & Kaba Peaks. IC core models prepped for 6 & 7 pin Yale, Medeco, Sargent, Corbin-Russwin & Schlage also available

Installation & Operation

  1. Verify electrical requirements and confirm 5 AA battery capacity before proceeding with installation.
  2. Disconnect any existing power supply before beginning installation. Follow all applicable electrical codes and safety procedures.
  3. Mount the unit in the specified location ensuring adequate clearance for keypad access, battery compartment service, and future maintenance requirements.
  4. Route and connect wiring according to manufacturer wiring diagrams for T-Standard and ASA door strike compatibility. Use appropriate connections for the application.
  5. Configure operational settings including multilevel security management and audit trail parameters per application requirements.
  6. Install 5 AA batteries and test all functions including normal operation, keypad programming, and audit trail logging capabilities.
  7. Complete final inspection and document settings. Refer to manufacturer documentation for complete programming instructions, user code management, and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Healthcare Facilities
  • Educational Institutions
  • Government Buildings
  • Industrial Facilities
  • Multi-Tenant Properties
  • Retail Establishments

Why Choose Alarm Lock Quality?

Alarm Lock delivers proven reliability with Grade 1 security certification and weatherproof construction rated for extreme temperatures from -31°F to +151°F backed by a 2 Year Limited warranty. The DL3200 Series combines advanced electronic access control with robust cylindrical lock durability for professional installations requiring comprehensive audit trail capabilities and multilevel user management. Engineered for demanding commercial applications where dependable performance and detailed access monitoring are essential.

Product Specs

Series:
DL3200 Series
Grade:
Grade 1
Standard Cylinder:
Conventional Cylinder
Power:
Battery Operated
Warranty:
2 Year Limited
Application:
Pushbutton Keypad
Lock Type:
Cylindrical
Product Group:
Mechanical Locks
Product Subgroup:
Bored Locksets
Subcategory:
Cylindrical Locks
Reader Type:
Keypad
Commercial/Residential:
Commercial
Product Type:
Cylindrical Locks
Batteries:
AA (5)
Battery Operated:
Yes
Audit Trail:
Yes
User Codes:
2,000
Weather Proof:
Yes
Electronic:
Yes
Product Attribute:
Electronic Locks
Product Model:
DL3200
Door Thickness Range:
1-5/8" to 1-7/8"
Door Strike:
T-Standard and ASA
Product Category:
Electronic Locks
Backset (Distance):
2-3/4"
Department:
Door Hardware

Alarm Lock DL3200 US26D – Frequently Asked Questions

1) Will the Alarm Lock DL3200 fit a standard 1-3/4 inch commercial door?
Yes. The DL3200 keypad cylindrical lock covers a door thickness range of 1-5/8 inches to 1-7/8 inches, so the standard 1-3/4 inch commercial door sits in the middle of that range. Thinner doors, like the 1-3/8 inch interior doors common in older buildings, are outside it. Backset is 2-3/4 inches, with a 2-3/8 inch backset also available, so it drops into either of the two usual bored preps.
2) Do I need to change my strike when installing a DL3200 keypad lock?
Most likely not. The DL3200 ships with both strikes: a 1-1/8 x 2-3/4 inch T strike and a 1-1/4 x 4-7/8 inch ASA strike, which covers the two preps you find on commercial frames. The latchbolt has a 1/2 inch throw and is reversible, so it works either hand without reordering.
3) Can I key the DL3200 into my existing Schlage or Best master key system?
Yes, in several directions. The standard DL3200 comes with a 6-pin solid brass cylinder in SC1 keyway, and the supplied HW620 tailpiece lets it accept Schlage, Corbin Russwin CL, Sargent 480 series, ASSA 65-611, and Lori cylinders. The standard model also accepts 6 and 7 pin interchangeable cores from Best, Falcon, Arrow, KSP, Medeco Keymark and Kaba Peaks. If you run a large format core system, order the matching IC prep instead: IC (SFIC), IC-C for Corbin Russwin 6-pin LFIC, IC-M for Medeco, IC-R for Sargent, IC-S for Schlage FSIC, or IC-Y for Yale 6-pin LFIC. All IC versions ship less core.
4) Can the DL3200 keypad lock go on an exterior door in a cold climate?
Yes. The DL3200 is built weatherproof and rated to operate from -31F to +151F, which covers exterior gates, mechanical yards, and unconditioned stairwells. The all metal 12-button keypad holds up to outdoor use, and power comes from 5 AA alkaline batteries, so no wiring has to be run to the opening.
5) What is the difference between the Alarm Lock DL3200 and the SDC E75 keypad lockset?
Both are battery-powered keypad cylindrical locksets, but they fit different doors. The DL3200 covers 1-5/8 to 1-7/8 inch doors; the SDC E75 Series covers 1-3/4 to 2-1/8 inch. If your door is over 1-7/8 inches thick, the E75 is the one that fits. Below 1-3/4, the DL3200 is.
6) Will the Alarm Lock DL3200 fit the 1-3/8 inch doors in my older building?
No. The DL3200 starts at 1-5/8 inches, so a 1-3/8 inch door is under its range. For that thickness in a keyless cylindrical lock, the Lockey E985 or E995 electronic keypad lever locks cover 1-3/8 to 1-3/4 inch doors, and the Lockey 2830 mechanical pushbutton knob lock covers 1-1/8 to 2 inches.
7) What is the closest equivalent to the Alarm Lock DL3200 keypad cylindrical lock from another manufacturer?
The DL3200 is a battery-operated Grade 1 cylindrical lock with a keypad reader and 2,000 user codes. The closest peers in the same format are the SDC E75 Series battery-powered electronic cylindrical lockset with keypad access control, the TownSteel XCE-2000 Series electronic cylindrical lockset with keypad, and the BEST 9KZ EZ Series electronic keypad cylindrical lock with key override. All four are keypad-entry cylindrical locksets rather than trim-only or wireless readers, so a door prepped for one takes another of the same family. Door thickness is where they part: the DL3200 fits 1-5/8 inch to 1-7/8 inch, the E75 fits 1-3/4 inch to 2-1/8 inch, and the XCE-2000 fits 1-3/4 inch to 2 inch.
8) What keypad lock works on a 2 inch thick door if the DL3200 does not fit?
The DL3200 covers doors 1-5/8 inch to 1-7/8 inch, so a 2 inch leaf is past its range. The SDC E75 Series battery-powered keypad cylindrical lockset covers 1-3/4 inch to 2-1/8 inch and the TownSteel XCE-2000 Series keypad cylindrical lockset covers 1-3/4 inch to 2 inch, both of which take a 2 inch door. The TownSteel XCE-9000 Series classroom intruder keypad lockset carries the same 1-3/4 inch to 2 inch range. Measure the leaf before ordering, since these are the ranges the manufacturers state.
9) Which electronic cylindrical lock should I use instead of the DL3200 for a classroom door that has to lock down from inside?
The DL3200 is a keypad cylindrical lock with 2,000 user codes and multilevel user management, built around code entry rather than a lockdown function. For classroom intruder lockdown, the TownSteel XCE-9000 Series electronic classroom intruder cylindrical lockset with keypad and the TownSteel FCE-4000 Series RFID electronic intruder classroom cylindrical lockset are the classroom-function peers, both Grade 1 heavy duty. The XCE-9000 keeps keypad entry like the DL3200; the FCE-4000 reads RFID credentials instead.
10) What is the difference between the Alarm Lock DL3200 and the Schlage NDEB or CENTRIOS CEB100 Bluetooth locks?
They are not the same kind of access control even though all three are Grade 1 cylindrical locks. The DL3200 is a standalone keypad: users enter a 3 to 6 digit code on a 12 button metal keypad and the lock holds up to 2,000 codes on board. The Schlage NDEB is an ENGAGE Series wireless cylindrical lock with a 2.4 GHz Bluetooth Low Energy reader, mobile enabled, and the CENTRIOS CEB100 Series is a smart Bluetooth cylindrical lock in a privacy function. Credentials on those two come from a phone over Bluetooth rather than from a keypad, so if the building has no mobile credential program the DL3200 stands alone without one.
11) Can the SDC Electra 7200 be used in place of the Alarm Lock DL3200?
Not without a power run. The DL3200 is battery operated on 5 AA alkaline cells and needs no hardwired power at the opening. The SDC Electra 7200 Series is a solenoid controlled cylindrical lock with dual voltage 12/24VDC, meaning it is driven from an access control system and a power supply, and it fits doors 1-3/4 inch to 2 inch. It looks like a substitute because both are electrified cylindrical locks, but the 7200 is a controlled device on a wired system while the DL3200 makes its own access decision at the keypad.
12) What keypad lock has a key override like the DL3200 does?
The DL3200 standard cylinder version is built around a conventional 6 pin solid brass cylinder in SC1 keyway for key override, with IC prep versions offered for Schlage, Sargent, Corbin Russwin, Medeco and Yale cores. Among keypad peers, the BEST 9KZ EZ Series is an electronic keypad cylindrical lock with key override function, and the Lockey E985 electronic keypad lever lock carries remote control and key override, fitting doors 1-3/8 inch to 1-3/4 inch. The Lockey E995 is the same keypad lever family on the same 1-3/8 inch to 1-3/4 inch range but is described with remote control and battery power rather than key override.
13) I need a lock that takes small format interchangeable cores like the DL3200 IC version. What else is prepped for SFIC?
The DL3200 is available in an IC version with SFIC prep supplied less core, alongside LFIC preps for Corbin Russwin 6-pin, Medeco, Sargent, Yale 6-pin and Schlage FSIC. On the mechanical side, the Marks USA 175RF SFIC storeroom clutched lever is a small format IC lockset supplied less core with a 2-3/4 inch backset and ANSI strike in Grade 2 storeroom function, the same 2-3/4 inch backset the DL3200 uses. That makes it a straightforward companion where part of a facility keys to SFIC and only some doors need the keypad.
14) Does the Alarm Lock DL3200 need to be ordered handed?
No. The DL3200 is non-handed and the latchbolt is reversible, so one part number covers left and right hand openings. For a property manager standardizing across a building, that means a single stocked spare fits any door in the fleet.
15) How many users and how much access history does the DL3200 hold?
2,000 user codes, 3 to 6 digits each, with a 40,000 event audit trail carrying time and date stamps. Users sit in master, manager, supervisor and basic levels, so a site manager can add and delete tenants or subcontractors without handing out programming authority. Programming is done at the keypad or from a PC with a data transfer module.
16) What other Grade 1 electronic keypad cylindrical locks can I use instead of the Alarm Lock DL3200?
Several, and they split by how they are managed. The Schlage CO-100 is a Grade 1 standalone electronic cylindrical keypad lock with cylinder options for 1-3/4 inch doors. TownSteel's XCE-2000 Series is a Grade 1 keypad cylindrical lockset for 1-3/4 to 2 inch doors in a classroom function, and the XCE-9000 Series adds classroom intruder function on the same thickness range. The BEST 9KZ EZ Series is a keypad cylindrical lock with key override. Where the DL3200 earns its place is the 2,000 codes and 40,000 event audit trail, plus its weatherproof rating for exterior use.
17) I need credentials on a phone, not a PIN pad. Is the DL3200 the right lock?
No. The DL3200 is a pushbutton keypad lock, PIN entry only, with key override on the standard cylinder version. For mobile credentials, look at the Schlage NDEB, a Grade 1 ENGAGE Series cylindrical lock with a 2.4 GHz Bluetooth Low Energy reader for 1-5/8 to 2 inch doors, or the TownSteel FCE-2000 Series, a Grade 1 motorized cylindrical lockset with RFID on 1-3/4 inch doors.
18) If I do not need an audit trail, what is a simpler keyless lock than the Alarm Lock DL3200?
The DL3200 logs a 40,000 event audit trail and runs 2,000 user codes on 5 AA batteries, which is more program than a single back door usually needs. For keyless entry without electronics or batteries, the Lockey 1600 heavy duty mechanical keyless knob lock with adjustable backset and the Lockey 2830 mechanical pushbutton keyless knob lock with auto-locking passage function both use a mechanical pushbutton and fit doors 1-1/8 inch to 2 inch. Neither keeps a user list or an event log, so codes change at the lock rather than at a keypad menu or a PC.
19) Is the Kwikset SmartCode 912TNL an alternative to the DL3200 on a commercial door?
They serve different buildings. The DL3200 is rated Grade 1 and specified for commercial use, with BHMA Certified Grade 1 heavy duty cylindrical construction and UL Listed 10C positive pressure fire door listing. The Kwikset 912TNL ZW500 SmartCode electronic Tustin lever is a SmartCode Series keypad lever with Z-Wave technology in a keyed one side function, fitting doors 1-3/8 inch to 2 inch. The Z-Wave radio suits a home automation hub; where the opening is a fire rated commercial door, the Grade 1 UL listed body is what the spec calls for.
20) For an exterior door in a cold climate, what should I use instead of a standard electronic cylindrical lock?
The DL3200 is the weatherproof choice in this group: it is rated for operation from -31F to +151F and is listed weatherproof, which is what carries it onto an outdoor opening. Other Grade 1 electronic cylindrical peers such as the TownSteel XCE-2000 Series keypad lockset and the Schlage CO-100 standalone electronic cylindrical lock are specified as heavy duty Grade 1 units on the temperature-controlled side of the building, the CO-100 for a 1-3/4 inch door in privacy function. For a gate house, storage yard or exterior stair door, the DL3200 temperature range is the spec to point at.
21) The opening only needs a key, not a code. What mechanical Grade 1 cylindrical lock covers the same door?
Where no code entry is wanted, the mechanical Grade 1 cylindrical peers are the Dorma C150 heavy-duty cylindrical lock in entrance/office function and the Dorma C853 single cylinder entry lever, both covering doors 1-3/8 inch to 2-1/4 inch, and the Marks USA 195RAB entry clutched lever from the Grade 1 Survivor Series, supplied less core. All three are keyed mechanical locksets and hold no user codes or audit trail, unlike the DL3200 with its 2,000 user codes. The DL3200 uses a 2-3/4 inch backset with T-Standard and ASA strikes, so a swap to a mechanical lever should be ordered to the same backset and strike prep already in the door.
22) Is the Accentra nexTouch NTB613 the same thing as the Alarm Lock DL3200?
Both are Grade 1 cylindrical keypad locks with pushbutton entry, so they compete for the same opening, but they are separate platforms with separate programming. The Accentra NTB613 belongs to the nexTouch Series; the DL3200 is the Alarm Lock DL3200 Series and holds 2,000 user codes with a 40,000 event audit trail programmed at the keypad or from a PC with a data-transfer module. A facility standardizing its code management should stay within one series rather than mixing the two, since user lists and audit records do not carry across.
23) What looks like a substitute for an electronic keypad lock but will not secure the door?
Passage and dummy locksets share the cylindrical body and lever look but hold nothing. The Dorma C501 single dummy trim keyless lever lockset is Grade 2 dummy function, the Dorma CL701 is a Grade 2 single dummy non-keyed lever in passage function, and the Orca OCL2170 is a Grade 2 half dummy lever. Passage-only units such as the Cal-Royal CAL30 Grade 1 passage lockset and the Marks USA 195N Grade 1 Survivor Series passage lever latch the door but do not lock it. The DL3200 controls entry by code with 2,000 user codes and a stored audit trail, which is the function none of those provide.
24) How does the Schlage XE360M compare to the Alarm Lock DL3200 for a storeroom door?
The Schlage XE360M is a Grade 1 wireless tubular lock with an offline push button function and a smart mobile reader, in classroom/storeroom function, fitting a 1-3/4 inch door. The DL3200 is a Grade 1 cylindrical lock, not tubular, fitting 1-5/8 inch to 1-7/8 inch, with a 12 button metal keypad and 2,000 codes managed at the keypad or from a PC. The bore prep differs between a tubular and a cylindrical body, so the door prep decides this one before the credential type does.
25) Can I program the DL3200 without a laptop at the door?
Yes. Every function on the DL3200 programs through the all metal 12-button keypad, so a maintenance tech can add or delete a code standing at the opening. If you would rather manage codes and pull the audit trail from a desk, it also programs from a PC using a data transfer module.
26) For a restroom or office where the door just needs to be locked from inside, what replaces a keypad lock?
A privacy function lockset is the right part where no code list is needed. The Cal-Royal CAL20 is a Grade 1 extra heavy duty privacy lock in privacy/bed/bath function fitting doors 1-3/8 inch to 2 inch, and the Orca OCL240 is a Grade 2 medium duty privacy cylindrical lockset. The DL3200 is a commercial keypad lock carrying 2,000 user codes and an audit trail, which is capability a restroom door has no use for.
