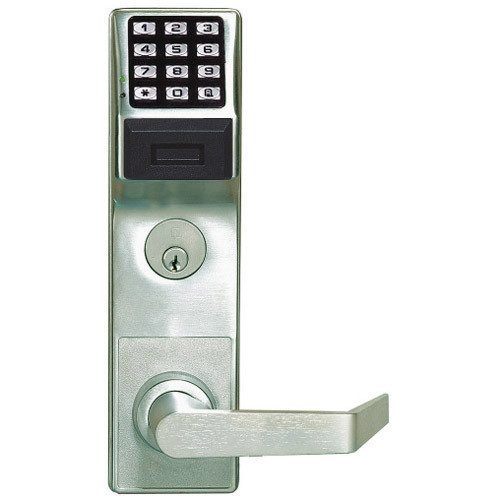

Alarm Lock DL6500 Series Networx Grade 1 Electronic Mortise Lock with 5,000 User Codes

Alarm Lock DL6500 Series Networx Grade 1 Electronic Mortise Lock with 5,000 User Codes

Professional Grade 1 Commercial Digital Access Control with Wireless Network Capability

The Alarm Lock DL6500 Series Networx delivers professional-grade digital access control with advanced wireless networking capabilities for commercial applications. This Grade 1 commercial mortise lock features a full-metal 12-button electronic keypad supporting up to 5,000 user PIN codes with door thickness range of 1-5/8" to 1-7/8" and 2-3/4" backset. Battery-operated design integrates seamlessly with Trilogy Networx systems via 802.11 or Ethernet connectivity, providing weatherproof construction and comprehensive audit trail functionality for demanding educational and commercial environments.

Professional Features & Benefits

• Grade 1 Commercial Rating: Meets the highest BHMA security standards for heavy-duty commercial applications with superior durability and reliability in high-traffic environments.
• 5,000 User Code Capacity: Supports extensive user management with 3-6 digit PIN codes, ideal for large facilities and multi-user environments requiring comprehensive access control.
• Electronic 12-Button Keypad: Full-metal construction ensures long-lasting performance and professional appearance with tactile feedback for reliable operation.
• Battery Operation: Self-contained power system provides reliable operation without hardwiring requirements, simplifying installation and reducing maintenance complexity.
• Door Compatibility: Accommodates door thickness range of 1-5/8" to 1-7/8" with standard 2-3/4" backset for versatile installation options.
• Wireless Network Integration: Trilogy Networx compatibility enables remote programming and audit trail retrieval via 802.11 or Ethernet connectivity for centralized management.
• Weatherproof Design: Protected construction suitable for various environmental conditions while maintaining reliable electronic operation and component integrity.
• Classroom Function: Specifically designed for educational environments with appropriate locking mechanisms and access control features for institutional security requirements.

Technical Specifications

• Application: Pushbutton Keypad
• Audit Trail: Yes
• Backset (Distance): 2-3/4"
• Commercial/Residential: Commercial
• Department: Door Hardware
• Door Strike: T-Standard and ASA
• Door Thickness Range: 1-5/8" to 1-7/8"
• Electronic: Yes
• Grade: Grade 1
• Keypad: Electronic, 12 metal buttons
• Lock Function: Classroom
• Lock Type: Mortise
• Power: Battery Operated
• Product Attribute: Electronic Locks
• Product Category: Electronic Locks
• Product Function: Classroom
• Product Group: Mechanical Locks
• Product Model: DL6500
• Product Subgroup: Mortise Locks and Trim
• Product Type: Mortise Locks
• Reader Type: Keypad
• Series: DL6500 Series
• Subcategory: Mortise Locks
• User Codes: 5,000
• Weather Proof: Yes

Installation & Operation

1. Verify door preparation meets mortise lock requirements for 1-5/8" to 1-7/8" door thickness and 2-3/4" backset dimensions.
2. Install the mortise lock body in the door preparation ensuring proper alignment and clearance for electronic components and future service access.
3. Mount the electronic keypad assembly and connect internal wiring following manufacturer instructions and applicable electrical codes.
4. Install battery power supply and verify proper voltage levels for reliable electronic operation throughout expected service intervals.
5. Configure user codes, access parameters, and classroom function settings according to facility security requirements and operational protocols.
6. Program network connectivity features including Trilogy Networx integration and audit trail settings as supported by system specifications.
7. Test electronic keypad functionality, classroom function operation, audit trail recording, and verify all features perform correctly before placing into service.

Professional Applications

• Educational Facilities and Classrooms
• Commercial Office Buildings
• Healthcare Institutions
• Government and Municipal Buildings
• Multi-Tenant Residential Properties
• Corporate Facilities
• Institutional Buildings

Why Choose Alarm Lock Quality?

Alarm Lock delivers proven reliability in commercial access control with Grade 1 BHMA construction and weatherproof design engineered for demanding commercial applications. The DL6500 Series combines traditional mortise lock durability with advanced electronic capabilities, providing comprehensive audit trail functionality and 5,000 user code capacity with battery-operated convenience for professional-grade security installations.
