Professional Network-Enabled Access Control Solution

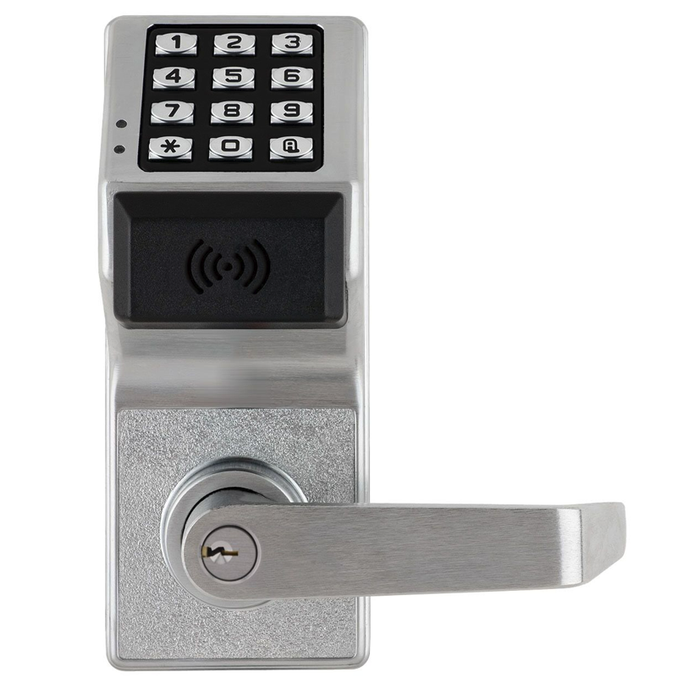

Double-sided stand-alone door lock providing controlled entry and exit at high-security locations such as airport security areas and police stations. Fully supports Version 2 Gateways and Expanders, features an HID compatible ProxCard reader, and a real-time clock/calendar with automatic Daylight Saving Time adjustment. The Alarm Lock PDL6300 Trilogy Networx delivers advanced double-sided access control with PIN and proximity card functionality from both sides of the door. This ANSI Grade 1 wireless lock supports up to 5000 users via 3-6 digit PINs or HID proximity cards, featuring a cylindrical deadlatch locking mechanism with 2 3/4" backset for doors 1 5/8" to 1 7/8" thick. Compatible with HID 125kHz proximity cards (26-48bit) and operates on four C-size batteries with 5+ year battery life.

Professional Features & Benefits

• High-Capacity User Management: Supports up to 5000 users via 3-6 digit PINs or HID proximity cards for comprehensive access control in large facilities.
• ANSI Grade 1 Construction: Heavy-duty wireless key card door lock rated for commercial applications with cylindrical deadlatch locking mechanism.
• Extended Battery Life: Operates on four C-size batteries (included) with unsurpassed 5+ year battery life, eliminating need for supplementary power supplies.
• Network-Wide Control: Execute emergency priority global lockdown or unlock from any Networx lock or network PC for comprehensive facility security management.
• Comprehensive Audit Trail: On-demand audit trail reporting with time/date stamp for prior 35,000 events plus 500 timed schedule capacity for user and group scheduling.
• Weatherproof Design: Weatherproof construction suitable for installation in harsh outdoor settings with architectural finish.
• Flexible Door Compatibility: Door thickness range 1 5/8" to 1 7/8" with 2 3/4" backset provided, field reversible handing for versatile installation.
• Key Override Options: Includes standard 6-pin cylinder with Schlage SC1 keyway, also compatible with Schlage, Corbin-Russwin CL, Sargent 480, ASSA 65-611, and Lori cylinders.

Technical Specifications

• Door Thickness: Fits 1 5/8" to 1 7/8"
• Backset: 2 3/4" (2 3/8" also available)
• Strike: 1 1/8" x 2 3/4" T strike & 1 1/4" x 4 7/8" ASA strike included
• Latchbolt: UL Listed, fire rated 3 hours, 1/2" throw reversible
• Handing: Non-handed
• Power: 4 AA batteries (included)
• Compliances: BHMA Certified Grade 1 heavy duty cylindrical lockset. UL Listed 10C Positive Pressure Specification. FCC Certified. ADA compliant levers
• Cylinder: 6 pin solid brass, SC1 keyway. Schlage, Corbin-Russwin CL, Sargent 480 series, ASSA 65-611 & Lori cylinders compatible with HW620 tailpiece (supplied)

Installation & Operation

1. Verify door preparation meets specifications for mortise lock installation including door thickness (1 5/8" to 1 7/8") and backset requirements (2 3/4" standard).
2. Install the cylindrical deadlatch mechanism in prepared mortise pocket and secure mounting hardware per manufacturer specifications.
3. Mount proximity card readers and 12-button keypad on both sides of door ensuring proper alignment and secure attachment.
4. Install four C-size batteries in designated compartment and verify power indicator shows proper operation.
5. Configure user codes, proximity card assignments, and network settings using DL-Windows software or offline programming at the keypad.
6. Test all access methods including PIN entry, proximity card reading, key override, and network communication functions.
7. Complete system integration with Networx Gateway (sold separately) for network-wide management capabilities. Refer to manufacturer documentation for complete programming and network setup instructions.

Professional Applications

• Commercial Office Buildings with Network Security Requirements
• Educational Facilities Requiring Comprehensive Access Control
• Healthcare Institutions with Audit Trail Compliance
• Government and Municipal Buildings
• Multi-Tenant Residential Properties
• Industrial Facilities with High-Security Zones
• Retail Establishments with Employee Access Management

Network Management Capabilities

The PDL6300 integrates seamlessly with existing Trilogy T2 and T3 systems, allowing customers to maintain their current DL-Windows database while adding Networx functionality. Manage up to 63 locks per AL-IME2 gateway and 2000 locks system-wide using gateways and wireless expanders. Bi-directional communication uses 128-bit AES encryption for secure data transmission, with VPN/remote capability for off-site system management.
