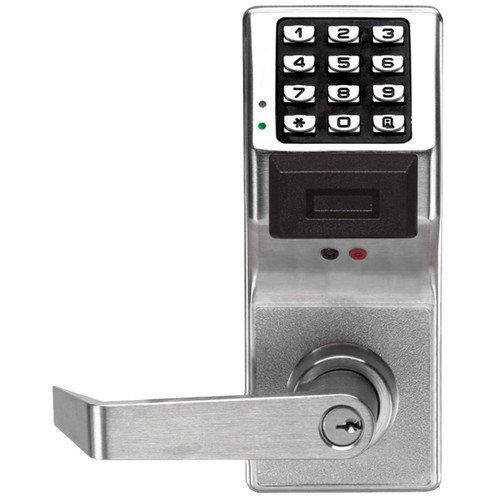

Alarm Lock PDL3000 Series Trilogy Grade 1 Electronic Cylindrical Lock with Proximity Card and Keypad Access
Model: ALA-PDL3000
Alarm Lock PDL3000 Series Trilogy Grade 1 Electronic Cylindrical Lock with Proximity Card and Keypad AccessProfessional Dual Authentication Electronic Lock with Advanced Audit TrailHigh-security,...
Alarm Lock
Starting at
$3,009.13
$1,239.29
Alarm Lock Trilogy DL3500DB Grade 1 Electronic Mortise Lock with Deadbolt - 300 User Codes
Model: ALA-DL3500DB
Alarm Lock Trilogy DL3500DB Grade 1 Electronic Mortise Lock with Deadbolt - 300 User CodesProfessional High Security Digital Access Control with Advanced ProgrammingGrade 1 mortise lock in Alarm...
Alarm Lock
Starting at
$2,425.21
$998.80

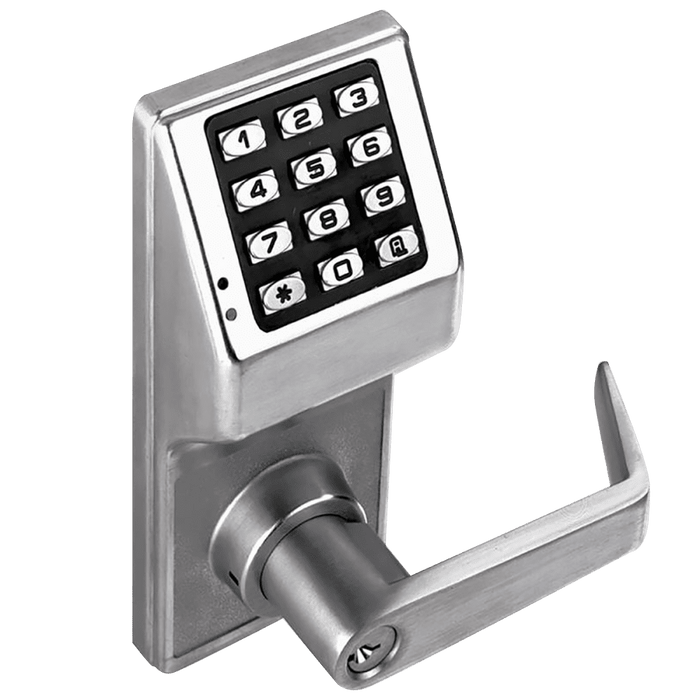

Alarm Lock DL2700 Series Grade 1 Electronic Cylindrical Lock with Digital Keypad and 100 User Codes
Professional Standalone Access Control with Battery-Powered Reliability
Grade 1, standalone electronic keypad lock designed for commercial and institutional applications, including schools, healthcare facilities, offices, and retail environments. Part of the Trilogy T2 series, it offers robust security features, user-friendly programming, and versatile installation options. The Alarm Lock DL2700 Series delivers Grade 1 commercial durability in a standalone electronic cylindrical lock designed for high-traffic commercial and institutional applications. This battery-powered digital keypad lock operates independently without network connectivity or external power, featuring a heavy-duty clutch mechanism and rugged metal keypad construction. With UL fire rating and weatherproof options, the DL2700 provides reliable access control for both indoor and outdoor environments requiring up to 200,000 operational cycles on 5 AA batteries.
Professional Features & Benefits
- Grade 1 Commercial Rating: Heavy-duty clutch mechanism prevents wear and ensures long-term reliability in high-traffic commercial environments.
- Extended Battery Life: 5 AA batteries provide up to 200,000 cycles with low-battery LED and audible alerts for maintenance planning.
- 100 User Code Capacity: Supports extensive user management with 100 user codes plus service codes and master code, all programmable directly at the keypad.
- UL Fire Rated Construction: 3-hour fire rating with 1/2" solid deadlocking latch meets stringent commercial fire safety requirements.
- Standard Door Compatibility: Fits ANSI 161 door prep with adjustable latch for doors 1-5/8" to 1-7/8" thick and 2-3/4" backset.
- Weatherproof Capability: Optional weather-resistant versions rated for temperatures from -31°F to 151°F for exterior applications.
- Heavy-Duty Construction: Rugged metal keypad construction and clutch mechanism engineered for demanding commercial applications.
- Manufacturer Warranty: 2 Year Limited warranty coverage against defects in materials and workmanship for added confidence and protection.
Technical Specifications
- Door Thickness: Fits 1 5/8" to 1 7/8"
- Backset: 2 3/4" (2 3/8" also available. Must specify when ordering)
- Strike: 1 1/8" x 2 3/4" T strike & 1 1/4" x 4 7/8" ASA strike included
- Latchbolt: UL Listed, fire rated 3 hours, 1/2" throw reversible
- Handing: Non-handed
- Power: 5 AA alkaline batteries (included)
- Keypad: All metal, 12 button. All functions programmed through keypad.
- Compliances: BHMA Certified Grade 1 heavy duty cylindrical lockset. UL Listed 10C Positive Pressure Specification. ADA compliant levers
- Cylinder: 6 pin solid brass, SC1 keyway. Schlage, Corbin-Russwin CL, Sargent 480 series, ASSA 65-611 & Lori cylinders compatible with HW620 tailpiece (supplied)
Installation & Operation
- Verify door preparation meets ANSI 161 requirements and confirm door thickness is within 1-5/8" to 1-7/8" range with 2-3/4" backset.
- Install the lock mechanism in the prepared door bore using manufacturer-provided templates and hardware.
- Install 5 AA batteries in the battery compartment and verify proper power connection with LED indicators.
- Program master code and up to 100 user codes directly at the keypad following manufacturer programming instructions.
- Configure operational settings including lock/unlock timing, audio feedback, and any available security features.
- Test all programmed codes and verify proper locking/unlocking operation, battery level indicators, and keypad responsiveness.
- Complete final inspection and document programmed codes. Refer to manufacturer documentation for complete programming instructions and troubleshooting.
Professional Applications
- Commercial Office Buildings
- Educational Facilities
- Healthcare Institutions
- Government and Municipal Buildings
- Industrial and Warehouse Facilities
- Multi-Tenant Residential Properties
- Remote Locations Without Wired Infrastructure
Why Choose Alarm Lock Quality?
Alarm Lock DL2700 Series combines proven Grade 1 commercial durability with advanced electronic access control technology. The UL fire rated construction with 3-hour fire rating and heavy-duty clutch mechanism rated for up to 200,000 operational cycles demonstrates exceptional reliability for demanding commercial environments. With 2 Year Limited warranty coverage and weatherproof options, this standalone system delivers professional-grade security without the complexity of networked systems.
Manufacturer Resources
DL2700 Technical Specifications
Product Specs
- Series:
- DL2700 Series
- Grade:
- Grade 1
- Standard Cylinder:
- Conventional Cylinder
- Power:
- Battery Operated
- Warranty:
- 2 Year Limited
- Application:
- Pushbutton Keypad
- Lock Type:
- Cylindrical
- Product Group:
- Mechanical Locks
- Product Subgroup:
- Bored Locksets
- Subcategory:
- Cylindrical Locks
- Reader Type:
- Keypad
- Commercial/Residential:
- Commercial
- Product Type:
- Cylindrical Locks
- Batteries:
- AA (5)
- Battery Operated:
- Yes
- Audit Trail:
- No
- User Codes:
- 100
- Weather Proof:
- Optional
- Electronic:
- Yes
- Product Attribute:
- Electronic Locks
- Product Model:
- DL2700
- Door Thickness Range:
- 1-5/8" to 1-7/8"
- Door Strike:
- T-Standard and ASA
- Product Category:
- Electronic Locks
- Backset (Distance):
- 2-3/4"
- Collection:
- DL2700 Series
- Department:
- Door Hardware
Alarm Lock DL2700WP US26D – Frequently Asked Questions
1) What applications is the Alarm Lock DL2700 series designed for?
The DL2700 series is designed for commercial and institutional applications requiring standalone access control. Ideal for offices, schools, healthcare facilities, and other commercial buildings where keyless entry is needed without hardwired power.
2) What door types and thicknesses does this lock accommodate?
The DL2700 fits standard commercial doors with 1-3/8" to 1-3/4" thickness. Compatible with wood, metal, and composite doors. Verify your door preparation matches the lock's 2-1/8" bore and standard backset requirements.
3) How do I determine the correct handing for this cylindrical lock?
Stand outside the door (secure side). If hinges are on the right, it's right-handed. If hinges are on the left, it's left-handed. The DL2700 series typically requires field specification of handing when ordering.
4) What finish options are available for the DL2700 series?
Common finishes include satin chrome, bright brass, and oil-rubbed bronze. Finish availability varies by model. Check the specific model number for available finishes and coordinate with existing hardware.
5) What power source does this digital pushbutton lock use?
The DL2700 operates on battery power, typically using standard alkaline batteries. Battery life varies based on usage frequency. No hardwired power connection required, making installation simpler.
6) How many user codes can be programmed into the DL2700?
Code capacity varies by specific model within the DL2700 series. Most models support multiple user codes plus a master code. Consult the programming manual for your specific model's capacity and code length options.
7) What grade rating does this lock carry?
The DL2700 series typically carries commercial-grade ratings suitable for medium to heavy-duty applications. Specific ANSI/BHMA grade ratings depend on the exact model configuration. Verify grade requirements for your application.
8) What components are included with the lock?
Standard package includes the lock body, exterior keypad assembly, interior lever or knob, batteries, mounting hardware, and programming instructions. Strike plate and installation template are typically included.
9) What are the basic installation requirements?
Installation requires standard door preparation with 2-1/8" bore hole and proper backset. Door frame must accommodate the strike plate. Follow manufacturer's template for precise measurements. Professional installation recommended for commercial applications.
10) How do I maintain and adjust the DL2700?
Regular maintenance includes battery replacement, cleaning the keypad, and checking mechanical operation. Most models provide low battery warnings. Adjustments for door alignment and strike fit may be needed over time.
11) What other Alarm Lock models are similar to the DL2700?
Related models include other DL series locks and PDL series proximity locks from Alarm Lock. Consider the DL2800 or DL3000 series for different feature sets. Browse our Alarm Lock selection for alternatives.
12) What environmental conditions can this lock handle?
The DL2700 is designed for interior applications in standard commercial environments. Avoid exposure to extreme temperatures, moisture, or corrosive conditions. For exterior applications, verify weather resistance ratings and consider additional protection.
