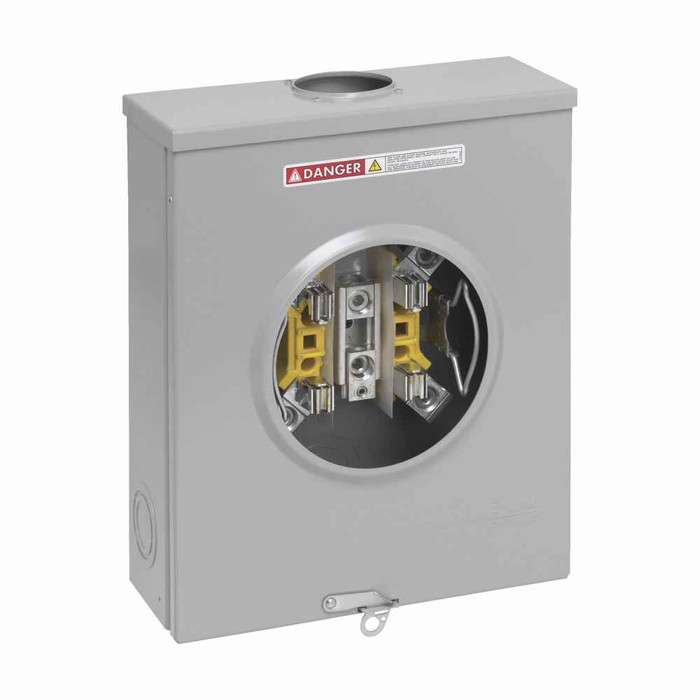

Eaton B-Line series single meter sockets, AW Hub top provision, 100 A, Overhead, 4 jaws, Ringless, 3, Steel, ANSI 61 paint, Side, 1 pole, 3 wires, #14 AWG-2/0 AWG line lug size, #14 AWG-2/0 AWG load lug size, None
Manufacturer Resources
Product Specs
- Amperage Rating:
- 100A
- Bypass:
- None
- Certifications:
- UL Listed
- Cover Door Type:
- Ringless
- Degree Of Protection:
- 3
- Feed Type:
- Overhead
- Finish:
- ANSI 61 paint
- Line Lug Size:
- #14 AWG-2/0 AWG
- Load Lug Size:
- #14 AWG-2/0 AWG
- Material:
- Steel
- Mounting Method:
- Side
- Number Of Jaws:
- 4
- Number Of Poles:
- 1
- Number Of Wires:
- 3
- Product Height:
- 12.125 in
- Product Length Depth:
- 5.25 in
- Product Weight:
- 8.715 lb
- Product Width:
- 8.25 in
- Special Features:
- AW Hub top provision
