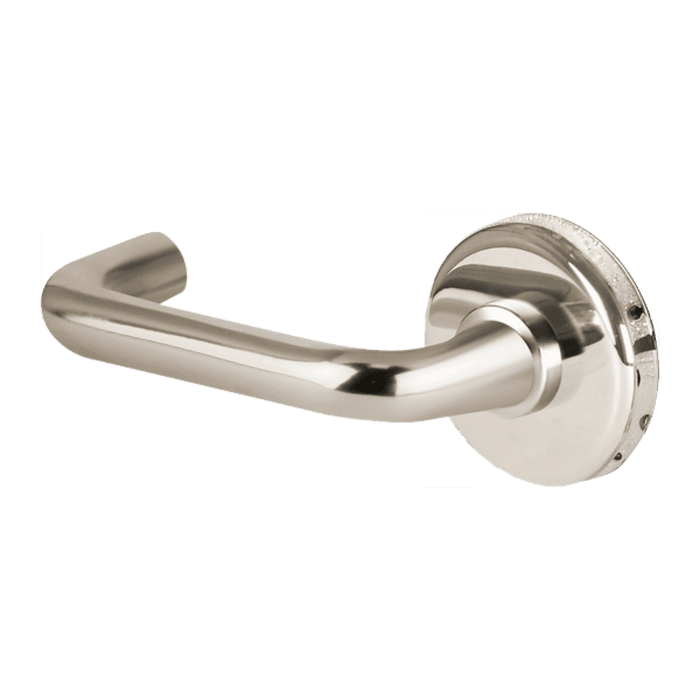

BEST 45H Series Heavy Duty Mortise Lock with Double Dummy Function and Rose Trim

BEST 45H Series Heavy Duty Mortise Lock with Double Dummy Function and Rose Trim

Professional-Grade Mortise Lock Solution for Commercial Applications

The BEST 45H Series Heavy Duty Mortise Lock delivers exceptional durability and security for demanding commercial environments. This non-keyed double dummy function lock features a 2-3/4" backset and is designed for doors 1-3/4" thick with available thick door configurations up to 5". Built with 0.095" cold rolled steel construction and stainless steel components, this lock meets ANSI A156.13 Series 1000 Grade 1 Operation and Strength standards.

Professional Features & Benefits

• Heavy-Duty Steel Construction: 0.095" cold rolled steel case, cover, and armored front provide exceptional strength and durability for high-traffic commercial applications.
• Superior Latch Design: Solid one-piece stainless steel anti-friction latch provides 50% more surface contact with strike for enhanced strength and security.
• Enhanced Case Integrity: Four case cover screws at each corner plus interlocking armored front and cover design at the latch ensure maximum structural stability.
• Precision Engineering: Roller bearing hub mechanism provides smooth, wear-resistant operation with enhanced cycle life and reduced strike wear.
• Field Reversible Design: Reversible latch rotates 180 degrees for easy handing change without opening case, with non-handed cylinder retainer for installation flexibility.
• Professional Grade Certification: ANSI A156.13 Series 1000 Grade 1 Operation and Strength, Grade 2 Security compliance for commercial building requirements.
• Antimicrobial Finish Options: Available with UltraShield antimicrobial protected coating (626AM, 630AM) for healthcare, education, and food service applications.
• Self-Aligning Installation: Armored front self-aligns with door bevel during installation, with self-aligning trim mechanism for fast, accurate mounting.

Technical Specifications

45H Series –The design and operation of the BEST® mortise lock meets the intent
of the standard for ANSI A117.1 section 404.2.6.
Builders Hardware Manufacturers Association:
45H Series –ANSI A156.13, Series 1000, Grade 1 Operation and Strength, Grade 2 Security. To meet Grade 1 Security, a drill resistant core
(1CD, 1CDP, 1CDF, or 1CDX) must be used with escutcheon trims, and 1EK7K4 high security cylinder must be used with sectional trims.
47H Series – ANSI A156.13, Series 1000, Grade 1 Operational, Strength, and Security

Auxiliary bolt – Stainless steel, non-handed.
Backset – 2-3/4"
Case –0.095” cold rolled steel, 5- 7/8" H x 7/8" D x 4-1/16" W. Steel is zinc dichromate plated for corrosion protection.
Deadbolt – Stainless steel, 1" throw.
Latchbolt –Solid stainless steel, 3/4" throw. Latch is oil-impregnated for anti-friction operation. Reversible without opening case.
Strike – For complete strike package spec’s see page 5.
Door Thickness – Standard lock configuration designed for doors 1-3/4" thick. Thick door configuration available for doors up to
5" thick (specify thickness when ordering).
Faceplate –Stainless steel, brass or bronze material, 8" H x 1-1/4" W x 1/16" T. Lock face automatically adjusts to proper bevel during
installation.
Products protected by one or more of the following patents: 4,873,853 5,590,555 5,794,472
Finishes –
• 605 - bright brass, clear coated
• 606 – satin brass, clear coated
• 611 – bright bronze, clear coated
• 612 – satin bronze, clear coated
• 613* – oxidized satin bronze, oil rubbed
• 618 – bright nickel plated, clear coated (brass base material)
• 619 – satin nickel plated, clear coated (brass base material)
• 622 – flat black coated (brass base material) 625 – brightchromium plated (brass base material)
• 626 – satin chromium plated (brass base material)
• 629 – bright stainless steel
• 630 – satin stainless steel
• 690* – dark bronze coated (brass base material)
*613 finish is designed to wear over time, providing an “antique” appearance.
*690 finish will continue as a dark brown appearance over time.
Antimicrobial Finish –
• 626AM – satin chrome plated with UltraShield™ antimicrobial protected coating
• 630AM – satin stainless steel with UltraShield™ antimicrobial protected coating
The BEST UltraShield finish inhibits the growth of bacteria and other microbes on the surface of the hardware.
NOTE: BEST UltraShieldTM option is recommended for use on any hardware application where product cleanliness is a high priority. i.e;.
Hospital/Healthcare, Elderly Care, Education, Transportation, Food-Service, Hospitality.

Installation & Operation

1. Review manufacturer specifications and verify door preparation requirements including door thickness (standard 1-3/4" or thick door up to 5"), mortise pocket dimensions, and handing requirements.
2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and frame surfaces for proper backset alignment.
3. Prepare door mortise pocket and drill required holes per manufacturer specifications, ensuring proper clearance for case dimensions.
4. Install mortise case into door pocket and secure with provided screws, allowing armored front to self-align with door bevel during installation.
5. Mount trim components using self-aligning trim mechanism and adjust for proper lever operation and return spring function.
6. Test lock operation to verify smooth lever movement, proper latch engagement, and alignment with strike. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

• Commercial Office Buildings
• Educational Facilities
• Healthcare Institutions
• Retail Establishments
• Industrial and Warehouse Facilities
• Multi-Tenant Residential Properties
• Government and Municipal Buildings

Why Choose BEST Quality?

BEST 45H Series mortise locks deliver professional-grade reliability with 0.095" cold rolled steel construction and precision-engineered stainless steel components. The solid one-piece anti-friction latch provides 50% more surface contact for superior strength, while roller bearing hub mechanisms ensure smooth, wear-resistant operation. Engineered for demanding commercial applications where dependable performance and ANSI Grade 1 compliance are essential.
