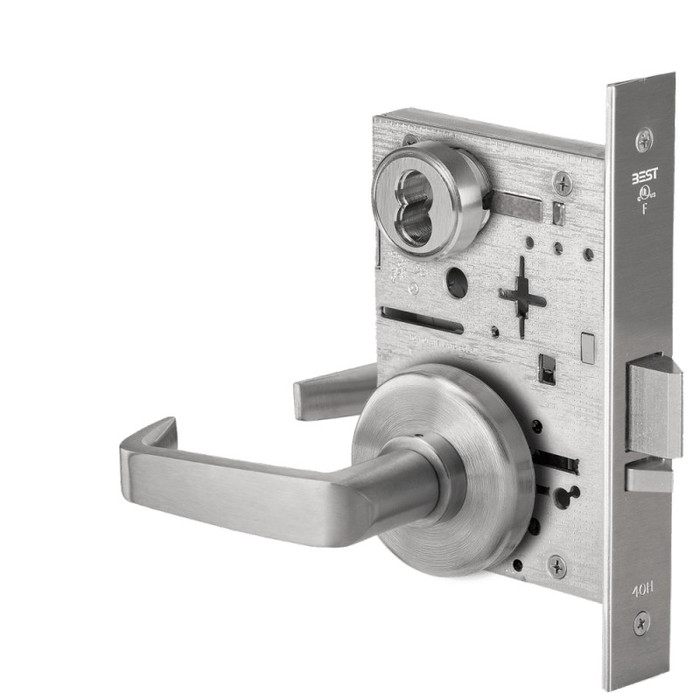

The BEST 45H Series Heavy Duty Mortise Lock delivers commercial-grade security with classroom holdback functionality and rose trim design. Featuring a 2-3/4" backset and 8" H x 1-1/4" W x 1/16" T stainless steel faceplate, this Grade 1 mortise lock is engineered for demanding commercial applications. The solid one-piece stainless steel anti-friction latch provides 50% more surface contact with strike for superior strength, while the 0.095" cold rolled steel case construction ensures exceptional durability.

Professional Features & Benefits

• Heavy-Duty Construction: 0.095" cold rolled steel case, cover, and armored front provide exceptional strength and durability for high-traffic commercial applications.
• Enhanced Latch Design: Solid one-piece stainless steel anti-friction latch delivers 50% more surface contact with strike for superior strength and security with precision-engineered curve for enhanced cycle life.
• Grade 1 Performance: ANSI A156.13 Series 1000 Grade 1 Operation and Strength, Grade 2 Security certification ensures professional-grade reliability and compliance.
• Reversible Operation: Non-handed design with reversible latch that rotates 180 degrees for easy handing change without opening case, plus four position hub toggle for flexible configuration.
• Roller Bearing Mechanism: Smooth, wear-resistant operation with lever return spring mechanism located in trim for enhanced protection against lever droop.
• Armored Front Protection: Completely surrounds latch and deadbolt providing increased lateral strength with staked assembly design for self-alignment during installation.
• Enhanced Security Features: Solid machined cylinder rings with wavy washer provides resistance to wrenching, plus cylinder security screw prevents removal without first removing interchangeable core.
• Antimicrobial Options: Available with UltraShield antimicrobial protected coating (626AM and 630AM finishes) for healthcare and high-cleanliness applications.

Technical Specifications

45H Series –The design and operation of the BEST® mortise lock meets the intent
of the standard for ANSI A117.1 section 404.2.6.
Builders Hardware Manufacturers Association:
45H Series –ANSI A156.13, Series 1000, Grade 1 Operation and Strength, Grade 2 Security. To meet Grade 1 Security, a drill resistant core
(1CD, 1CDP, 1CDF, or 1CDX) must be used with escutcheon trims, and 1EK7K4 high security cylinder must be used with sectional trims.
47H Series – ANSI A156.13, Series 1000, Grade 1 Operational, Strength, and Security

Auxiliary bolt – Stainless steel, non-handed.
Backset – 2-3/4"
Case –0.095” cold rolled steel, 5- 7/8" H x 7/8" D x 4-1/16" W. Steel is zinc dichromate plated for corrosion protection.
Deadbolt – Stainless steel, 1" throw.
Latchbolt –Solid stainless steel, 3/4" throw. Latch is oil-impregnated for anti-friction operation. Reversible without opening case.
Strike – For complete strike package spec’s see page 5.
Door Thickness – Standard lock configuration designed for doors 1-3/4" thick. Thick door configuration available for doors up to
5" thick (specify thickness when ordering).
Faceplate –Stainless steel, brass or bronze material, 8" H x 1-1/4" W x 1/16" T. Lock face automatically adjusts to proper bevel during
installation.
Products protected by one or more of the following patents: 4,873,853 5,590,555 5,794,472
Finishes –
• 605 - bright brass, clear coated
• 606 – satin brass, clear coated
• 611 – bright bronze, clear coated
• 612 – satin bronze, clear coated
• 613* – oxidized satin bronze, oil rubbed
• 618 – bright nickel plated, clear coated (brass base material)
• 619 – satin nickel plated, clear coated (brass base material)
• 622 – flat black coated (brass base material) 625 – brightchromium plated (brass base material)
• 626 – satin chromium plated (brass base material)
• 629 – bright stainless steel
• 630 – satin stainless steel
• 690* – dark bronze coated (brass base material)
*613 finish is designed to wear over time, providing an “antique” appearance.
*690 finish will continue as a dark brown appearance over time.
Antimicrobial Finish –
• 626AM – satin chrome plated with UltraShield™ antimicrobial protected coating
• 630AM – satin stainless steel with UltraShield™ antimicrobial protected coating
The BEST UltraShield finish inhibits the growth of bacteria and other microbes on the surface of the hardware.
NOTE: BEST UltraShieldTM option is recommended for use on any hardware application where product cleanliness is a high priority. i.e;.
Hospital/Healthcare, Elderly Care, Education, Transportation, Food-Service, Hospitality.

Installation & Operation

1. Review manufacturer specifications and verify door preparation requirements including door thickness (standard 1-3/4" or thick door configuration up to 5"), mortise pocket dimensions, and handing requirements.
2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and frame surfaces for the 2-3/4" backset configuration.
3. Prepare door mortise pocket and drill required holes for cylinder, trim mounting, and through-bolts per manufacturer specifications.
4. Install case assembly into mortise pocket and secure with provided fasteners, ensuring armored front self-aligns with door bevel during installation.
5. Install trim components using self-aligning trim mechanism for accurate positioning and secure with appropriate hardware.
6. Configure four position hub toggle to determine locking operation for each hub (always locked, always unlocked, or locked by key) based on application requirements.
7. Test lock operation including latch and deadbolt function, key operation, and lever return mechanism. Verify proper alignment and smooth operation throughout full range of motion. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

• Educational Facilities and Classroom Security
• Commercial Office Buildings
• Healthcare Institutions
• Government and Municipal Buildings
• Multi-Tenant Residential Properties
• Industrial and Warehouse Facilities
• Retail Establishments
