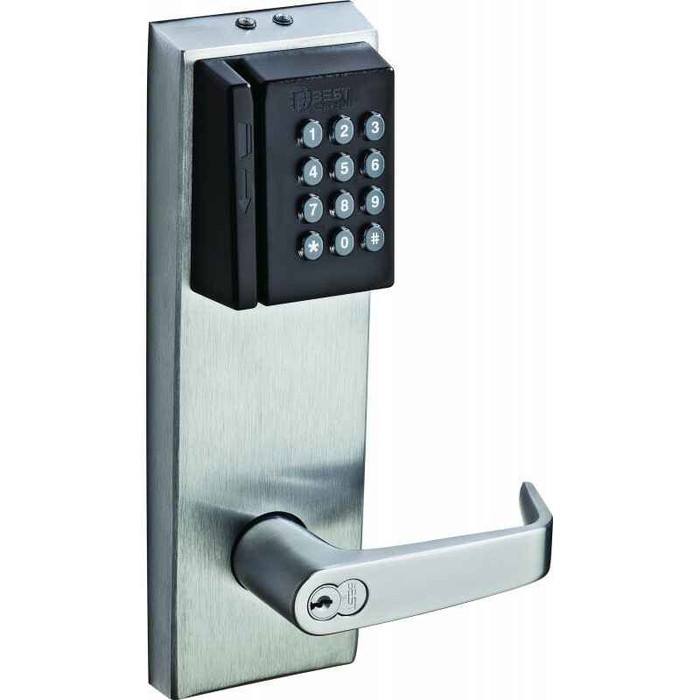

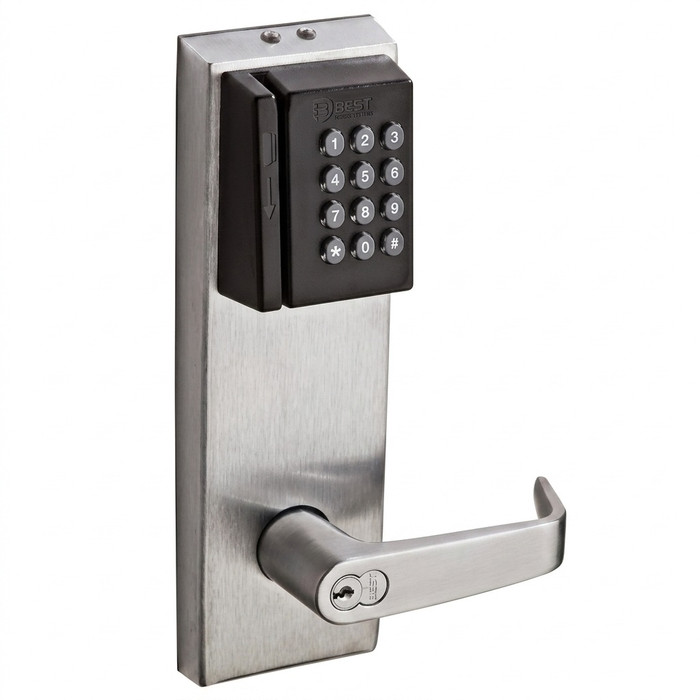

BEST 9KM IDH MAX HID PROXIMITY READER CYLINDRICAL LOCK
The IDH MAX offers convenience and efficiency for your electrified lock applications. Instead of separately installing reader devices, electrified strikes, door contacts and request-to-exit devices, you can now install just the IDH MAX in cylindrical or mortise lock applications. With IDH MAX, all of the formerly separate equipment needed to control access are self-contained in a single installation, drastically reducing the complexity of multiple wire runs. There are two IDH MAX options available, 9KM IDH Max.
You can let BEST show you how to MAXimize your access control system with the IDH MAX! For the name and location of your local office,
visit our web site at www.bestaccess.com. IDH MAX and W series locks are compatible with BEST's NT500 and most other Access Control
Systems.
FEATURES & BENEFITS
IDH Max Features
Includes latch status, door status and request to exit features
NOTE: Latch Status not available on Deadbolt functions
- Requires only one 4 conductor wire run
- Reduces number of components installed and visible at the door (PIR, RQE push buttons and door contacts)
- Installation time is reduced
- The RQE switch senses the inside lever/knob rotation
- All of the door components are housed in one manufacturer’s hardware
- With the elimination of components, only the lockset is visible at the door
- The reader is integrated into the lockset escutcheon
- Available in magnetic stripe and proximity readers
- Available in all popular lever/knob styles and finishes
- Operates with BEST interchangeable core as a mechanical override
- Integrates with many manufacturer’s on-line EAC equipment
Cylindrical Features
- Non-handed levers allow for ease of installation
- Lock chassis meets the requirements as listed in the ANSI/ BHMA A156.2, standard for Series 4000 Grade 1 locks
- UL listed for GYQS Electrically controlled single point licks or latches for use on 3 hr, A label single doors (4' x 10') GYJB. The listing applies for both U.S. and Canadian applications
- Request-to-exit sensor positioned inside lock trim
- The ISC (Intelligent System Controller) is embedded behind the escutcheon secured and out of site
- Request-to-exit and door contact sensors are standard in IDH MAX cylindrical locks
Magnetic Stripe Electronic Lock Features
- Durable material has teflon-like characteristics for increased life and wear resistance
- Variable read rate allows for easy usage
STANDARD SPECIFICATIONS
Mechanical
Materials – Internal parts are brass, zinc or corrosion-treated steel.
Chassis – 2-1/16" diameter to fit 2-1/8" diameter hole in door.
Strike – Brass, bronze, or stainless steel base material; STK 2-3/4" H standard, S3 4-7/8" H. Fits standard door frame cut out as specified in ANSI A115.1. Strike box supplied as standard.
Backset – 2-3/4" standard, 3-3/4" and 5" available.
Door Thickness – Standard lock configuration designed for doors 1-3/4" – 2- 1/4" thick.
Installation – Lock dimensions requires modified door prep ANSI A156.2 Series 4000, Grade 1 to mount housing.
Latchbolt – 9/16" throw.
Escutcheons – 10-1/2" H x 3-5/16" W x 1" D (1" at the top, sloping down to 3/4" at the bottom).
Knobs – Diameter: 2-1/8" Projection on door: 2-7/8" #4, #6 knobs: Material machined from brass or bronze.
Lever handle – Made from high-quality zinc alloy. Body is approximately 1-5/8" in diameter: Handle is approximately 4-3/4" in length (from center-line of chassis). Lever styles 14 and 15 return to a minimum of 1/2” of door surface. Lever 16 does not return..
Electronic
Maximum current draw – 850 MilliAmps, for 50 milliseconds Typical Current Draw (hold condition) – 550 milliAmps
Voltage – 10.2 to 13.2 V (DC only)
Magnetic Stripe Card Reader:
Read Rate – 5 inches per second to 50 inches per second.
Card Thickness – ISO standard .030" ± .003 thick. Compliance to FCC, Canadian, and European EMC requirements; for interference FCC Class A
digital apparatus.
Proximity Reader – ANSI/BHMA A156.25 compliant, Compatible with Motorola / Indala and HID proximity cards, ABA and Wiegand output
Weatherproof bezel and gasket provide protection for outdoor use. (Usable in most environmental/exterior applications).
Card Read Range – 0 – 3 inches. Compliance to US FCC, Canadian FCC, and European EMC requirements
ESD Protection – 15 Kilo Volt
Finishes
605 – bright brass, clear coated
606 – satin brass, clear coated
611 – bright bronze, clear coated
612 – satin bronze, clear coated
613 – oxidized satin bronze, oil rubbed
619 – Satin Nickel
622 – Matte Black
625 – bright chromium plated
626– satin chromium plated
626AM– Satin Chrome Antimicrobial
690 – dark bronze coated
DOWNLOAD & RESOURCES
Manufacturer Resources
Product Specs
- Series:
- IDH MAX
- Subcategory:
- Readers, Keypads and Credentials
- Duty Level:
- Heavy Duty
- Standard Latch:
- 9/16" Throw
- Standard Strike:
- 2-3/4" x 1-1/8" with Curved Lip
- Standard Cylinder:
- SFIC Prep Less Core
- Handle Type:
- Lever
- Warranty:
- 3 Year
- Keyed:
- Yes
- Product Group:
- Electronic Access Controls
- Product Subgroup:
- Readers, Keypads and Credentials
- Electronic:
- Yes
- Commercial/Residential:
- Commercial
- Function Description:
- Electrically Locked, Electrically Unlocked
- Lock Type:
- Cylindrical
- Product Type:
- Cylindrical Locks
- Product Attribute:
- Cylindrical Locks
- Product Model:
- 9KM
- Door Hand Direction:
- Non-Handed
- Product Category:
- Electronic Access Controls
- Backset (Distance):
- 2-3/4"
- Department:
- Door Hardware
