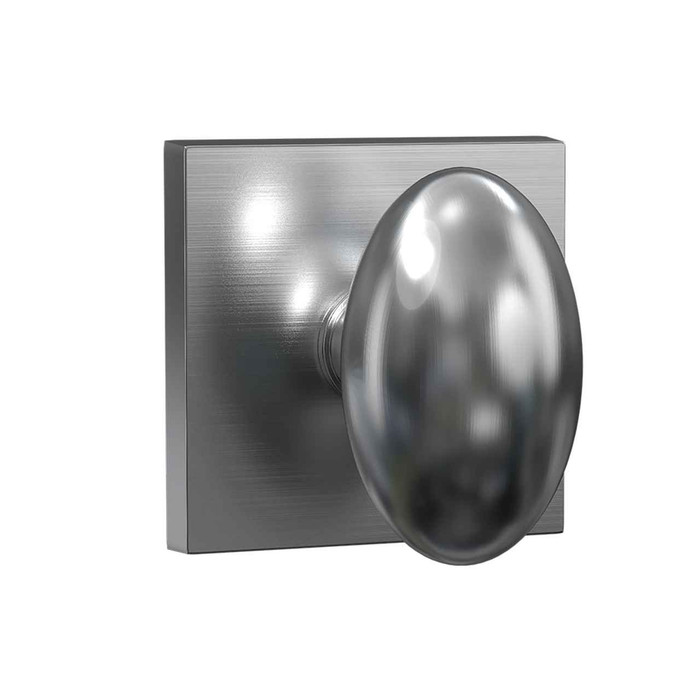

Bravura Oxford with Square Trim Privacy Knobset, Grade 2

Bravura Oxford with Square Trim Privacy Knobset, Grade 2

Experience true luxury with high quality Bravura door hardware. This piece exceeds ANSI rated grade 2 standards on the internal mechanics for long lasting smooth quality you can feel with every use.

Privacy Function: Privacy door hardware features a locking mechanism on the interior for use on bedroom and bathroom doors where locking is needed. The exterior side features a small pin hole to unlock the door hardware from the outside.

Features

• Solid Brass
• Reversible
• Smooth operation
• Grade 2
• Residential

Specifications

• Door Prep
  • 2-1/8" cross bore
  • 1" edge bore
  • 1" x 2-1/4" latch face
• Door Thickness
  • 1-3/8” ~ 2”, 2-1/4” & 2-1/2” Extension Kits Available
• Latches
  • Backset: 2-3/8” Standard and 2-3/4” Optional
  • Faceplate: 1” x 2-1/4” round corner
  • Bolt: 1/2” Solid Brass throw
  • Drive-in or UL Available
• Strikes
  • Supplied with full lip round corner (9103) and square corner strikes
    (9102)

Technical Specification Download
