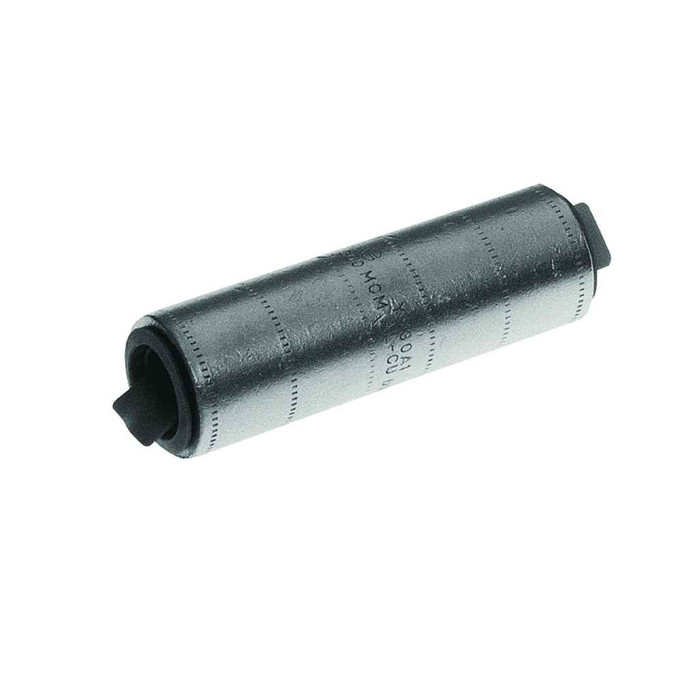

Burndy Compression Splice Aluminum 8 AWG Tin Plated HYLINK

Burndy Compression Splice Aluminum 8 AWG Tin Plated HYLINK

Professional Electrical Compression Splice Connector

The Burndy Compression Splice Aluminum 8 AWG delivers superior electrical connection performance for aluminum to aluminum, aluminum to copper, and copper to copper conductor combinations. This 8 AWG 35kV compression splice provides exceptional conductivity and reliability designed for professional electricians, electrical contractors, and utility professionals, offering the proven performance and innovation that professionals expect from America's premier electrical connection manufacturer.

Professional Features & Benefits

Electrical Performance Excellence

• 8 AWG Conductor Compatibility - Accommodates both aluminum and copper stranded conductors with precise 8 AWG sizing for reliable electrical connections
• 35kV Voltage Rating - High voltage capability with 600V minimum rating ensures safe operation in demanding electrical applications
• High-Conductivity Aluminum Construction - Manufactured from wrought aluminum with heavy duty wall thickness for superior electrical performance and low resistance
• Electro-Tin Plated Finish - Provides durable long-lasting corrosion resistance and enhanced electrical conductivity

Installation & Connection Features

• Internally Bevelled Barrel Design - Chamfered barrel style with long barrel type provides easy cable entry and proper conductor positioning
• Solid Center Stop with PENETROX - Prefilled with oxide inhibiting compound ensures proper conductor insertion and forces compound between wire strands
• Color-Coded Blue End Caps - Prevents contamination and provides easy wire size identification with die index 374 marking

Professional Quality Standards

• UL Listed Certification - Meets UL468A-468B standards for aluminum conductor applications ensuring electrical safety compliance
• Temperature Rating 194°F - Reliable operation in demanding temperature conditions for industrial and utility applications

Technical Specifications

Conductor Size: 8 AWG aluminum and copper stranded, Voltage Rating: 600V minimum/35kV maximum, Material: High-conductivity wrought aluminum, Plating: Electro-tin plated, Overall Length: 1.44 inches, Outside Diameter: 0.30 inches, Strip Length: 5/8 inches, Color Code: Blue, Die Index: 374, Temperature Rating: 194°F, Standards: UL468A-468B, Barrel Style: Chamfered with long barrel type, Prefilled: PENETROX oxide inhibitor

Installation & Usage

1. Strip conductors to 5/8 inch length ensuring clean, square cuts
2. Remove color-coded end caps and inspect connector for contamination
3. Insert first conductor until it reaches the solid center stop
4. Insert second conductor from opposite end until center stop contact
5. Position compression tool with die index 374 at marked crimp location
6. Apply single compression crimp to form homogeneous electrical connection

Professional Applications

Ideal for:

• Utility Power Distribution - Primary and secondary distribution splicing for aluminum and copper conductor combinations
• Industrial Electrical Systems - Motor connections, transformer splicing, and heavy-duty electrical equipment terminations
• Commercial Building Wiring - Feeder splicing, panel connections, and electrical service entrance applications
• Electrical Contractor Applications - Professional splicing for renovation, expansion, and new construction projects
• Underground Distribution - Direct burial applications with proper enclosure for utility and industrial installations
• Aluminum to Copper Transitions - Safe and reliable connections between dissimilar conductor materials
• High Voltage Applications - 35kV rated connections for utility and industrial high voltage systems
• Temperature Critical Environments - 194°F rating suitable for demanding industrial and utility conditions

HYLINK Technology Advantage

The HYLINK series represents Burndy's advanced compression splice technology, featuring high-conductivity wrought aluminum construction with heavy-duty wall thickness for superior electrical and mechanical performance. The electro-tin plating provides exceptional corrosion resistance while the internally bevelled barrel design ensures easy installation and optimal conductor contact. Prefilled PENETROX oxide inhibitor eliminates the need for field application while providing long-term connection reliability.

Why Choose Burndy Quality?

With over a century of electrical connection innovation, Burndy continues to set industry standards for professional electrical connectors and termination equipment. This UL Listed compression splice demonstrates Burndy's commitment to electrical safety, featuring proven HYLINK technology trusted by electricians, electrical contractors, and utility professionals worldwide. Every connector undergoes rigorous testing to ensure compliance with UL468A-468B standards, delivering the reliability and performance that electrical professionals demand for critical power distribution applications.
