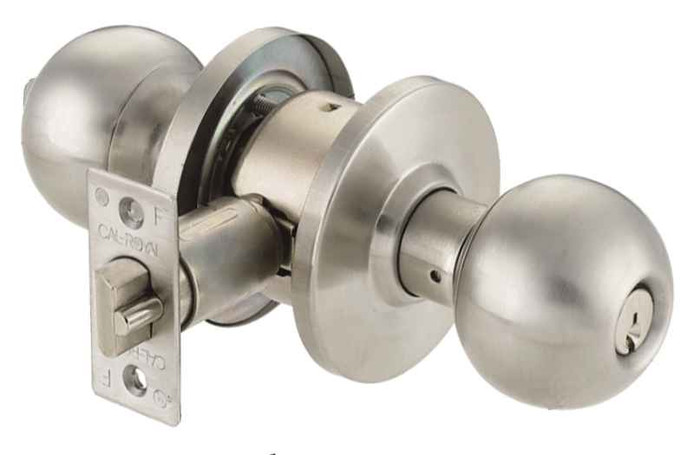

Cal-Royal BA03 Classroom - ANSI F84
Deadlocking latch bolt operated by knob from either side except when outside knob is locked from outside by key. When outside knob is locked, latch bolt is operated by turning inside knob.
FEATURES
- DOOR RANGES: - 1 3/8" to 1 3/4" thickness doors
- BACKSET: - 2 3/4" Standard, 2 3/8", 3 3/4" and 5" extension available.
- STRIKES: - ANSI strike standard, 4 7/8" x 1 1/4" . Optional "T" and full lip strike available on request.
- ADDITIONAL KEYWAYS: - 6 pin solid brass "C" keyway standard. Schlage E, Schlage C-K, Russwin D1-2-3-4, Corbin 59/60, Corbin-Russwin L4, Sargent LA-LB-LC, Falcon/Weiser E, Arrow A, Yale 8, Yale GA and Kwikset. Can also accept Medeco, Assa, Kaba and Cal-Royal HSK High Security Cylinders KEYING- 6-pin "C" keyway cylinder, 2 keys per lock.
- BORE DIAMETER: - 1" for latch. 2 1/8" for lock housing.
- INTERCHANGEABLE CORE -Interchangeable Core locks will accept compatible 6 or 7 pin cores with BEST, FALCON and ARROW. Prefix "IC" before part number. Available combinated or uncombinated. Temporary construction cores available. Factory keying with control key and masterkey available.
- LATCH FACEPLATE - 2 1/4" x 1 1/8" for 2 3/4" backset, 2 1/4" x 1" for 2 3/8" backset.
- EXPOSED TRIM - Wrought brass, bronze or stainless steel.
- ANSI STANDARDS - Meets or exceeds requirements of BHMA/ANSI A156.2 series 4000 for grade 2 (FF-H-106C).
Quality Designed and Engineered for Commercial Buildings
- Meets or exceeds requirements of BHMA / ANSI A156.2 Series 4000, Standard Duty, GRADE 2
- Lifetime Warranty
- UL listed 3-hour rating, conforms to standards UL10C and UBC 7-2-1997
- Solid brass 6 pin “C” keyway cylinder, optional other keyways
- Optional Interchangeable Core
- Concealed screw mounting
- Long spindle hub eliminates hub wobble
- Meets the Buy American Act
INSTALLATION INSTRUCTIONS
Manufacturer Resources
Product Specs
- Category:
- Mechanical Locks
- Subcategory:
- Cylindrical Locksets
- Product Group:
- Mechanical Locks
- Latch Faceplate:
- 2-1/4" x 1-1/8" For 2-3/4" Backset, 2-1/4" x 1" for 2-3/8" backset
- Keyed Function:
- Single Cylinder
- Backset:
- 2-3/4"
- Cross Bore:
- 2-1/8"
- Door Thickness:
- 1-3/8" to 1-3/4"
- Edge Bore:
- 1"
- Model:
- BA03
- Product Subgroup:
- Bored Locksets
- Product Type:
- Knobs and Levers
- Keyed:
- Yes
- Strike:
- ANSI Strike Standard, 4 7/8" x 1 1/4" . Optional "T" And Full Lip Strike Available On Request.
- Substrate:
- Wrought Brass, Bronze or Stainless Steel
- Commercial/Residential:
- Commercial
- Function:
- Classroom
- Lock Type:
- Cylindrical
- Lock Function:
- Classroom
- Product Attribute:
- Cylindrical Locks
