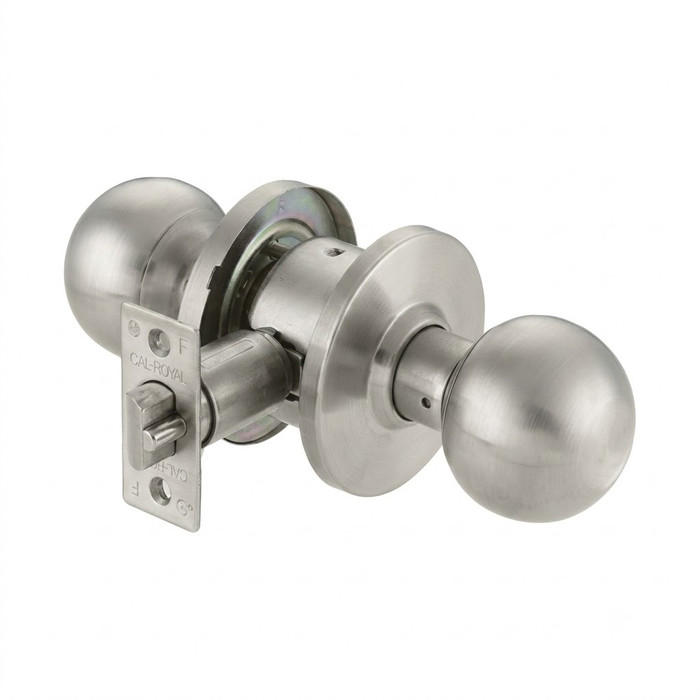

Cal-Royal BA50 Exit Lock - ANSI F89
Deadlocking latch bolt by inside knob. Outside plate only.
FEATURES
-
Exposed Trim - Wrought brass, bronze or stainless steel.
-
Door Ranges - Adjustable for 1-3/8" to 1-3/4" door thickness.
-
Backset - Standard 2-3/4", 2-3/8", 3 3/4" or 5" extension available.
-
Strike - ANSI strike (standard) 4 7/8" x 1 1/4". Optional "T" or full lip strike available.
-
Keying - 6-pin "C" keyway cylinder, 2 keys per lock.
-
Bore Diameter - 1" for latch. 2 1/8" for lock housing.
-
Handing - Completely reversible
Quality Designed and Engineered for Commercial Buildings
- Meets or exceeds requirements of BHMA / ANSI A156.2 Series 4000, Standard Duty, GRADE 2
- Lifetime Warranty
- UL listed 3-hour rating, conforms to standards UL10C and UBC 7-2-1997
- Concealed screw mounting
- Long spindle hub eliminates hub wobble
- Meets the Buy American Act
INSTALLATION INSTRUCTIONS
Manufacturer Resources
Product Specs
- Category:
- Mechanical Locks
- Subcategory:
- Cylindrical Locksets
- Product Group:
- Mechanical Locks
- Latch Faceplate:
- 2-1/4" x 1-1/8" For 2-3/4" Backset, 2-1/4" x 1" for 2-3/8" backset
- Backset:
- 2-3/4"
- Cross Bore:
- 2-1/8"
- Door Thickness:
- 1-3/8" to 1-3/4"
- Edge Bore:
- 1"
- Product Subgroup:
- Bored Locksets
- Product Type:
- Knobs and Levers
- Strike:
- ANSI Strike Standard, 4 7/8" x 1 1/4" . Optional "T" And Full Lip Strike Available On Request.
- Substrate:
- Wrought Brass, Bronze or Stainless Steel
- Commercial/Residential:
- Commercial
- Lock Type:
- Cylindrical
- Function:
- Exit
- Product Attribute:
- Cylindrical Locks
- Product Model:
- BA50
