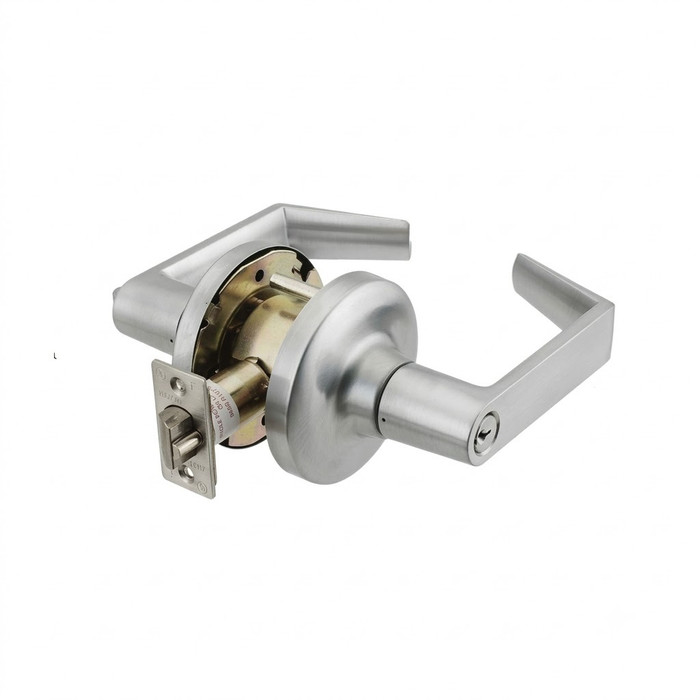

Cal-Royal CAL06 Grade 1 Vestibule Lock - ANSI: F88
Dead locking latch bolt operated by lever from either side except when outside lever is locked by key from inside. Latch bolt may be retracted by key in outside lever or by rotating inside lever.
FEATURES
- APPLICATIONS For offices, schools, hospitals, apartments, hotel / motel, residential, commercial and public buildings.
- DOOR RANGES 1 ⅜” to 2” thickness doors.
- BACKSET 2 ¾” Standard, 2 ⅜”, 3 ¾”, 5” and 2 ¾” anti-friction latch with ¾” throw for pair of fire doors optional.
- LATCH BOLT ½” Throw solid brass, reversible for RH or LH applications. UL Listed.
- LATCH FACEPLATE 2 ¼” x 1 ⅛”, adjustable for flat or beveled doors ⅛” in 2”, for 2 ¾” backset.
- STRIKES ASA strike standard, “T” and full lip strike available on request.
- EXPOSED TRIM Wrought brass, bronze or stainless steel, levers are zinc casting, plated to match trim finish.
- CYLINDER & KEYWAYS 6 pin solid brass “C” keyway standard. Schlage E, Schlage C-K, Russwin D1-2-3-4, Corbin 59 /60, Corbin-Russwin L4, Sargent LA-LB-LC, Falcon / Weiser E, Arrow A, Yale 8, Yale GA and Kwikset. Can also accept Medeco, Assa, Kaba and Cal-Royal (HSK) High Security Cylinders.
- INTERCHANGEABLE CORE Interchangeable Core locks will accept compatible 6 or 7 pin cores with BEST, FALCON and ARROW. Prefix “IC” before part number. Available combinated or uncombinated. Temporary construction cores available. Factory keying with control key and master key available.
- ANSI STANDARDS Meets or exceeds requirements of BHMA / ANSI A156.2 Series 4000, Grade 1
 |
 |
 |
 |
 |
Manufacturer Resources
Product Specs
- Category:
- Mechanical Locks
- Subcategory:
- Cylindrical Locks
- Product Group:
- Mechanical Locks
- Grade:
- Grade 1
- Latch Faceplate:
- 2-1/4 x 1-1/8", adjustable for flat or beveled doors 1/8" in 2" , for 2-3/4" backset. Optional 2-1/4" x 1-1/8" for 2-3/8" backset
- Backset:
- 2-3/4"
- Door Thickness:
- 1-3/8" to 2"
- Keyed Function:
- Single Cylinder
- Product Subgroup:
- Bored Locksets
- Product Type:
- Knobs and Levers
- Keyed:
- Yes
- Strike:
- ASA Strike standard, T" and full lip Strike available on request."
- Latch Throw:
- 1/2"
- Model:
- CAL06
- Substrate:
- Wrought Brass, Bronze or Stainless Steel, levers are Zinc casting, plated to match trim finish.
- Commercial/Residential:
- Commercial
- Function:
- Vestibule
- Lock Function:
- Vestibule
- Product Attribute:
- Cylindrical Locks
