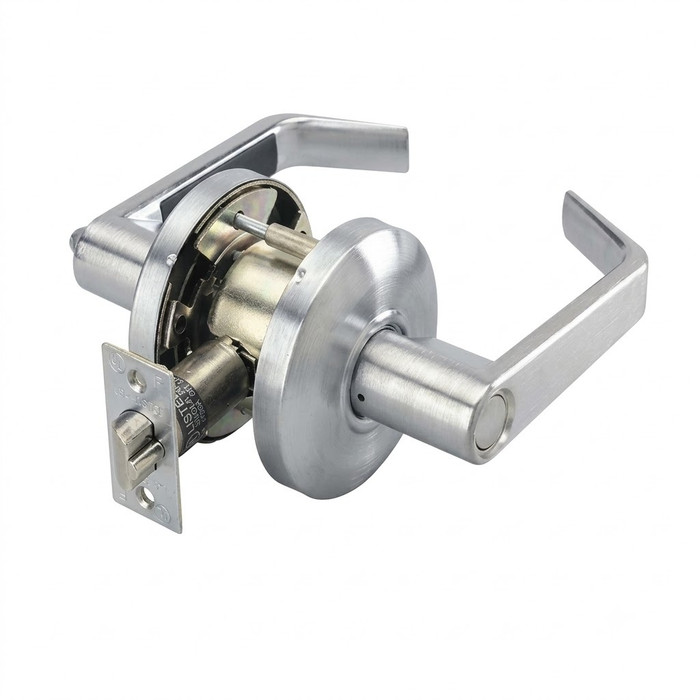

Cal-Royal CAL20 Grade 1 Privacy Lock - ANSI: F76
Latch bolt operated by lever from either side. Outside lever is locked by push button inside and unlocked by emergency release outside. Turning inside lever or closing door releases push button.
FEATURES
- APPLICATIONS For offices, schools, hospitals, apartments, hotel / motel, residential, commercial and public buildings.
- DOOR RANGES 1 ⅜” to 2” thickness doors.
- BACKSET 2 ¾” Standard, 2 ⅜”, 3 ¾”, 5” and 2 ¾” anti-friction latch with ¾” throw for pair of fire doors optional.
- LATCH BOLT ½” Throw solid brass, reversible for RH or LH applications. UL Listed.
- LATCH FACEPLATE 2 ¼” x 1 ⅛”, adjustable for flat or beveled doors ⅛” in 2”, for 2 ¾” backset.
- STRIKES ASA strike standard, “T” and full lip strike available on request.

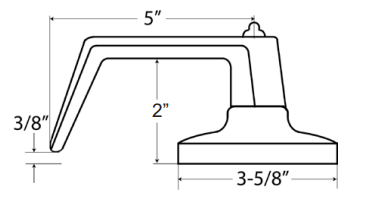

- EXPOSED TRIM Wrought brass, bronze or stainless steel, levers are zinc casting, plated to match trim finish.
- ANSI STANDARDS Meets or exceeds requirements of BHMA / ANSI A156.2 Series 4000, Grade 1
Manufacturer Resources
Product Specs
- Category:
- Mechanical Locks
- Subcategory:
- Cylindrical Locks
- Product Group:
- Mechanical Locks
- Grade:
- Grade 1
- Keyed Function:
- Non-Keyed
- Backset:
- 2-3/4"
- Door Thickness:
- 1-3/8" to 2"
- Product Subgroup:
- Bored Locksets
- Keyed:
- No
- Strike:
- ASA Strike standard, T" and full lip Strike available on request."
- Model:
- CAL20
- Substrate:
- Wrought Brass, Bronze or Stainless Steel, levers are Zinc casting, plated to match trim finish.
- Commercial/Residential:
- Commercial
- Function:
- Privacy/Bed/Bath
- Product Type:
- Cylindrical Locks
- Lock Function:
- Privacy/Bed/Bath
