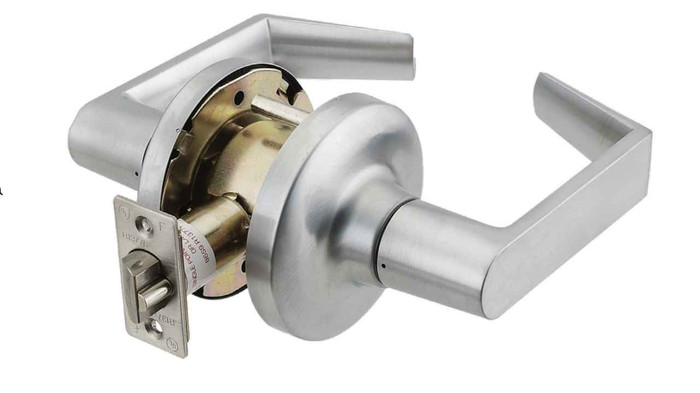

Cal-Royal CAL30 Grade 1 Passage Lock - ANSI: F75
Latch bolt operated by lever from either side at all times.
FEATURES
- APPLICATIONS For offices, schools, hospitals, apartments, hotel / motel, residential, commercial and public buildings.
- DOOR RANGES 1 ⅜” to 2” thickness doors.
- BACKSET 2 ¾” Standard, 2 ⅜”, 3 ¾”, 5” and 2 ¾” anti-friction latch with ¾” throw for pair of fire doors optional.
- LATCH BOLT ½” Throw solid brass, reversible for RH or LH applications. UL Listed.
- LATCH FACEPLATE 2 ¼” x 1 ⅛”, adjustable for flat or beveled doors ⅛” in 2”, for 2 ¾” backset.
- STRIKES ASA strike standard, “T” and full lip strike available on request.
- EXPOSED TRIM Wrought brass, bronze or stainless steel, levers are zinc casting, plated to match trim finish.
- ANSI STANDARDS Meets or exceeds requirements of BHMA / ANSI A156.2 Series 4000, Grade 1
Manufacturer Resources
Product Specs
- Category:
- Mechanical Locks
- Subcategory:
- Cylindrical Locks
- Product Group:
- Mechanical Locks
- Grade:
- Grade 1
- Keyed Function:
- Non-Keyed
- Latch Faceplate:
- 2-1/4 x 1-1/8", adjustable for flat or beveled doors 1/8" in 2" , for 2-3/4" backset. Optional 2-1/4" x 1-1/8" for 2-3/8" backset
- Backset:
- 2-3/4"
- Door Thickness:
- 1-3/8" to 2"
- ANSI/BHMA:
- F75
- Latch Throw:
- 1/2"
- Model:
- CAL30 US26D
- Product Subgroup:
- Bored Locksets
- Keyed:
- No
- Strike:
- ASA Strike standard, T" and full lip Strike available on request."
- Substrate:
- Wrought Brass, Bronze or Stainless Steel, levers are Zinc casting, plated to match trim finish.
- Commercial/Residential:
- Commercial
- Function:
- Passage/Hall/Closet
- Product Type:
- Cylindrical Locks
- Lock Function:
- Passage
- Product Attribute:
- Cylindrical Locks
