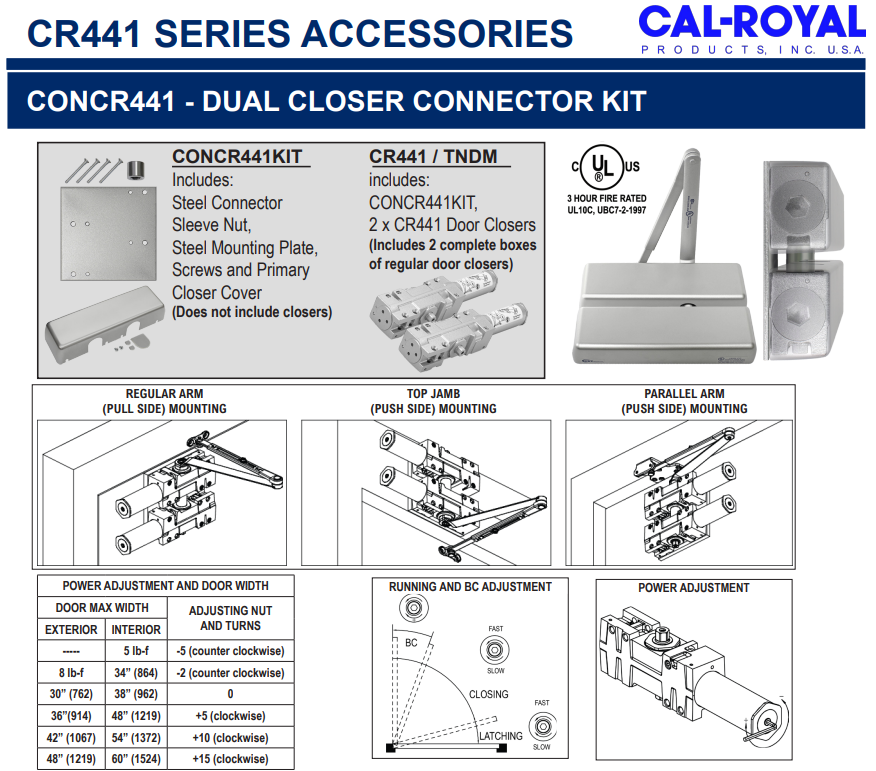

When a single door closer is not strong enough to close a door weighing 260 ~ 520 lbs, the CONCR441KIT allows two CR441 Series Grade 1 Door Closers to work as one, by connecting them together with the high-tensile strength steel connector sleeve nut on a steel mounting plate, doubling the strength and the door weight capacity while maintaining the opening force. Includes 1x CONCR441KIT and 2 each of CR441 door closers.
FEATURES
- Connects Two CR441 Series Door Closers
- For Doors 260 ~ 520 lbs Weight
- Can be Used for Regular Arm, Top Jamb or Parallel Arm Mounting
- Easy Mounting
- High Tensile Strength Steel Connector Sleeve Nut
- 6 11/16” x 6 11/16” x 3/16” Steel Mounting Plate
- 4” x ¼ - 20” x 2 ⅛” Mounting Screws
CONCR441KIT includes:
- CR441 Tandem Connector Sleeve Nut
- Mounting Plate
- Master Cover
- Universal use for regular arm, topjamb, or parallel arm mounting
Manufacturer Resources
Product Specs
- Category:
- Door Controls
- Subcategory:
- Surface Mounted
- Product Group:
- Door Controls
- Model:
- CR441/TNDM
- Product Subgroup:
- Door Closers - Surface Mounted
- Product Type:
- Surface Mounted Door Closers
- Commercial/Residential:
- Commercial
