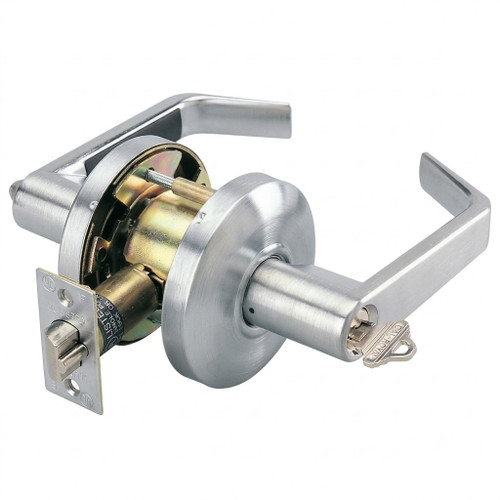

Cal-Royal CSL00 Entrance/Office Lock with Clutch Grade 2, Pioneer SL Series
Model: CSL00
Entrance Function: Pushing and turning button on inside locks outside knob/lever requiring use of a key until button is manually unlocked.
Description:
Clutch: Featuring CLUTCH System,...
Cal-Royal
Starting at
$118.72
$85.02

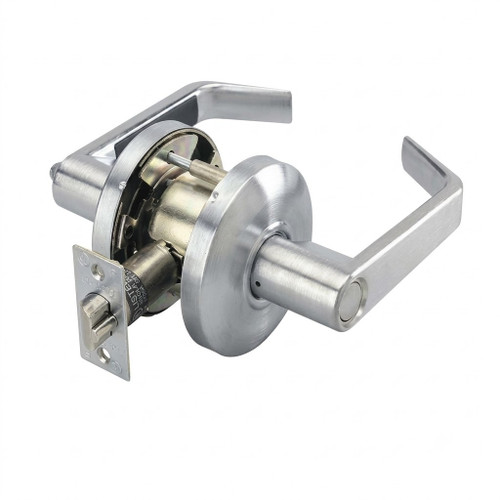

Cal-Royal SL20 Privacy Lock Grade 2, Pioneer SL Series
Model: SL20
Description: Pioneer SL/CSL Series ANSI Grade 2 Cylindrical Leverset Non Clutch Mechanism SL Series Latch bolt operated by lever from either side. Outside lever is locked by push button...
Cal-Royal
Starting at
$92.63
$62.86
Cal-Royal SL30 Passage Lock Grade 2 Lever Lock, Pioneer SL Series
Model: SL30
Description:
Pioneer SL/CSL Series ANSI Grade 2 Cylindrical Leverset Non Clutch Mechanism SL Series
Latch bolt operated by lever from either side. Outside lever is locked by push button...
Cal-Royal
Starting at
$84.58
$61.64
Cal-Royal CSL03 Classroom Lock - With Clutch
Dead locking latch bolt operated by lever from either side except when outside lever is locked from outside by key. When outside lever is locked, latch bolt is operated by turning inside lever.
- Clutch: Featuring CLUTCH System, free turning handle to deter breaking of the handle.
- Applications: For offices, schools, hospitals, apartments, hotel/motel and other public buildings.
- Door Range: 1-3/8" to 1-3/4" thickness doors.
- Backset: 2-3/4" Standard.
- Front: 2-1/4" x 1-1/8", adjustable for flat or beveled doors 1/8" in 2"
- Strike: ASA strike standard. "T" and full lip strike available on request.
- Latchbolt: 1/2" Throw solid brass, reversible for RH or LH applications.
- Exposed Trim: Wrought brass, bronze or stainless steel, levers are zinc casting, plated to match trim finish.
- Keying: 6-pin "c" keyway cylinder, 2 keys per lock. Keying as per individual job requirement.
Cal-Royal Pioneer CSL Series Cylindrical Lever Lock, CSL03 Classroom Function
ANSI Function F109 – Dead locking latch bolt operated by lever from either side except when outside lever is locked from outside by key. When outside lever is locked, latch bolt is operated by turning inside lever.
- Optional thru-bolt installation
- Individual spring on each side to prevent lever sag, maintain reliability and reduce maintenance
- Meets ADA requirements specially designed for Barrier-Free application
- Conforms with ANSI / BHMA A156.2, Series 4000, Grade 2 Requirements Exceeds 400,000 Cycles
- For offices, schools, hospitals, apartments, hotels/motels, residential, commercial, and public buildings
Installation Instructions
Manufacturer Resources
Product Specs
- Category:
- Mechanical Locks
- Subcategory:
- Cylindrical Leversets
- Product Group:
- Mechanical Locks
- Keyed Function:
- Single Cylinder
- Grade:
- Grade 2
- Model:
- CSL03
- Product Subgroup:
- Bored Locksets
- Product Type:
- Leversets
- Keyed:
- Yes
- Commercial/Residential:
- Commercial
- Function:
- Classroom
- Lock Function:
- Classroom
- Backset:
- 2-3/4"
- Strike:
- ANSI, 1-1/4" x 4-7/8", 1-1/4" Lip, Square Corner
- ANSI Function:
- F84
- Door Thickness:
- 1-3/8" to 1-3/4"
- Product Attribute:
- Cylindrical Locks
