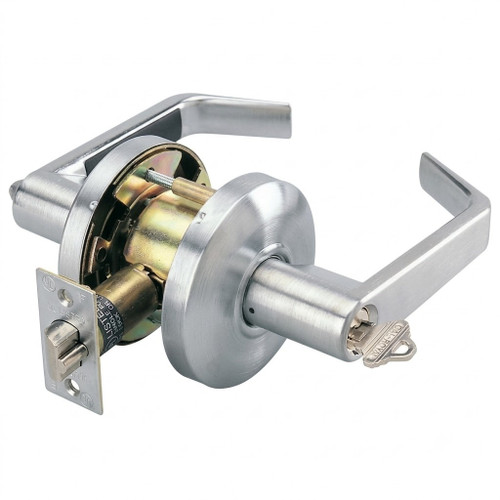

Cal-Royal CSL03 Classroom Lock with Clutch Grade 2, Pioneer SL Series
Model: CSL03
Cal-Royal CSL03 Classroom Lock - With ClutchDead locking latch bolt operated by lever from either side except when outside lever is locked from outside by key. When outside lever is locked,...
Cal-Royal
Starting at
$118.72
$81.32
Cal-Royal CSL05 Storeroom Lock with Clutch Grade 2, Pioneer SL Series
Model: CSL05
Storeroom Function: Outside knob/lever always locked/rigid. Latchbolt retracted by key in outside knob/lever or by rotating inside knob/lever. Inside knob/lever always free. Deadlocking latchbolt...
Cal-Royal
Starting at
$118.72
$85.02
Cal-Royal SL03 Classroom Grade 2 Lever Lock, Pioneer SL Series
Model: SL03
Description: Pioneer SL/CSL Series ANSI Grade 2 Cylindrical Leverset Non Clutch Mechanism SL Series Classroom. Dead locking latch bolt operated by lever from either side except when outside...
Cal-Royal
Starting at
$109.62
$71.33
Cal-Royal SL05 Storeroom Grade 2 Lever Lock, Pioneer SL Series
Model: SL05
Description:
Dead locking latch bolt operated by key in outside lever or by rotating inside lever. Outside lever is always fixed.
Door Range: - 1-3/8" to 1-3/4" thickness doors.
Cal-Royal
Starting at
$105.73
$72.42
Description:
Pioneer SL/CSL Series ANSI Grade 2 Cylindrical Leverset Non Clutch Mechanism SL Series
Latch bolt operated by lever from either side. Outside lever is locked by push button inside and unlocked by emergency release outside. Turning inside lever or closing door release push button.
- Applications: For offices, schools, hospitals, apartments, hotel/motel and other public buildings.
- Door Range: 1-3/8" to 1-3/4" thickness doors.
- Backset: 2-3/4" Standard.
- Front: 2-1/4" x 1-1/8", adjustable for flat or beveled doors 1/8" in 2"
- Strike: ASA strike standard. "T" and full lip strike available on request.
- Latchbolt: 1/2" Throw solid brass, reversible for RH or LH applications.
- Exposed Trim: Wrought brass, bronze or stainless steel, levers are zinc casting, plated to match trim finish.
Cal-Royal Pioneer SL Series Cylindrical Lever Lock, SL20 Privacy Function
ANSI Function F76 – Latch bolt operated by lever from either side. Outside lever is locked by push button inside and unlocked by emergency release outside. Turning inside lever or closing door release push button.
- Optional thru-bolt installation
- Individual spring on each side to prevent lever sag, maintain reliability and reduce maintenance
- Meets ADA requirements specially designed for Barrier-Free application
- Conforms with ANSI / BHMA A156.2, Series 4000, Grade 2 Requirements Exceeds 400,000 Cycles
- For offices, schools, hospitals, apartments, hotels/motels, residential, commercial, and public buildings
Installation Intructions
Manufacturer Resources
Product Specs
- Category:
- Mechanical Locks
- Subcategory:
- Cylindrical Leversets
- Product Group:
- Mechanical Locks
- Latch Faceplate:
- 2-1/4" x 1-1/8", adjustable for flat or beveled doors 1/8" in 2", for 2-3/4" backset. Optional 2-1/4" x 1" for 2-3/8" backset
- Keyed Function:
- Non-Keyed
- Backset:
- 2-3/4"
- Grade:
- Grade 2
- Door Thickness:
- 1-3/8" to 1-3/4"
- Product Subgroup:
- Bored Locksets
- Product Type:
- Leversets
- Keyed:
- No
- Latch Throw:
- 1/2"
- Model:
- SL20
- Substrate:
- Wrought Brass, Bronze or Stainless Steel, levers are Zinc casting, plated to match trim finish.
- Commercial/Residential:
- Commercial
- Function:
- Privacy/Bed/Bath
- Lock Function:
- Privacy/Bed/Bath
- Product Attribute:
- Cylindrical Locks
