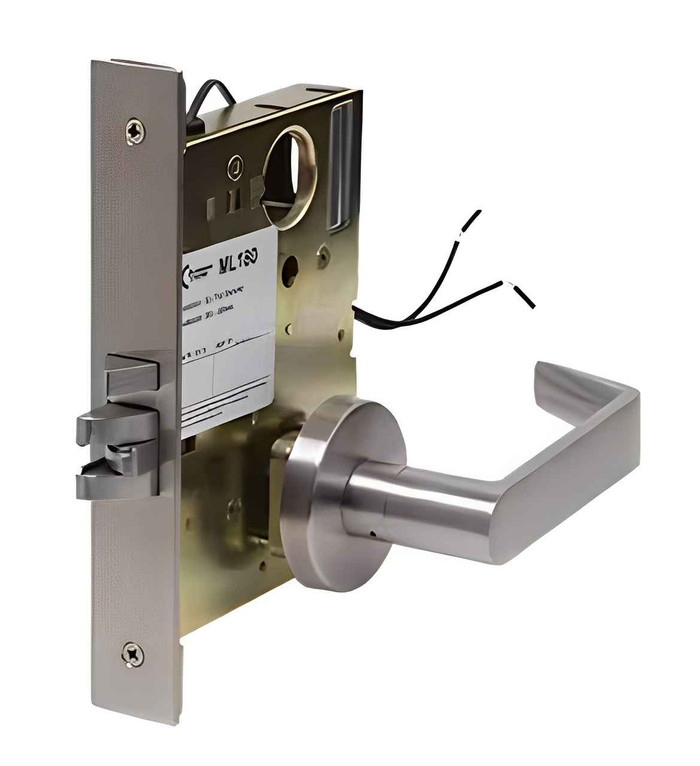

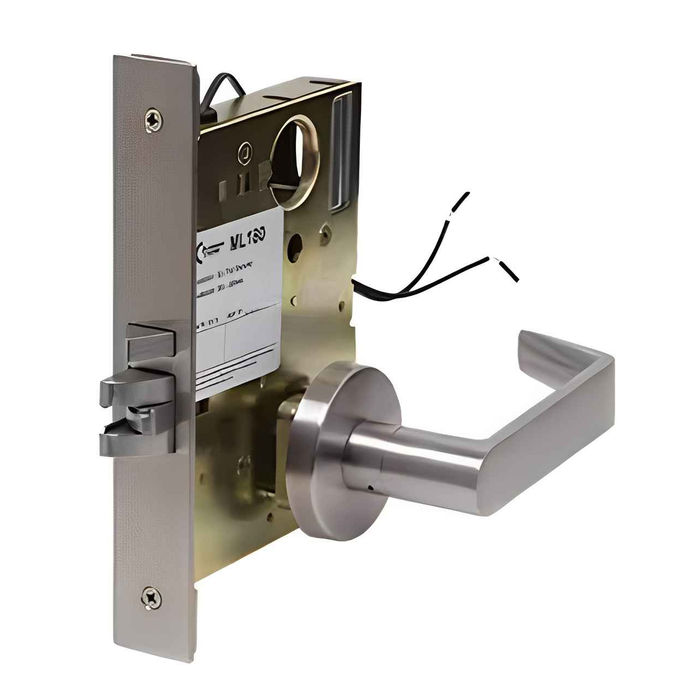

Command Access ML180 Storeroom Function with Trim, 06 Lever, Rose, Retrofits Schlage L9000 Series Electrified Mortise Lock

ML 180 Series ML180 - Storeroom

Electrified Solenoid Schlage L9000 Retro Mortise Lock (Complete Lock)

The Command Access ML1 retrofit complete lock (L9000) series available in a solenoid (ML180) & motor driven (ML190) modification offers the quality features found in premium quality, domestically made ANSI grade 1 mortise locks, yet at a significally lower cast. The electrification and part tolerance maintenance is done here in the USA to ensure CAT's high quality standards are met. The ML1's chasis and trim are compatible with the Schlage 'L' series locks so retrofitting to Schlage prep is never a problem.

Specifications

Voltage:

• Operating voltage - 12 or 24VAC/DC (+or- 10%)
• Amperage - 12V =700 mA / 24V =350 mA
• Solenoid coil resistance - 12V =18 Ω / 24V = 69 Ω
• Power consumption - 8 watts
• Available in Fail Safe (EL) or Fail Secure (EU)

Features:

• Continuous duty solenoids allow for "continuously on" applicants such as Fail Safe or an unlock cycle
• Plug-in bridge rectifier that allows for an AC or DC power source supplied with all locks
• Low current draw
• Handling Field Reversible

Product Details

 Complete Lock:

• Box: 10.5" x 3.75": x 2.5"
• Weight: 7 Lbs
• Master Pack Qty: 4ea.

Recommended Locking Hardware Power Supplies

• PS204/PS204B
• PS220/PS220B
• PS480B
• PS2
• PS5-8

Models Application Available

• ML170 - Classroom (fail safe/fail secure): Outside lever locked (EL) or unlocked (EU) electronically. Latchbolt retracted by lever on
  either side unless outside has been locked by key. Applied power allows outside lever to
  retract latchbolt. Inside lever is always free for immediate egress.
• ML180 - Storeroom (fail safe/fail secure): Outside lever locked (EL) or unlocked (EU) electronically. Latchbolt retracted by key
  outside or lever inside. Applied power allows outside lever to retract latchbolt. Inside
  lever is always free for immediate egress.
• ML182 - Institutional (fail safe/fail secure): Outside and inside levers simultaneously locked (EL) or unlocked (EU) electronically.
  Latchbolt retracted by key on either side. Applied power allows both levers to retract
  latchbolt
• ML1480 - Entry w/ Deadbolt (fail safe/fail secure): Outside lever locked (EL) or unlocked (EU) electronically. Latchbolt and deadbolt
  retracted by key outside or lever inside. Applied power allows outside lever to retract
  latchbolt and deadbolt. Inside lever is always free for immediate egress.
