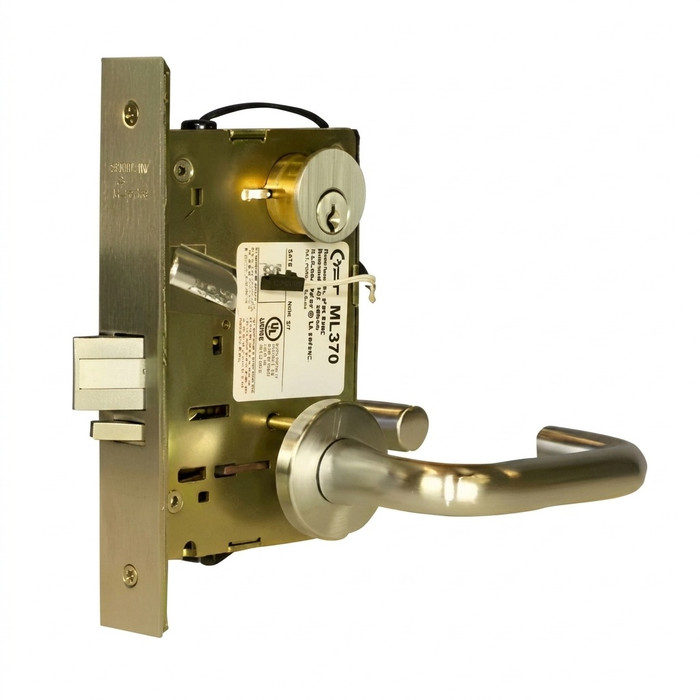

Command Access ML370 Storeroom Function, Electrified Sargent 8200 Mortise Lock (Chassis Only)

ML370 Series Storeroom Function

Electrified Sargent 8200 Mortise Lock Chassis Only

- The Command Access electrified Sargent 8200 series mortise lock line allows for remote keyless access and egress control for heavy use applications where security and safety is critical. These locks may be purchased as complete locks, chassis only or as modifications only (add MD prefix for modification only of customers 8237 lock bodies) Along with the styles and finishes listed, we offer multiple functions and voltages to meet your requirements. Common applications include stairwell doors, lobby entrances, computer rooms, classrooms, interior and exterior doors.

Specifications

Voltage:

• Operating voltage - 12 or VAC/DC (+or- 10%)
• Amperage - 12V = 700 mA / 24V = 350 mA
• Solenoid coil resistance - 12V = 18 Ω / 24V = 69 Ω
• Power consumption - 8 watts
• Available Fail Safe (EL) or Fail Secure (EU)

Chassis Only:

• Box: 10.5” x 3.75”: x 2.5”
• Weight: 3 Lbs
• Master Pack Qty: 10 ea.

ML370 - storeroom:(fail safe) - Outside lever locked (EL) electronically. Latchbolt retracted by key outside or lever inside. Applied power allows outside lever to retract latchbolt. Inside lever is always free for immediate egress.

ML371 - storeroom:(fail secure) - Outside lever unlocked (EU) electronically. Latchbolt retracted by key outside or lever inside. Applied power allows outside lever to retract latchbolt. Inside lever is always free for immediate egress.
