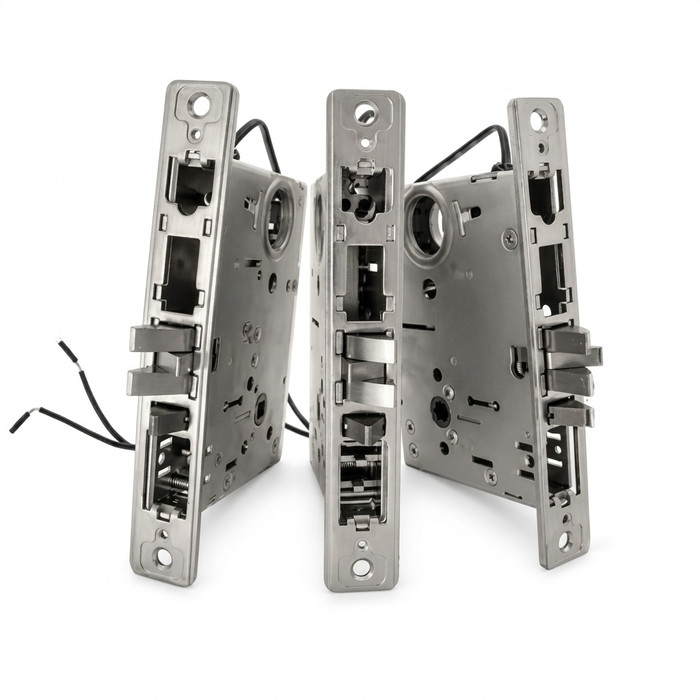

Command Access MRC135D Storeroom Function, Chassis Only, 12/24V, Command Retrofit Kit For Best 35 Series

MRC135D Best 35 Series (Chassis Only)

Storeroom Function

Electrified Mortise Lock Retrofit Chassis, Satin Chrome

The command Access MRC1 Retrofit Chassis series for Best 35, Cal Royal 8000, Corbin Russwin 2000, & Falcon MA series utilizes a high quality Grade 1 chassis built to withstand years of use. You can install this lock with the confidence of knowing that the MRC1 carries out top tier features, options and specifications.

Specifications

Voltage

• Operating voltage: 12 or 24VAC/DC (+or- 10%)
• Amperage - 12V = 700 mA / 24V = 350 mA
• Solenoid coil resistance - 12V = 18 Ω / 24V = 69 Ω
• Power consumption: 8 watts
• Available: Fail safe (EL) or Fail secure (EU)

Features

• Continuous duty solenoids allow for "continuously on" applications such as Fail Safe or an unlock cycle
• Plug-in bridge rectifier that allows for an AC or DC power source supplied with all locks
• Low current draw
• Handing Field Reversible

Model Applications Available

Best 35 Series

• MRC135D - Storeroom: (fail safe/ fail secure) - Outside lever locked (EL) or unlocked (EU) electronically. Latchbolt retracted by key outside or lever inside. Switched power allows outside lever to retract latchbolt. Inside lever is always free for immediate egress.
• MRC135W - Institutional: (fail safe/ fail secure) - Outside and inside levers simultaneously locked (EL) or unlocked (EU) electronically. Latchbolt retracted by key on either side. Switched power allows both levers to retract latchbolt.

Cal Royal 8000 Series

• MRC18080- Storeroom: (fail safe/ fail secure) - Outside lever locked (EL) or unlocked (EU) electronically. Latchbolt retracted by key outside or lever inside. Switched power allows outside lever to retract latchbolt. Inside lever is always free for immediate egress.
• MRC8082 - Institutional: (fail safe/ fail secure) - Outside and inside levers simultaneously locked (EL) or unlocked (EU) electronically. Latchbolt retracted by key on either side. Switched power allows both levers to retract latchbolt

Corbin Ruswin 2000 Series

• MRC103 - Storeroom: (fail safe) - Outside lever locked (EL) electronically. Latchbolt retracted by key outside or lever inside. Switched power denies outside lever to retract latchbolt. Inside lever is
  always free for immediate egress.
• MRC105- Storeroom: (fail secure) - Outside lever unlocked (EU) electronically. Latchbolt retracted by key outside or lever inside. Switched power allows outside lever to retract latchbolt. Inside lever is
  always free for immediate egress.
• MRC101 - Institutional: (fail safe) - Outside and inside levers simultaneously locked (EL) electronically. Latchbolt retracted by key on either side. Switched power denies both levers to retract
  latchbolt.
• MRC104 - Institutional: (fail secure) - Outside and inside levers simultaneously unlocked (EU) electronically. Latchbolt retracted by key on either side. Switched power allows both levers to retract
  latchbolt.

Falcon MA Series

• MRC151- Storeroom: (fail safe) - Outside lever locked (EL) electronically. Latchbolt retracted by key outside or lever inside. Switched power denies outside lever to retract latchbolt. Inside lever is
  always free for immediate egress.
• MRC181- Storeroom: (fail secure) - Outside lever unlocked (EU) electronically. Latchbolt retracted by key outside or lever inside. Switched power allows outside lever to retract latchbolt. Inside lever is
  always free for immediate egress.
• MRC111 - Institutional: (fail safe) - Outside and inside levers simultaneously locked (EL) electronically. Latchbolt retracted by key on either side. Switched power denies both levers to retract
  latchbolt.
• MRC121 - Institutional: (fail secure) - Outside and inside levers simultaneously unlocked (EU) electronically. Latchbolt retracted by key on either side. Switched power allows both levers to retract
  latchbolt
