Command Access PS204/204B UL 6E/CSA Linear with 2 Amps at 24VDC Power Supply

PS204/204B

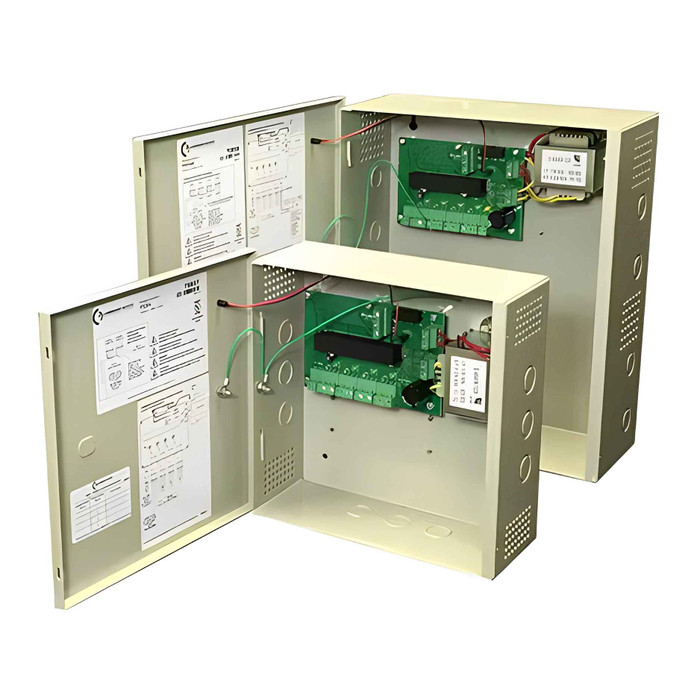

PS204/204B UL 6E/CSA Linear with 2 Amps at 24VDC Power Supply

- PS204/204B - 110-120VAC input power supplies that deliver (2) amps @ 24VDC to (4)
PTC fused outputs. (4) solid-state input triggers, protects system relays from shorts,
grounds and surges. Its linear design makes it a perfect match for electric locks, motor
driven exit devices, electric strikes, and mag locks.

Specifications

Input Voltage

• 120 VAC, 60 Hz,
• Input Fuse: 2 Amp Fuse @ 250VAC

Output Voltage

• 2A @ 24VDC
• 4 Solid State I/O’s - .75A auto resetting fused outputs
• Over-voltage protection
• Output Voltage trim pot

Battery Backup

• Regulated, independent battery charging
• Automatic uninterrupted backup circuit
• Battery cables included
• Requires (2) 12VDC 7AH batteries
• Batteries not included

Features

LED's

• Red = A/C Power indicator
• Green = D/C Output indicator
• Orange = Battery Output Indicator

Fire Alarm

• Fire alarm link

Features & Benefits

• Linear design insures ample inrush/hold current for latch retraction
• Door mounted LED Power Indicator
• Easy to remove euro connectors
• Intelligent short circuit detection

Mechanical Details

• Enclosure dimensions: PS204 (11” W x 11” H x 4” D). PS204B (13” W x 15.5” H x 5” D).
• 1/2” & 3/4” knockouts on all sides
• Hinge-less removable cover; Cam lock not provided
• PS204B accommodates (2) 12VDC 7AH batteries
• Product Weight: PS204 - 10lbs; PS204B - 14 lbs
• Shipment Weight: PS204 - 11lbs; PS204B - 15 lbs

Electrical

• Temperature range: 0 to 49° C; 32 to 120° F
• Maximum humidity: 85%

PS204/204B Cutsheet

Installation Instructions
