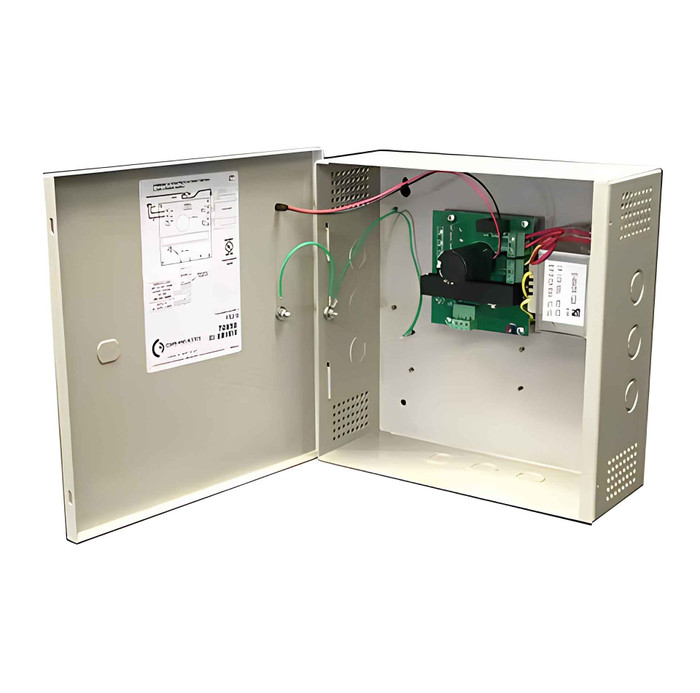

Command Access PS210 UL 6E/CSA Linear with 1-I/0 Power Supply With Boost Circuitry

PS210

PS210 UL 6E/CSA Linear with 1-I/0 Power Supply With Boost Circuitry

- PS210 - 110-120VAC input power supplies that deliver (1.5) amps @ 24VDC to (1) PTC
fused output. (1) solid-state input trigger, protects system relays from shorts, grounds
and surges. Its regulated linear design makes it a perfect match for electric locks, motor
or solenoid driven exit devices, electric strikes, and mag locks.

Specifications

Input Voltage

• 120 VAC, 60 Hz,
• Input Fuse: 2 Amp Fuse @ 250VAC

Output Voltage

• 1.5A @ 24VDC
• 1 Solid State I/O’s - 1.5A auto resetting fused outputs
• Over-voltage protection
• Output Voltage trim pot

Features

LED's

• Red = A/C Power indicator
• Green = D/C Output indicatorr

Fire Alarm

• Fire alarm link

Features & Benefits

• Linear design insures ample inrush/hold current for latch retraction
• Door mounted LED Power Indicator
• Easy to remove euro connectors
• Intelligent short circuit detection

Mechanical Details

• Enclosure dimensions: PS204 (11” W x 11” H x 4” D). PS204B (13” W x 15.5” H x 5” D).
• 1/2” & 3/4” knockouts on all sides
• Hinge-less removable cover; Cam lock not provided
• Product Weight: PS210 - 10lbs
• Shipment Weight: PS210 - 11lbs

Electrical

• Temperature range: 0 to 49° C; 32 to 120° F
• Maximum humidity: 85%
