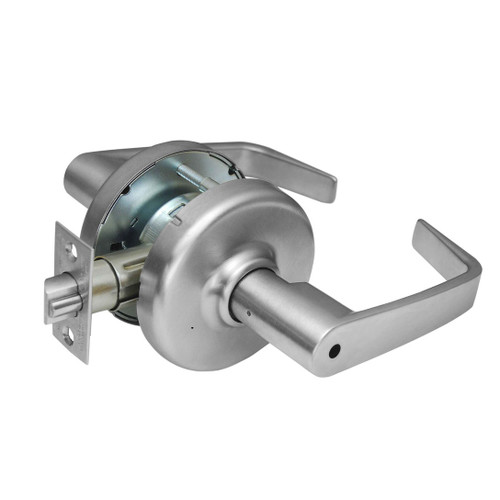

Corbin Russwin CL3320H Hospital Privacy Extra Heavy-Duty Cylindrical Lever Lock

CORBIN RUSSWIN CLX3320H HOSPITAL PRIVACY OVERVIEW

• Non-keyed cylindrical lever lock.
• Outside lever locked by inside push button.
• Lever handle is freewheeling in locked position.
• Outside lever unlocked by simultaneously depressing outside pushbutton while rotating lever.
• Rotating inside lever or closing door also unlocks outside lever.
• Outside lever handle is freewheeling when locked.

Standard features

• Door thickness:1-3/4" to 2" doors
• Backset: 2-3/4"
• Strike: ANSI curved lip 4-7/8" x 1-1/4" x 1-1/4" lip to center
• Cylinder: Not applicable
• Keys: Two nickel silver keys

Most common configuration:

• NZD Newport lever
• 626 Satin Chrome finish

3300 SERIES OVERVIEW

The Corbin Russwin CL3300 series is an extra heavy-duty commercial-grade (Grade 1) cylindrical lockset designed for durability and years of dependable operation.

The lock is manufactured with the highest quality parts and materials to ensure strength, durability, quiet operation, and years of operation. It is available in all standard architectural finishes and four lever designs, the CL3300 series complements any high-use commercial, industrial, and institutional application.

Durability for years

500 employees x 2 times per day x 260 workdays per year = greater than 57 years of operation

Example for illustrative purposes only.

Key Advantages

• EZ-Install components significantly reduce installation time
• Lever Release™ lever design for vandal resistance
• Pyramid cylinders for increased security (keyed models)
• Access control available with CL33900 Electrified lockset
• ElectroLynx® connectors are standard on all Corbin Russwin electrified products. McKinney QC hinges are recommended to make a complete plug and play application.
• Independent return springs prevent lever sag
• Covers ANSI/DHI Door Prep A115.18

Classroom Security

The CL3352 Classroom Intruder function is the solution to classroom security: a double cylinder lockset that allows locking of the outside lever from either side. Egress is always possible with the standard anti-panic feature, whether the door is locked or not. And because a key is needed to secure the door from either side, students cannot lock a teacher out of the classroom.

Vandal Resistance

The CL3300 series is engineered to meet today’s increased security needs. All functions/models feature the Lever Release™ design for vandal resistance, allowing the outside lever to rotate when in the locked position. All CL3300 series locksets, including the CL33900 series, are available with Corbin Russwin Pyramid patented security or high security cylinders, the most secure locking system available. Pyramid is especially recommended for installations that require superior protection against picking, drilling and other surreptitious entry. See the Pyramid catalog for additional information.

Access Control

For access control, the CL33900 Series Electrified Cylindrical lockset utilizes the proven CL3300 series lockset and features an integral continuous duty solenoid that allows installation in a standard cylindrical prep. Available in Fail Safe or Fail Secure, the CL33900 is ideal for door control where increased security is necessary at all times, while meeting life safety codes.
