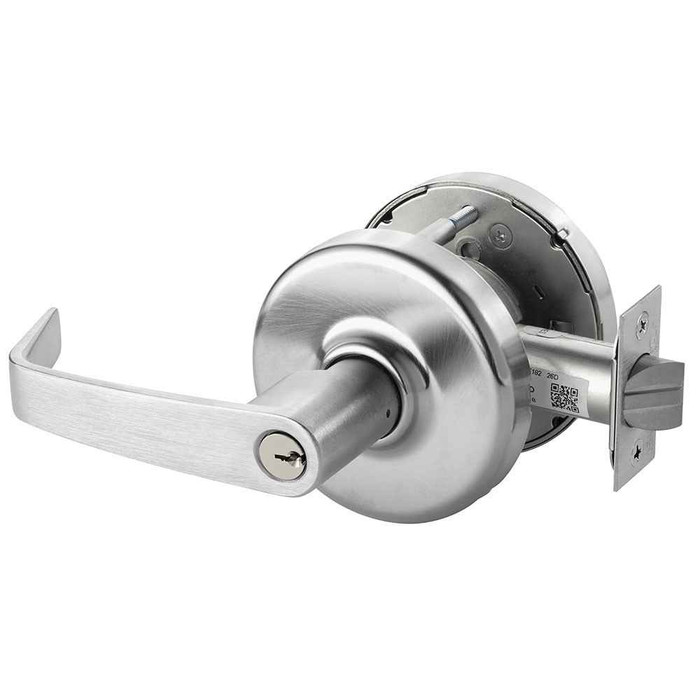

Corbin Russwin CLX3381 Keyed Lever & Blank Plate - Cylindrical Lever Lock

CORBIN RUSSWIN CLX3381 KEYED LEVER and BLANK PLATE LOCK OVERVIEW

• ANSI function F113 (Keyed Lever and Blank Plate).
• Keyed cylindrical lever lock.
• Deadlocking latchbolt by lever, except when lever is locked by key. (Lever handle is freewheeling in locked position.)
• Lever on one side, blank plate on other side.
• Key unlocks lever.

Standard features

• Door thickness:1-3/4" to 2" doors
• Backset: 2-3/4"
• Strike: ANSI curved lip 4-7/8" x 1-1/4" x 1-1/4" lip to center
• Cylinder: Conventional Cylinder 6-pin
• Keys: Two nickel silver keys

Most common configuration:

• NZD Newport lever
• 626 Satin Chrome finish

CLX3300 SERIES OVERVIEW

The CLX3300 Series ANSI/BHMA Grade 1 cylindrical lock is designed to secure high-traffic spaces where aesthetics are important. Manufactured of the highest-quality materials to provide durability, strength, and reliability, it is also available in all industry-standard finishes and a variety of decorative levers, so you'll never have to sacrifice style for strength. It supports all cylinder formats - from fixed to interchangeable cores, and is the ideal choice for new construction and retrofit projects.

The CLX3300 Series ANSI/BHMA Grade 1 cylindrical lock has the strength to secure high-traffic openings with design options to complement any decor. Manufactured of the highest-quality materials to provide durability, strength, and reliability, it is also available in a vast array of finishes and a variety of decorative levers, so you'll never have to sacrifice style for strength.

Durability for years

500 employees x 2 times per day x 260 workdays per year = greater than 57 years of operation

Example for illustrative purposes only.

Strength and Durability

• UL Cycle above and beyond test completed at 20 Million Cycles. Verification ID: V875753
• Exceeds 3,100 in-lb abusive locked lever torque with no entry
  while maintaining egress (2.6 times ANSI/BHMA A156.2 requirements)
• Exceeds 1,600 lbs offset lever pull with no entry for protection against attacks (8 times ANSI/BHMA A156.2 requirements)
• Latch retraction with 100lb preload (2 times ANSI/BHMA A156.2) while maintaining ANSI/BHMA requirements for operation in warped doors
• No access with minimum 100 vertical impacts for protection against vandalism attempts (20 times ANSI/BHMA A156.2 requirements)
• Independent return springs allow lock to exceed ANSI/BHMA A156.2 Grade 1 cycle requirements without lever sag
• Innovative push/turn button design to withstand excessive abuse against door stops or walls.

Flexibility

• Lock chassis design supports all cylinder formats allowing flexibility for from fixed core to interchangeable core cylinders.
• High Security and security key systems available (Access 3, Pyramid, etc.)
• Patent pending adjustable push/turn button for easy door thickness adjustment.
• Lever Release™ freewheeling levers standard for vandal resistance; rigid lever optional.

Broad Offering

• Available with 26 mechanical functions
• 14 finishes and MicroShield options
• Multiple lever options including decorative designs and behavioral health

Benefits

• Provides maximum resistance to vandalism and other malicious attacks
• Certified above and beyond testing to withstand high volume traffic
• Complements the look of any design style
• Minimizes inventory stocking requirements
• Simplifies installation in new and retrofit applications
• Integrates with new or existing facility's key systems

Applications

• Heavy duty commercial and institutional interior and exterior doors
• Offices
• Schools/Universities
• Hospitals
• Manufacturing facilities
