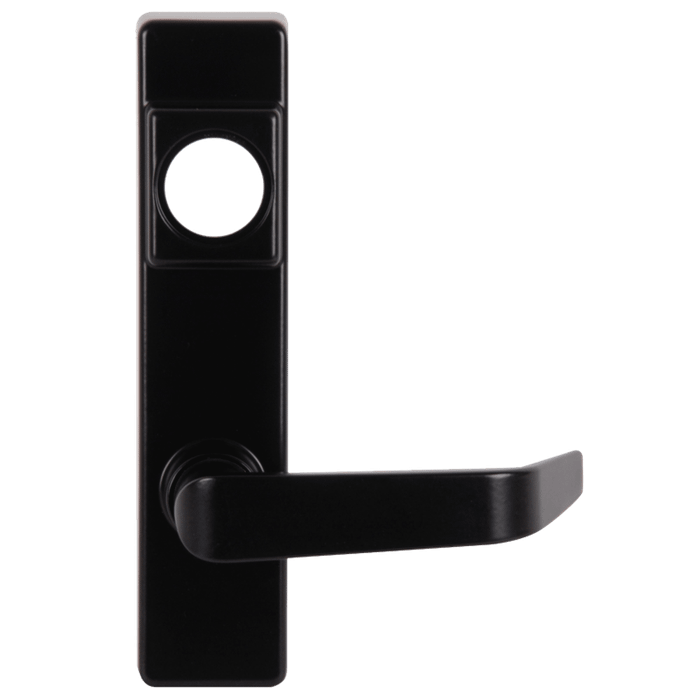

Detex S-Lever Exit Device Trim with Mortise Cylinder for BN Series

Detex S-Lever Exit Device Trim with Mortise Cylinder for BN Series

(No reviews yet) Write a Review

Model: 09BN 693
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$402.00
$242.00
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Detex S-Lever Exit Device Trim with Mortise Cylinder for BN Series

Professional Exit Device Trim Solution

The Detex S-Lever Exit Device Trim provides secure entrance control for BN Series exit devices with BHMA Function 09 operation. This heavy-duty trim features entrance by lever only when released by key, with key removable only when locked position. Built to match the durability of Detex panic devices, this mortise cylinder trim delivers reliable performance for commercial applications requiring controlled access.

Professional Features & Benefits

  • Heavy-Duty Construction: Built to be as durable as the panic devices for long-term reliability in high-traffic commercial applications.
  • BHMA Function 09 Operation: Entrance by lever only when released by key with key removable only when locked for enhanced security control.
  • Versatile Design Integration: Combined with device mounting plate allows changing functions by simply replacing outside trim without removing exit device from door.
  • Mortise Cylinder Compatibility: Designed for use with mortise cylinder systems for professional locksmith integration.
  • BN Series Compatibility: Specifically engineered for Detex BN Series exit devices for seamless system integration.
  • BHMA Standard Compliance: Follows BHMA functions and descriptions for consistent professional installation and operation.
  • Field-Serviceable Design: Trim replacement can be accomplished without door removal for efficient maintenance and function changes.

Technical Specifications

  • Commercial/Residential: Commercial
  • Handle Type: Lever
  • Lock Type: Mortise
  • Product Category: Exit Devices and Trim
  • Product Group: Exit Devices and Trim
  • Product Model: 09BN
  • Product Subgroup: Exit Device Trim
  • Product Type: Exit Device Trim
  • Series: BN Series
  • Subcategory: Lever Trim

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Detex Quality?

Detex exit device trim products deliver professional-grade reliability with heavy-duty construction designed to withstand heavy use and abuse. The versatile mounting plate design enables function changes without device removal, providing efficient maintenance capabilities. Engineered for demanding commercial applications where dependable access control and security performance is essential.



Installation Instructions (08/09/14BN)
Installation Instructions (EU2W)
Narrow Stile Trim Rehanding Video
Wide Stile Lever Trim Rehanding Video

Product Specs

Series:
BN Series
Subcategory:
Lever Trim
Product Group:
Exit Devices and Trim
Product Subgroup:
Exit Device Trim
Product Type:
Exit Device Trim
Commercial/Residential:
Commercial
Lock Type:
Mortise
Handle Type:
Lever
Product Model:
09BN
Product Category:
Exit Devices and Trim
Department:
Door Hardware

Detex 09BN 693 – Frequently Asked Questions

1) What does BHMA Function 09 mean on Detex 09BN lever trim?
Function 09 is key-release lever: the lever stays rigid until a key turn releases it, then it retracts the latch, and the key only comes out when the trim is back in the locked state. In practice that means the outside is secured by default and staff enter with a key, not by free lever operation. If you want an outside lever that always works, this is the wrong function.
2) Will the 09BN trim work on my Detex exit device?
The 09BN is built for Detex BN Series devices, and one of the orderable configurations is called out for the Value Series rim and surface vertical rod exit devices. If your device is a different Detex family, this trim is not the match.
3) Does the Detex 09BN come with a cylinder, or do I have to buy one?
Both ways are sold. The default configuration ships with no cylinder, so you supply a mortise cylinder to suit your existing keyway. There is also a with-cylinder configuration keyed alike. Locksmiths standardizing a building on their own keyway usually take the no-cylinder version; a single opening with no existing key system is simpler with the cylinder included.
4) What kind of cylinder does the Detex 09BN lever trim take?
A mortise cylinder, not a rim cylinder. That matters when you are pulling a cylinder off an old device to reuse: a rim cylinder with a tailpiece will not thread into this trim. Order a mortise cylinder in your keyway with the cam your Detex trim calls for.
5) I want keypad entry on the exit door instead of a keyed lever. What replaces the Detex 09BN?
Two credential-based lever trims cover that. The Dormakaba E-Plex E5010 is an electronic push button exit device lever trim with key override, Grade 1, and fits doors 1-3/8 to 2-1/4 inches thick. The BEST EXZ is an electronic keypad exit device trim with key override for the EZ Series. Both let a code open the door and keep a key as backup, where the Detex 09BN is a mechanical Function 09 trim that requires the key to release the lever. Confirm the electronic trim matches your device family before ordering.
6) What is the difference between Detex 09BN S-lever trim and the Deltana DDS-36 lever trim?
Both are lever trims for exit devices, but they differ in function and in what device they mount to. The Detex 09BN is a BHMA Function 09 trim built for Detex BN Series devices, with entrance by lever only when released by key and the key removable only in the locked position, and it takes a mortise cylinder. The Deltana DDS-36 is a storeroom function lever trim for exit device 80. Storeroom keeps the outside lever fixed until the key retracts the latch, while Function 09 leaves the lever active once the key has released it, so the two behave differently after the key turn even though both are key-controlled.
7) Is the Arrow SRX87 lever trim a substitute for the Detex 09BN?
No. The Arrow SRX87 is a classroom function Sierra lever trim with rose built for Arrow S1150/S1250/ED910/PEC910 Series devices and prepped for a 1-3/4 inch door. The Detex 09BN is engineered specifically for Detex BN Series exit devices and uses a mortise cylinder. Exit device trim is device-specific: the mounting plate and spindle pattern follow the device family, so a trim cut for the Arrow S1150/S1250 family will not pick up a Detex BN chassis. Match the trim to the device brand and series already on the door.
8) Can I change the outside function of a Detex exit device without pulling the device off the door?
Yes. The 09BN works with the device mounting plate so the outside trim can be swapped to change function while the exit device stays mounted. For a property manager changing an opening from key-entry to something else, that is a trim order and a screwdriver, not a door prep job.
9) Is the 09BN trim handed, and can it be re-handed in the field?
Detex lever trim is re-handed rather than ordered handed, and Detex publishes rehanding video for both narrow stile and wide stile lever trim. Installation instructions covering the 08, 09 and 14BN trims are published with the product, and those are the sheet to follow for door prep and hole locations.
10) I need lever trim that is always unlocked from outside, not key-release. What should I use instead?
The 09BN is key-release only, so it is the wrong pick for a corridor or restroom door that should stay free. For a passage lever trim, Deltana LTED80LP is a passage function lever trim for 80 series exit devices. For storeroom operation, where the lever is always locked and the key retracts the latch, Deltana DDS-36 (80 series) and LTED60LST (60 series) are storeroom function.
11) What is the equivalent key-operated exit device trim for a Corbin Russwin or Sargent device?
Trim is device-family specific, so the Detex 09BN will not cross over. For Corbin Russwin ED2200 and ED2400 devices, the K157ET is a Grade 1 key-only trim with rose. For Sargent 80 Series, the 814 PSB is a night latch pull, key-operated entry with a pull instead of a lever. Match the trim to the device series you already have on the door.
12) I only need to cover the outside of the exit device, no lever and no key. Is the 09BN what I want?
No. The 09BN is a working lever trim with a mortise cylinder for key entry. If the outside should have no operation at all, a blank plate is the part: Sargent 802 blank plate trim for PE80 Series (not for wood doors), or Von Duprin 379L-BE blank escutcheon for 55 Series rim devices. For a lever that looks live but does nothing, Corbin Russwin sells a dummy lever trim for ED7000 Series.
13) What is a simpler alternative to the Detex 09BN when the door does not need outside entry at all?
When the opening is exit-only, a blank trim removes the lever and the cylinder entirely. The Von Duprin 379L-BE is a blank escutcheon trim for 55 Series rim exit devices, heavy duty and Grade 1, and the Sargent 802 is a blank plate trim with GTB design for the PE80 Series, Grade 1. Neither offers any outside operation. Choose the Detex 09BN when the door must still admit staff by key; choose a blank plate when nothing should open from the pull side.
14) What lever trim should I use if I want the outside lever always free instead of key-controlled?
Passage function trim is the one to specify. The Deltana LTED80LP is a passage function lever trim for exit device 80, and the Lockey 115P is a heavy duty keyless passage lever panic trim with the 1150 lock body, fitting doors 1 3/16 to 2 inches thick. Both leave the outside lever operable with no key. The Detex 09BN works the other way: it is a Function 09 trim on which the lever only admits entry once released by key, with the key removable only in the locked position.
15) Does a pull handle work in place of a lever trim on an exit device?
Only where no latch retraction is wanted from outside. The Sargent 862 is an offset pull handle for exit devices, Grade 1, in the P800 Series, and the Sargent 814 PSB is a night latch pull trim, heavy duty, for the 80 Series. A night latch pull uses a cylinder to retract the latch and the pull to draw the door open, while a plain offset pull does not operate the latch at all. The Detex 09BN differs from both by giving a lever handle that a key releases for entry, which matters where ADA lever operation is required on the pull side.
16) How does the Detex 09BN compare to Corbin Russwin key-only trim for an exit device?
The Corbin Russwin K157ET is a Grade 1 key only trim with rose for ED2200/ED2400 Series devices, heavy duty, classroom function. Key only means the cylinder does the work and there is no lever to grasp. The Detex 09BN carries a lever that becomes operable once the key releases it, so staff can enter by lever rather than by turning a cylinder each time. Pick the key-only trim where a handle would invite use; pick the lever trim where regular authorized traffic passes through.
17) What are the options if I do not want to stock or key a cylinder for the exit door trim?
Keyless mechanical trim avoids the cylinder entirely. The Lockey 285P is a keyless mechanical panic trim with a lever handle for doors 1 3/16 to 2 inches thick, and the Lockey 115P is a heavy duty keyless passage lever panic trim with the 1150 lock body for the same thickness range. Codes replace keys on both. The Detex 09BN takes a mortise cylinder and can be ordered with or without one, so a locksmith can supply and key the cylinder to an existing system rather than run a separate credential.
18) I need the door to unlock on a signal from the access control system. Is the Detex 09BN the right part?
No, that is a device-level change rather than a trim change. The ACSI ED4200-W036 is a Corbin Russwin ED4000 Series rim exit device with electric latch retraction on 24 volt AC/DC, Grade 1, wide stile, so the panel retracts the latch and the door pulls free without a credential at the trim. The Detex 09BN is mechanical trim for Detex BN Series devices and controls entry at the lever with a key. If the schedule calls for remote unlock, specify an electrified device; if it calls for key control at the door, the 09BN covers it.
19) What finishes does the Detex 09BN lever trim come in?
Two: 689 aluminum painted and 693 black painted. Both are offered with or without a cylinder, so finish does not limit your cylinder choice. If the other openings in the building are running 689 aluminum on Detex hardware, the match is direct.
20) Is the Detex 09BN lever trim rated for heavy commercial traffic?
It is a commercial product, built to match the durability of the Detex panic devices it mounts to, and it is used on office, school, healthcare, retail, industrial, multi-tenant and municipal openings. For a high-traffic entrance where the outside is meant to stay locked, that is the intended service.
21) Can I use a dummy lever trim where the Detex 09BN would go?
Only on a door that never needs outside access. The Corbin Russwin x650ET is a Grade 1 heavy duty dummy lever trim with rose for ED7000 Series devices; a dummy lever is fixed and operates nothing, so it gives the opening a matching handle without any latch control. The Detex 09BN is a working trim that admits entry by lever once a key has released it, using a mortise cylinder. On a paired opening where one leaf is exit-only, a dummy on that leaf and a 09BN on the active leaf is a common split.
