Detex 10-800 Series Controller - Stand-Alone 120VAC/24VDC System Contains Back Box, Transformer and Series 800 Electronics

DETEX 10-800 Series  Controller - Stand-Alone 120VAC/24VDC System contains back box, transformer and Series 800 electronic

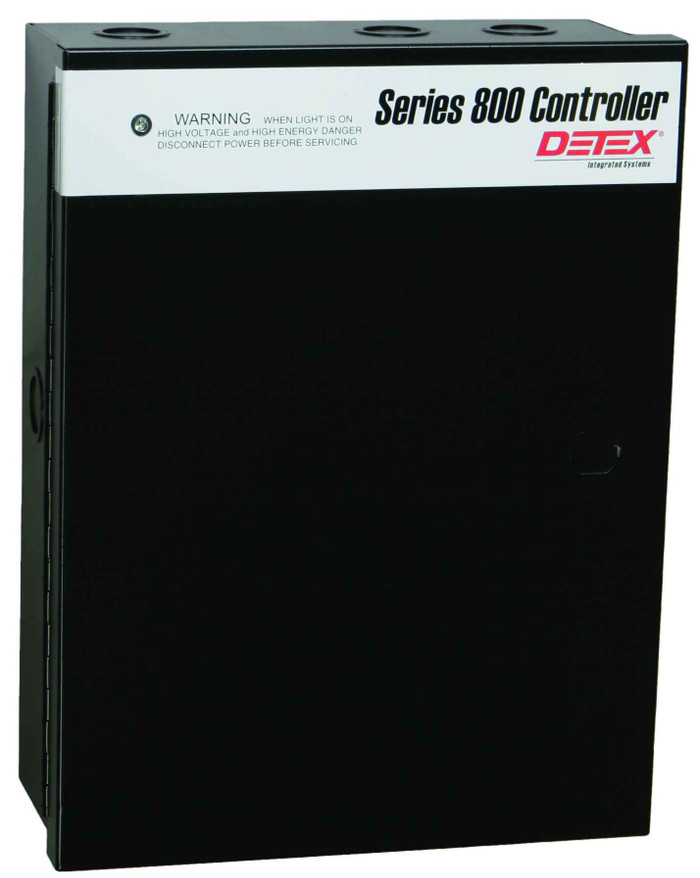

The Detex 10-800 and 11-800 are universal logic and power supply controllers that allow for total control
over all electrified hardware. The controller receives input from a switch, access control or any dry
contact device and processes it into the desired output. One controller can manage applications for
up to two doors, such as standard egress, delayed egress and interlocks. All connections for local or
remote signaling are contained in one box. The 10-800 and 11-800 logic controllers provide at least 2A
of DC power at the door. A battery backup/charging circuit is standard with each controller to deliver an
uninterrupted source of power for up to 4 hours (battery sold separately)

Benefits

• Central terminal connections provide easy wiring
• Inline fuse protects against power surges

• Designed specifically to support electric locks, access control systems and delayed egress systems

• Multiple fire alarm relay input options assure compliance to various life safety codes
• On/Off switch allows for easy service and inspection

Features

• Power supply and controller all in one box
• Controls up to 2 separate doorsfor standard egress or 2-door interlock applications
• 1 controller required for each independent delayed egress application
• Output relays for locks, local alarm and remote alarms
• Relays may be configured to wet or dry connections

• Status LED's toggle on or off for easy troubleshooting
• Connections are labeled with either numbering scheme or label with text to identify circuits
• Single AC line voltage required to activate
• Dual voltage selection (12/24VDC)
• 9VDC, 100mA output terminal tap
• Fuse protection
• Battery backup circuit - standard

• Other Models include:
30-800* - Surface box - Zinc plated, lid and Series 800 controller
31-800* - Flat mount plate and Series 800 controller
40-800* - Same as 11-800 without transformer
41-800* - Same as 10-800 without transformer

50-800* - Series 800 controller only, no box
* Requires low voltage source

Installation Instructions (80-800)
Installation Instructions (90-800)
