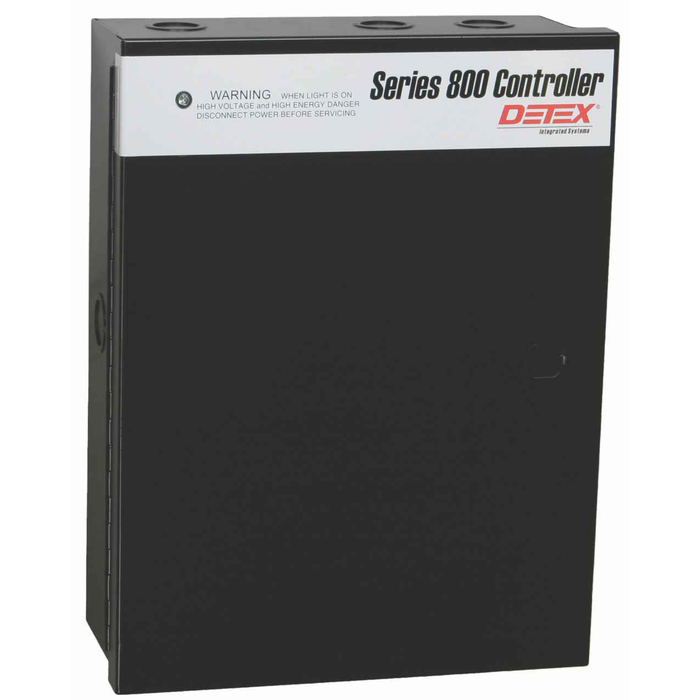

Detex 11-800 Series Universal Logic Controller with 120VAC/24VDC Power Supply and Battery Backup
Professional Access Control Power Supply and Logic Controller
The Detex 11-800 Series Controller is a stand-alone 120VAC/24VDC system that combines universal logic control with integrated power supply for comprehensive electrified hardware management. This complete system includes back box, upper back pan and flip-up insert, 24-point terminal strip, transformer and Series 800 electronics. The controller provides at least 2A of DC power at the door with dual voltage selection (12/24VDC) and includes a standard battery backup/charging circuit for up to 4 hours of uninterrupted operation.
Professional Features & Benefits
- Dual Voltage Operation: 12/24VDC selection with 120VAC input provides flexible power options for various system requirements.
- High-Capacity Power Supply: Delivers at least 2A of DC power at the door for demanding electrified hardware applications.
- Battery Backup System: Standard battery backup/charging circuit provides up to 4 hours of uninterrupted power during outages (battery sold separately).
- Multi-Door Control: Controls up to 2 separate doors for standard egress or 2-door interlock applications with one controller required for each independent delayed egress application.
- Complete System Integration: Includes back box, upper back pan and flip-up insert, 24-point terminal strip, transformer and Series 800 electronics in one comprehensive package.
- Professional Wiring Management: Central terminal connections with 24-point terminal strip provide easy wiring and labeled connections for circuit identification.
- Advanced Protection Features: Inline fuse protection against power surges with status LEDs for easy troubleshooting and diagnostic capabilities.
- Manufacturer Warranty: 3 Year Limited Manufacturer's Warranty for added confidence and protection.
Technical Specifications
- Commercial/Residential: Commercial
- Electronic: Yes
- Product Category: Electronic Access Controls
- Product Group: Electronic Access Controls
- Product Model: 11-800
- Product Subgroup: Sensors, Switches, Relays and Timers
- Product Type: Power Supplies
- Series: 800 Series
- Subcategory: Power Supply
- Warranty: 3 Year Limited Manufacturer's Warranty
Installation & Operation
- Verify electrical requirements match available power supply. Confirm 120VAC input voltage and current capacity before proceeding.
- Disconnect power supply before beginning installation. Follow all applicable electrical codes and safety procedures.
- Mount the unit in the specified location ensuring adequate clearance for wiring access, ventilation, and future service requirements.
- Route and connect wiring according to manufacturer wiring diagrams. Use appropriate wire gauge and connectors for the application.
- Configure operational settings including dual voltage selection (12/24VDC) and relay configurations per application requirements.
- Restore power and test all functions including normal operation, alarm/alert functions, and integration with connected systems.
- Complete final inspection and document settings. Refer to manufacturer documentation for complete wiring diagrams, programming instructions, and troubleshooting.
Professional Applications
- Commercial Building Security Systems
- Educational Institution Access Control
- Healthcare Facility Security Management
- Industrial Facility Access Points
- Multi-Tenant Residential Properties
- Government and Municipal Buildings
- Delayed Egress System Control
Why Choose Detex Quality?
Detex 11-800 Series Controllers deliver professional-grade reliability with integrated power supply and logic control rated to provide at least 2A of DC power with battery backup capability. The 3 Year Limited Manufacturer's Warranty ensures long-term protection and confidence. Engineered for demanding commercial applications where dependable access control and power management are essential for security and life safety compliance.
Installation Instructions (80-800)Installation Instructions (90-800)
Manufacturer Resources
Installation Instructions (80-800)
Product Specs
- Subcategory:
- Power Supply
- Series:
- 800 Series
- Product Group:
- Electronic Access Controls
- Product Subgroup:
- Sensors, Switches, Relays and Timers
- Commercial/Residential:
- Commercial
- Product Type:
- Power Supplies
- Electronic:
- Yes
- Warranty:
- 3 Year Limited Manufacturer's Warranty
- Product Model:
- 11-800
- Product Category:
- Electronic Access Controls
