Detex 12-800 Series Logic Controller Power Supply 120VAC/24VDC with Battery Backup Circuit

Detex 12-800 Series Logic Controller Power Supply 120VAC/24VDC with Battery Backup Circuit

Universal Logic and Power Supply Controller for Delayed Egress Applications

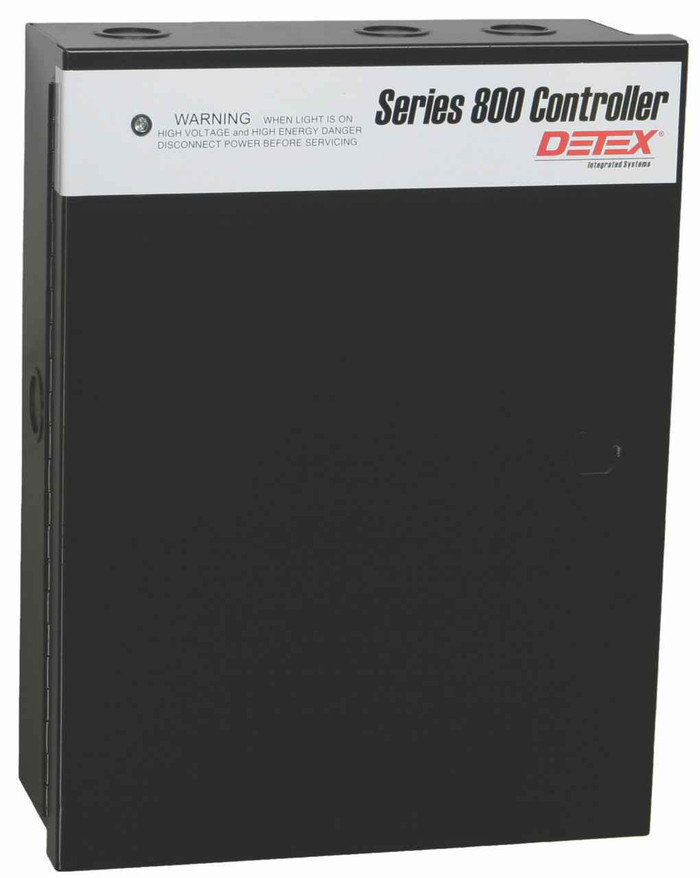

The Detex 12-800 Series Logic Controller combines power supply and control functions in a single stand-alone 120VAC/24VDC system for comprehensive electrified hardware management. This universal controller processes inputs from switches, access control systems, or dry contact devices into desired outputs, managing applications for up to two doors including standard egress, delayed egress, and interlocks. The system includes back box, upper back pan, flip-up insert, 24-point terminal strip, transformer, and Series 800 electronics, all prewired at factory with labeled connections.

Professional Features & Benefits

• Dual Voltage Operation: 120VAC input with 24VDC output plus dual voltage selection (12/24VDC) for flexible system integration.
• High-Capacity Power Delivery: Provides at least 2A of DC power at the door with 9VDC, 100mA output terminal tap for auxiliary devices.
• Battery Backup Circuit: Standard battery backup and charging circuit delivers uninterrupted power for up to 4 hours (battery sold separately).
• Two-Door Control Capability: Controls up to 2 separate doors for standard egress or 2-door interlock applications with one controller required for each independent delayed egress application.
• Comprehensive Output Options: Output relays for locks, local alarm, and remote alarms with configurable wet or dry connections for versatile system design.
• Factory Pre-Wiring: Prewired at factory with labeled connections and 24-point terminal strip for simplified installation and reduced field wiring errors.
• Built-in Protection: Inline fuse protection against power surges with on/off switch for easy service and inspection access.
• Status Monitoring: Status LEDs toggle on or off for easy troubleshooting with numbered and text-labeled circuit identification.
• Manufacturer Warranty: 3 Year Limited Manufacturer's Warranty for added confidence and protection.

Technical Specifications

• Commercial/Residential: Commercial
• Electronic: Yes
• Product Category: Electronic Access Controls
• Product Group: Electronic Access Controls
• Product Model: 12-800
• Product Subgroup: Sensors, Switches, Relays and Timers
• Product Type: Power Supplies
• Series: 800 Series
• Subcategory: Power Supply
• Warranty: 3 Year Limited Manufacturer's Warranty

Installation & Operation

1. Verify electrical requirements match available power supply. Confirm 120VAC input capacity and ensure adequate current capacity for connected devices before proceeding.
2. Disconnect power supply before beginning installation. Follow all applicable electrical codes and safety procedures.
3. Mount the unit in the specified location ensuring adequate clearance for wiring access, ventilation, and future service requirements.
4. Route and connect wiring according to manufacturer wiring diagrams using the factory-labeled 24-point terminal strip. Use appropriate wire gauge and connectors for the application.
5. Configure operational settings including relay connections for wet or dry operation and dual voltage selection (12/24VDC) per application requirements.
6. Restore power and test all functions including normal operation, alarm/alert functions, battery backup circuit, and integration with connected access control systems.
7. Complete final inspection and document settings. Refer to manufacturer documentation for complete wiring diagrams, programming instructions, and troubleshooting.

Professional Applications

• Commercial Building Security Systems
• Educational Institution Safety Systems
• Healthcare Facility Access Control
• Delayed Egress Compliance Applications
• Multi-Door Interlock Systems
• Emergency Exit Compliance
• Industrial Facility Access Control

Delayed Egress Compliance

Specifically designed for delayed egress applications with factory prewiring and labeled connections for single or paired door configurations. Multiple fire alarm relay input options ensure compliance to various life safety codes with comprehensive local and remote signaling capabilities contained in one controller box.

Why Choose Detex Quality?

Detex 12-800 Series controllers deliver professional-grade reliability with factory pre-wiring and comprehensive protection circuits designed specifically to support electric locks, access control systems, and delayed egress systems. The 3 Year Limited Manufacturer's Warranty provides added confidence for demanding commercial applications. Engineered for demanding commercial applications where dependable power management and code compliance are essential.
