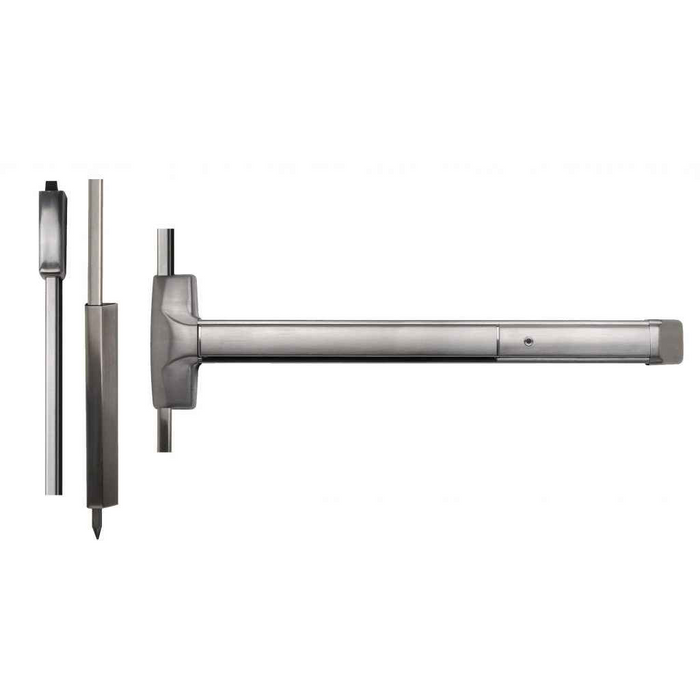

Detex Advantex 2014D/2114D Series Surface Vertical Rod Exit Device with Key Unlocks Lever Function

Detex Advantex 20/21 Series Surface Vertical Rod Exit Device with Key Unlocks Lever Function

Super-Heavy-Duty Panic and Fire Exit Hardware for Double Doors

The Detex Advantex 20/21 Series Surface Vertical Rod Exit Device delivers professional-grade panic and fire exit hardware designed for all types of double doors without a mullion. This Grade 1 rated device features a patented mounting plate and strike locator system for precise installation, stainless steel deadlocking top latch, and hardened steel bottom drop bolt with dust proof strike. Built for high-use, high-abuse commercial environments with field-reversible handing and ADA compliant ramped bottom bolt cover.

Professional Features & Benefits

• Super-Heavy-Duty Construction: Engineered for years of trouble-free service in high-use, high-abuse commercial environments with robust materials and design.
• Patented Installation System: Mounting plate and strike locator system replaces paper templates for the easiest and most accurate panic hardware installation available.
• Stainless Steel Security Components: Features stainless steel deadlocking top latch and standardized stainless steel rod covers for enhanced security and durability.
• Hardened Steel Bottom Bolt: Drop bolt construction with dust proof strike provides reliable bottom point latching and weather resistance.
• Field-Reversible Configuration: Handed design allows field reversal for flexible installation on left or right-hand doors without ordering specific configurations.
• ADA Compliant Design: Includes ADA ramped bottom bolt cover and meets accessibility requirements for commercial applications.
• Flexible Dogging Options: 1/8 turn hex or cylinder dogging capability allows temporary hold-open functionality when needed.
• Manufacturer Warranty: 10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty for added confidence and protection.

Technical Specifications

• Commercial/Residential: Commercial
• Grade: Grade 1
• Product Category: Exit Devices and Trim
• Product Function: Key Unlocks Lever, Lever Always Active
• Product Group: Exit Devices and Trim
• Product Model: 2014D/2114D
• Product Subgroup: Exit Devices - Vertical Rod
• Product Type: Exit Devices - Vertical Rod
• Series: 20/21 Series
• Stile: Wide
• Stile Type: Wide Stile
• Subcategory: Advantex Series
• Warranty: 10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty

Installation & Operation

1. Review manufacturer specifications and verify door preparation requirements including door thickness, wide stile width, and handing as applicable to this product.
2. Use the patented mounting plate and strike locator system to mark mounting hole locations accurately on door and frame surfaces, eliminating the need for paper templates.
3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions with minimal door prep requirements.
4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications, utilizing the field-sizeable design as needed.
5. Adjust operational components including the stainless steel deadlocking top latch and hardened steel bottom drop bolt for proper alignment, latching, and smooth operation throughout the full range of motion.
6. Test device operation to verify proper function including key unlocks lever operation and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

• Commercial Office Buildings
• Educational Facilities
• Healthcare Institutions
• Retail Establishments
• Industrial and Warehouse Facilities
• Multi-Tenant Residential Properties
• Government and Municipal Buildings

Why Choose Detex Quality?

Detex Advantex Series exit devices deliver professional-grade reliability with super-heavy-duty construction designed for high-use, high-abuse environments. The patented mounting plate and strike locator system, stainless steel security components, and Grade 1 rating ensure dependable performance in demanding commercial applications. Backed by a comprehensive 10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty for long-term confidence and protection.
