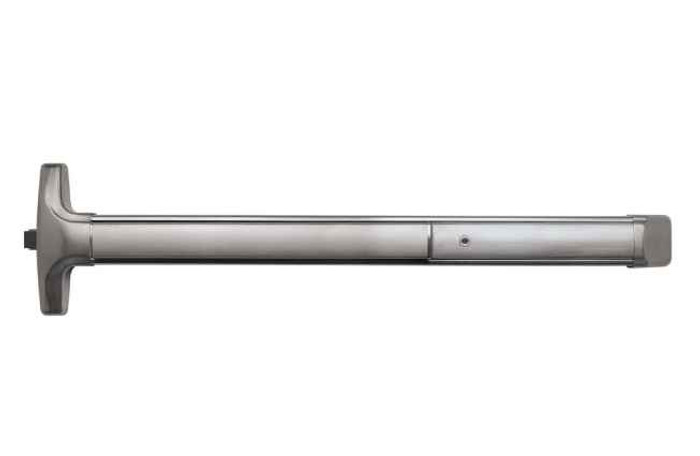

Detex Advantex 40 Series Super-Heavy-Duty Narrow Stile Rim Exit Device with Key Locks/Unlocks Lever

Detex Advantex 40 Series Super-Heavy-Duty Narrow Stile Rim Exit Device with Key Locks/Unlocks Lever

Professional Super-Heavy-Duty Panic and Fire Exit Hardware Solution

The Detex Advantex 40 Series Super-Heavy-Duty Narrow Stile Rim Exit Device delivers professional-grade panic and fire exit hardware engineered for narrow stile single and double doors with mullions. This Grade 1 certified device features a patented mounting plate and strike locator system for precise installation, stainless steel deadlocking Pullman-type latch bolt construction, and field-sizeable design for versatile applications. Tested beyond 1,000,000 cycles - twice the cycling required for Grade 1 UL testing - this non-handed exit device provides reliable performance in high-use, high-abuse commercial environments.

Professional Features & Benefits

• Super-Heavy-Duty Durability: Tested beyond 1,000,000 cycles - twice the cycling required for Grade 1 UL testing for exceptional reliability in high-traffic applications.
• Patented Installation System: Mounting plate and strike locator system replaces paper templates for the easiest and most accurate installation of panic hardware available.
• Premium Construction: Stainless steel deadlocking Pullman-type latch bolt with all exposed surfaces finished over stainless steel using environmentally-friendly PVD finishing process.
• Narrow Stile Compatibility: Specifically designed for narrow stile single and double doors with mullions for versatile commercial applications.
• Field-Sizeable Design: Non-handed configuration with field-sizeable capability allows adaptation to various door requirements without special ordering.
• Service-Friendly Design: Outside trims are easily changed or re-keyed without removing device from door, minimizing maintenance downtime.
• Heavy-Duty Protection: Angled end cap deflects damage away from device for enhanced durability in high-abuse environments.
• Manufacturer Warranty: 10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty for added confidence and protection.

Technical Specifications

• Commercial/Residential: Commercial
• Grade: Grade 1
• Product Category: Exit Devices and Trim
• Product Function: Key Locks/Unlocks Lever
• Product Group: Exit Devices and Trim
• Product Model: 4008DN
• Product Subgroup: Exit Devices - Rim
• Product Type: Exit Devices - Rim
• Series: 40 Series
• Stile: Narrow
• Stile Type: Narrow Stile
• Subcategory: Advantex Series
• Warranty: 10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty
• Wood Door Compatible: No

Installation & Operation

1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
2. Use the patented mounting plate and strike locator system to mark mounting hole locations accurately on door and frame surfaces, eliminating the need for paper templates.
3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions, taking advantage of minimal door prep requirements.
4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion, utilizing the field-sizeable design as needed.
6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

• Commercial Office Buildings
• Educational Facilities
• Healthcare Institutions
• Retail Establishments
• Industrial and Warehouse Facilities
• Multi-Tenant Residential Properties
• Government and Municipal Buildings

Why Choose Detex Quality?

Detex Advantex 40 Series exit devices deliver professional-grade reliability with stainless steel construction and patented installation technology tested beyond 1,000,000 cycles. The 10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty provides comprehensive coverage for demanding commercial applications. Engineered for high-use, high-abuse environments where dependable panic hardware performance and easy serviceability are essential.
