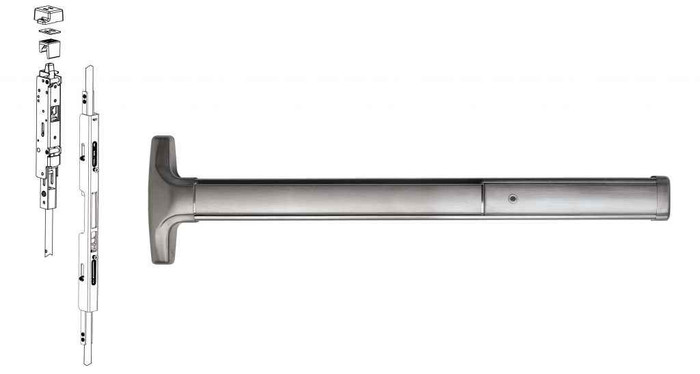

Detex Advantex 70/71 Series Concealed Vertical Rod Exit Device with Wide Stile Design and Blank Escutcheon

Detex Advantex 70/71 Series Concealed Vertical Rod Exit Device with Wide Stile Design and Blank Escutcheon

Super-Heavy-Duty Concealed Vertical Rod Exit Hardware for Wood Doors

The Detex Advantex 70/71 Series Concealed Vertical Rod Exit Device delivers professional-grade panic and fire exit hardware specifically engineered for wooden double doors without a mullion. This Grade 1 certified device features wide stile construction designed for wood door applications, incorporating patented mounting plate technology for precise installation and superior performance in high-use commercial environments.

Professional Features & Benefits

• Wide Stile Design: Engineered specifically for wood doors with wide stile construction to accommodate proper mounting and optimal performance.
• Super-Heavy-Duty Construction: Grade 1 rated design built for years of trouble-free service in high-use, high-abuse commercial environments.
• Patented Mounting System: Exclusive mounting plate system ensures the easiest and most accurate installation of panic hardware available, saving time and reducing installation errors.
• 6-Position Multi-Step Action: Advanced top latch mechanism keeps top and bottom bolts retracted until door closes, providing more consistent re-latching and enhanced security.
• Patented Deadlocking System: Features patented deadlocking of top bolt assemblies (70 and 71 Series) and bottom bolt assemblies (70 Series) for maximum security.
• Field Adjustable Design: Handed field-reversible and field-sizeable construction with easily adjustable rods while installed in door for versatile applications.
• Heavy-Duty End Cap Protection: Angled end cap design deflects damage away from device, extending service life in demanding environments.
• Manufacturer Warranty: 10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty for added confidence and protection.

Technical Specifications

• Commercial/Residential: Commercial
• Grade: Grade 1
• Product Category: Exit Devices and Trim
• Product Function: Blank Escutcheon
• Product Group: Exit Devices and Trim
• Product Model: 7001DV/7101DV
• Product Subgroup: Exit Devices - Vertical Rod
• Product Type: Exit Devices - Vertical Rod
• Series: 70/71 Series
• Stile: Wide (For Wood Doors)
• Stile Type: Wide Stile
• Subcategory: Advantex Series
• Warranty: 10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty

Installation & Operation

1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

• Commercial Office Buildings
• Educational Facilities
• Healthcare Institutions
• Retail Establishments
• Industrial and Warehouse Facilities
• Multi-Tenant Residential Properties
• Government and Municipal Buildings

Why Choose Detex Quality?

Detex Advantex Series exit devices deliver professional-grade reliability with super-heavy-duty construction rated for demanding high-use, high-abuse commercial environments. The patented mounting plate system and deadlocking bolt assemblies provide superior installation accuracy and security performance. Backed by a comprehensive 10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty, this Grade 1 certified hardware is engineered for commercial applications where dependable panic exit performance is essential.
