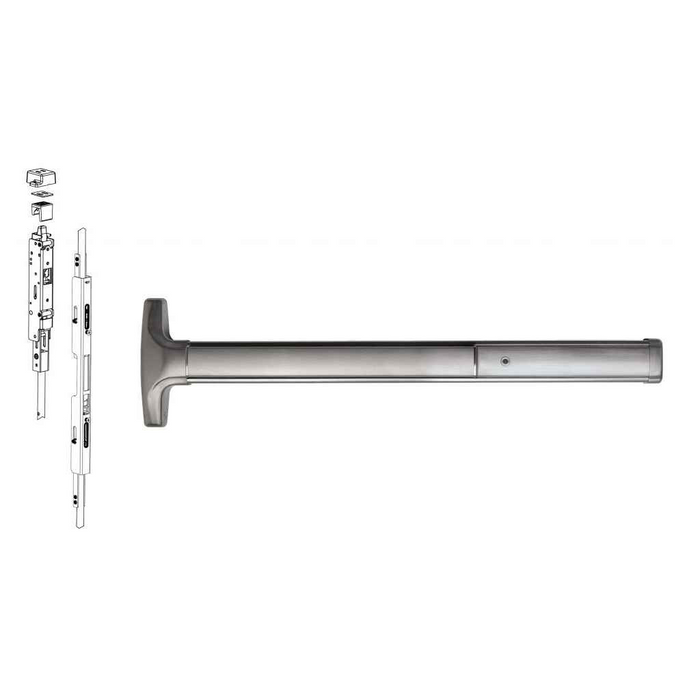

Detex Advantex 70/71 Series Concealed Vertical Rod Exit Device with Wide Stile Design and Lever Always Active

Detex Advantex 70/71 Series Concealed Vertical Rod Exit Device with Wide Stile Design and Lever Always Active

Super Heavy-Duty Panic and Fire Exit Hardware for Wood Doors

The Detex Advantex 70/71 Series Concealed Vertical Rod Exit Device delivers professional-grade exit hardware specifically engineered for wooden double doors without a mullion. This Grade 1 certified device features wide stile design for wood doors with patented mounting plate system ensuring precise installation. The lever always active function provides consistent operation while the field reversible and field sizeable design offers maximum installation flexibility.

Professional Features & Benefits

• Wide Stile Design: Specifically engineered for wood doors with wide stile configuration for optimal mounting and structural integrity.
• Super Heavy-Duty Construction: Grade 1 rated design built for years of trouble-free service in high-use, high-abuse commercial environments.
• Patented Mounting System: Patented mounting plate system ensures the easiest and most accurate installation of panic hardware available with minimal door preparation.
• Advanced Latch Technology: 6-position multi-step action in top latch keeps top and bottom bolts retracted until door closes for more consistent re-latching and enhanced security.
• Patented Deadlocking: Patented deadlocking of top (70 and 71 Series) and bottom (70 Series) bolt assemblies provides superior security performance.
• Field Adjustable Design: Rods are easily adjustable with rods installed in door, and device is both field reversible and field sizeable for installation flexibility.
• Durable Steel Construction: Features durable steel bottom drop bolt (70 Series) and heavy duty angled end cap that deflects damage away from device.
• Manufacturer Warranty: 10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty for added confidence and protection.

Technical Specifications

• Commercial/Residential: Commercial
• Grade: Grade 1
• Product Category: Exit Devices and Trim
• Product Function: Lever Always Active
• Product Group: Exit Devices and Trim
• Product Model: 7014DV/7114DV
• Product Subgroup: Exit Devices - Vertical Rod
• Product Type: Exit Devices - Vertical Rod
• Series: 70/71 Series
• Stile: Wide (For Wood Doors)
• Stile Type: Wide Stile
• Subcategory: Advantex Series
• Warranty: 10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty

Installation & Operation

1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

• Commercial Office Buildings
• Educational Facilities
• Healthcare Institutions
• Retail Establishments
• Industrial and Warehouse Facilities
• Multi-Tenant Residential Properties
• Government and Municipal Buildings

Why Choose Detex Quality?

Detex Advantex Series exit devices deliver professional-grade reliability with patented mounting plate technology and Grade 1 certification for demanding commercial applications. The super heavy-duty design is engineered for high-use, high-abuse environments with 10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty. Built for years of trouble-free service where dependable panic hardware performance is essential.
