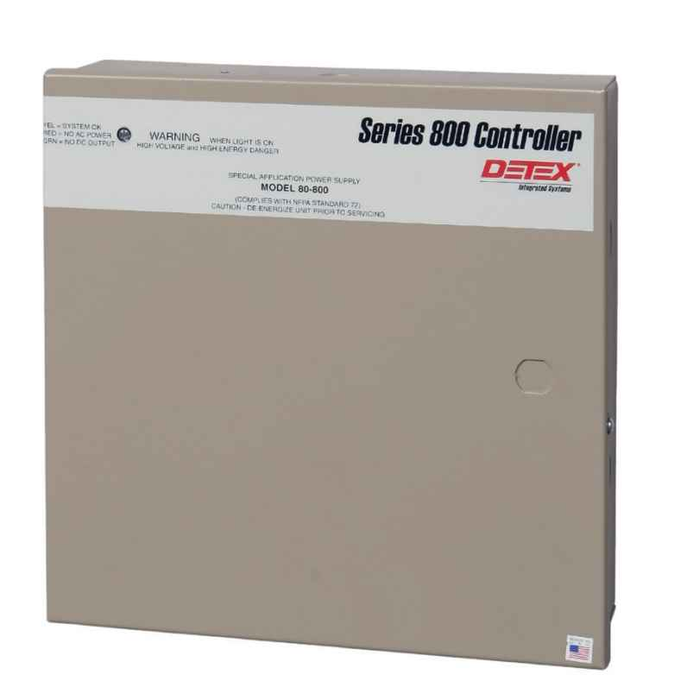

Detex 800 Series Power Supply 12/24VDC 1.0A with Battery Backup and Fire Alarm Input
Professional Access Control Power Solution
The Detex 800 Series Power Supply delivers reliable 12VDC or 24VDC regulated power at 1.0A continuous output for electronic access control systems. This commercial-grade power supply features integrated battery charging circuitry for uninterrupted backup power and includes fire alarm input capability for fail-safe lock release during emergencies. Built with heavy-duty 18-gauge steel enclosure construction for demanding commercial applications.
Professional Features & Benefits
- Dual Voltage Operation: Configurable 12VDC or 24VDC output at 1.0A continuous capacity for flexible system integration requirements.
- Battery Backup System: Integrated battery charging circuit with automatic low battery disconnect at 70% capacity ensures uninterrupted operation during power outages.
- Fire Safety Integration: Fire alarm input provides automatic release of fail-safe locks during emergency conditions for code compliance and occupant safety.
- Individual Circuit Protection: Fused protection with field-resettable capability prevents system damage and enables easy maintenance without replacement components.
- Heavy-Duty Construction: 18-gauge steel enclosure provides exceptional durability and electromagnetic interference protection for commercial installations.
- Service-Friendly Design: On/Off switch allows safe servicing and inspection without disconnecting power connections or removing the unit.
- System Monitoring: LED status indicator provides immediate visual confirmation of power supply operation and system health.
Technical Specifications
- Commercial/Residential: Commercial
- Current: 1A
- Electronic: Yes
- Product Category: Electronic Access Controls
- Product Group: Electronic Access Controls
- Product Model: 80-800
- Product Subgroup: Sensors, Switches, Relays and Timers
- Product Type: Power Supplies
- Series: 800 Series
- Subcategory: Power Supply
- Tags: detex power supply
Installation & Operation
- Verify electrical requirements match available AC power supply. Confirm voltage and current capacity before proceeding with installation.
- Disconnect power supply before beginning installation. Follow all applicable electrical codes and safety procedures.
- Mount the unit in the specified location ensuring adequate clearance for wiring access, ventilation, and future service requirements.
- Route and connect wiring according to manufacturer wiring diagrams. Use appropriate wire gauge and connectors for the 1.0A continuous output application.
- Configure operational settings including fire alarm input connections and battery backup system per application requirements.
- Restore power and test all functions including normal operation, fire alarm input response, battery charging system, and LED status indicators.
- Complete final inspection and document settings. Refer to manufacturer documentation for complete wiring diagrams, programming instructions, and troubleshooting.
Professional Applications
- Commercial Building Security Systems
- Electronic Access Control Infrastructure
- Fail-Safe Lock Power Management
- Fire Safety System Integration
- Healthcare Facility Access Control
- Educational Institution Security Systems
- Industrial Facility Monitoring
Why Choose Detex Quality?
Detex 800 Series Power Supply products deliver professional-grade reliability with heavy-duty 18-gauge steel construction and integrated battery backup systems rated for continuous commercial operation. The fire alarm input capability and individual fused protection ensure code-compliant emergency response while maintaining system integrity. Engineered for demanding commercial applications where dependable power management and life safety compliance are essential.
Installation Instructions (80-800)Installation Instructions (90-800)
Manufacturer Resources
Installation Instructions (80-800)
Product Specs
- Subcategory:
- Power Supply
- Series:
- 800 Series
- Product Group:
- Electronic Access Controls
- Product Subgroup:
- Sensors, Switches, Relays and Timers
- Commercial/Residential:
- Commercial
- Product Type:
- Power Supplies
- Electronic:
- Yes
- Current:
- 1A
- Tags:
- detex power supply
- Product Model:
- 80-800
- Product Category:
- Electronic Access Controls
- Department:
- Door Hardware
Detex DTX-80-800 – Frequently Asked Questions
1) What voltage outputs does the Detex 80-800 power supply provide?
The Detex 80-800 provides both 12VDC and 24VDC outputs at 1.0A continuous current. You can use either voltage depending on your device requirements.
2) Which Detex devices are compatible with this power supply?
This power supply works with most Detex exit alarms, door position switches, and electromagnetic locks requiring 12V or 24V DC power. Check your device specifications to confirm voltage and current requirements.
3) What is the continuous current rating?
The unit provides 1.0 amp continuous current at both 12V and 24V outputs. This rating ensures reliable operation without overheating during extended use.
4) How do I mount the Detex 80-800 power supply?
Mount the unit in a secure, ventilated location using the provided mounting brackets. Ensure adequate clearance for heat dissipation and easy access to terminals.
5) What input voltage does this power supply require?
The Detex 80-800 typically operates on standard 120VAC input power. Verify the input specifications on the unit label before connecting to ensure proper voltage compatibility.
6) Does this power supply include surge protection?
Most Detex power supplies include basic surge protection. For critical installations, consider additional surge suppression devices to protect connected equipment from power spikes.
7) Can I connect multiple devices to one power supply?
Yes, you can connect multiple devices as long as the total current draw does not exceed 1.0 amp. Calculate the combined current requirements of all connected devices before installation.
8) What are the typical installation requirements?
Install in a dry, temperature-controlled environment. Use appropriate wire gauge for the current load and maintain proper electrical connections. Follow local electrical codes for low-voltage installations.
9) How do I troubleshoot power supply issues?
Check input voltage first, then verify output voltage with a multimeter. Ensure total connected load does not exceed 1.0 amp. Look for loose connections or damaged wiring.
10) Are there other Detex power supply options available?
Detex offers various power supply models with different current ratings and features. Browse our Detex products to find the right power supply for your specific application.
11) What wire gauge should I use for connections?
Use 18 AWG or larger wire for most applications. For longer runs or higher current draws, use 16 AWG or 14 AWG wire to minimize voltage drop and ensure reliable operation.
