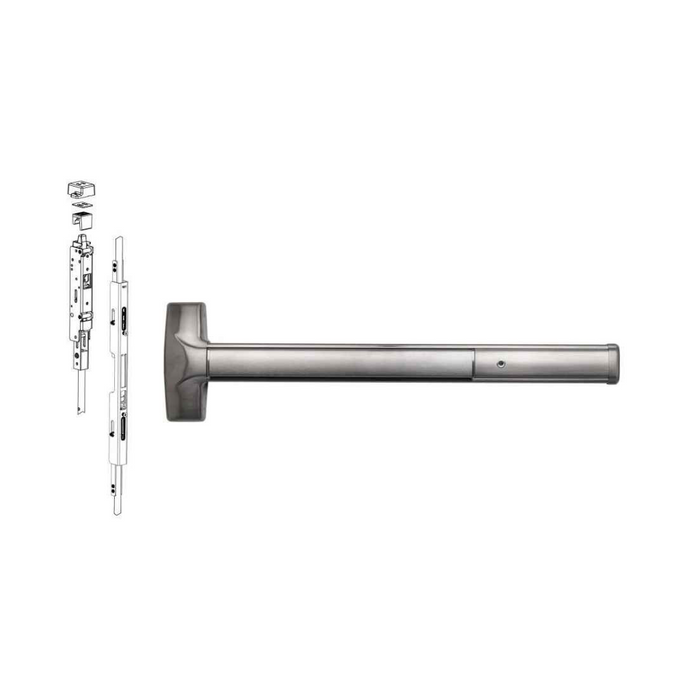

Detex 80/81 Advantex Series Concealed Vertical Rod Exit Device - Wide Stile Grade 1

Detex 80/81 Advantex Series Concealed Vertical Rod Exit Device - Wide Stile Grade 1

Professional Concealed Vertical Rod Exit Device Solution

The Detex 80/81 Advantex Series Concealed Vertical Rod Exit Device delivers Grade 1 commercial-grade performance for wide stile hollow metal doors without mullions. This super-heavy duty panic and fire exit hardware features patented mounting plate system for precise installation and enhanced architectural aesthetics. Designed specifically for wide stile applications, the device provides field-reversible operation with field-sizeable rods for versatile installation requirements.

Professional Features & Benefits

• Wide Stile Compatibility: Engineered specifically for wide stile hollow metal doors without mullions for optimal architectural integration.
• Grade 1 Heavy-Duty Construction: Super-heavy duty design built for years of trouble-free service in high-use, high-abuse commercial environments.
• Patented Mounting System: Patented mounting plate system ensures the easiest and most accurate installation of panic hardware available.
• 6-Position Multi-Step Action: Advanced top latch mechanism keeps top and bottom bolts retracted until door closes, providing more consistent re-latching and enhanced security.
• Patented Deadlocking System: Patented deadlocking of top (80 and 81 Series) and bottom (80 Series) bolt assemblies for superior security performance.
• Field-Adjustable Design: Rods are easily adjustable with rods installed in door, field reversible for left or right hand operation, and field sizeable for custom applications.
• Minimal Door Preparation: Streamlined installation requirements save time and money while reducing door modification needs.
• Manufacturer Warranty: 10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty for added confidence and protection.

Technical Specifications

• Commercial/Residential: Commercial
• Grade: Grade 1
• Product Category: Exit Devices and Trim
• Product Function: Device Only - Exit Only
• Product Group: Exit Devices and Trim
• Product Model: 80/81
• Product Subgroup: Exit Devices - Vertical Rod
• Product Type: Exit Devices - Vertical Rod
• Series: 80/81 Series
• Stile: Wide (For Hollow Metal Doors)
• Stile Type: Wide Stile
• Subcategory: Advantex Series
• Warranty: 10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty

Installation & Operation

1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

• Commercial Office Buildings
• Educational Facilities
• Healthcare Institutions
• Retail Establishments
• Industrial and Warehouse Facilities
• Multi-Tenant Residential Properties
• Government and Municipal Buildings

Why Choose Detex Quality?

Detex 80/81 Advantex Series exit devices deliver professional-grade reliability with super-heavy duty construction and patented deadlocking technology rated for demanding commercial applications. The 10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty demonstrates Detex commitment to long-term performance. Engineered for high-use, high-abuse environments where dependable panic hardware performance is essential.
