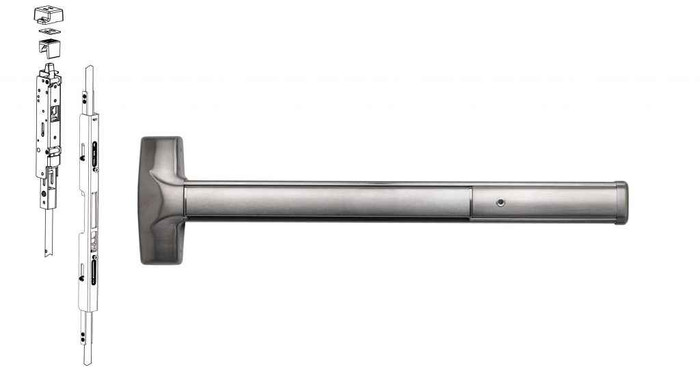

Detex Advantex 82/83 Series Concealed Vertical Rod Exit Device with Wide Stile Design and Blank Escutcheon

Detex Advantex 82/83 Series Concealed Vertical Rod Exit Device with Wide Stile Design and Blank Escutcheon

Professional Concealed Vertical Rod Exit Device for Wide Stile Aluminum Doors

The Detex Advantex 82/83 Series Concealed Vertical Rod Exit Device delivers Grade 1 commercial-grade performance specifically engineered for wide stile aluminum doors without mullions. This super-heavy-duty panic and fire exit hardware features a patented mounting plate system that ensures the easiest and most accurate installation available, while enhancing architectural aesthetics of any decor. The field-reversible, field-sizeable design provides maximum installation flexibility for demanding commercial applications.

Professional Features & Benefits

• Wide Stile Aluminum Door Compatibility: Specifically designed for wide stile aluminum doors without mullions, providing optimal fit and performance for modern commercial construction.
• Heavy-Duty Construction: Super-heavy-duty design engineered for years of trouble-free service in high-use, high-abuse environments with durable steel bottom drop bolt.
• Patented Mounting System: Patented mounting plate system ensures the easiest and most accurate installation of panic hardware available, saving time and money.
• 6-Position Multi-Step Action: Advanced top latch mechanism keeps top and bottom bolts retracted until door closes, providing more consistent re-latching and enhanced security.
• Adjustable Top Strike: Fully adjustable both vertically and to accommodate varying weather strip thicknesses while securing the door and re-engaging latchbolts.
• Patented Deadlocking System: Patented deadlocking of top and bottom bolt assemblies provides superior security and reliable operation.
• Field Reversible & Sizeable: Handed field-reversible design with easily adjustable rods while installed in door for maximum installation flexibility.
• Manufacturer Warranty: 10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty for added confidence and protection.

Technical Specifications

• Commercial/Residential: Commercial
• Grade: Grade 1
• Product Category: Exit Devices and Trim
• Product Function: Blank Escutcheon
• Product Group: Exit Devices and Trim
• Product Model: 8201DV/8301DV
• Product Subgroup: Exit Devices - Vertical Rod
• Product Type: Exit Devices - Vertical Rod
• Series: 82/83 Series
• Stile: Wide (For Aluminum Doors)
• Stile Type: Wide Stile
• Subcategory: Advantex Series
• Warranty: 10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty

Installation & Operation

1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

• Commercial Office Buildings
• Educational Facilities
• Healthcare Institutions
• Retail Establishments
• Industrial and Warehouse Facilities
• Multi-Tenant Residential Properties
• Government and Municipal Buildings

Why Choose Detex Quality?

Detex Advantex Series exit devices deliver professional-grade reliability with super-heavy-duty construction and patented mounting technology designed for high-use, high-abuse commercial environments. The 10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty demonstrates the company's confidence in their Grade 1 rated hardware. Engineered for demanding commercial applications where dependable performance and architectural aesthetics are essential.
