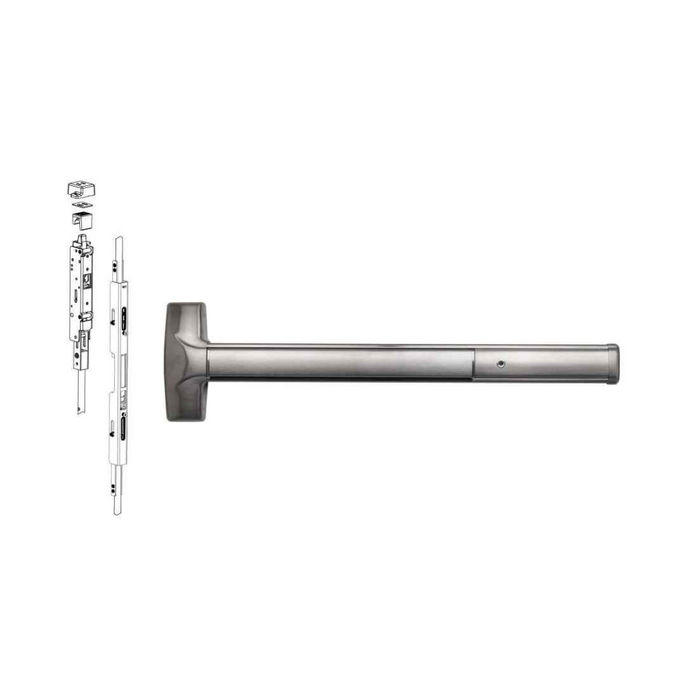

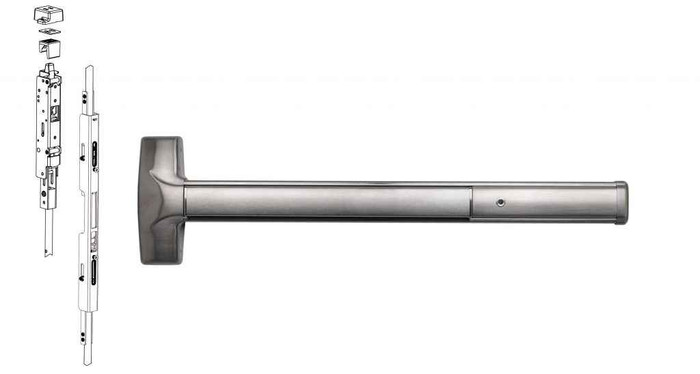

Detex Advantex 82/83 Series Concealed Vertical Rod Exit Device with Key Retracts Latch Cylinder Trim - Wide Stile

Detex Advantex 82/83 Series Concealed Vertical Rod Exit Device with Key Retracts Latch Cylinder Trim - Wide Stile

Professional Concealed Vertical Rod Exit Device for Wide Stile Aluminum Doors

The Detex Advantex 82/83 Series concealed vertical rod exit device combines architectural aesthetics with super-heavy-duty panic and fire exit hardware performance. Specifically designed for wide stile aluminum doors without a mullion, this Grade 1 device features a patented mounting plate system for accurate installation and field-reversible operation. The 6-position multi-step action in the top latch provides enhanced security by keeping top and bottom bolts retracted until door closes.

Professional Features & Benefits

• Wide Stile Aluminum Door Compatibility: Engineered specifically for wide stile aluminum doors without mullion requirements for versatile commercial applications.
• Heavy-Duty Construction: Super-heavy-duty design with durable steel bottom drop bolt (82 Series) for years of trouble-free service in high-use, high-abuse environments.
• Patented Mounting System: Patented mounting plate system ensures the easiest and most accurate installation of panic hardware available with minimal door preparation.
• 6-Position Multi-Step Action: Advanced top latch mechanism keeps top and bottom bolts retracted until door closes, providing more consistent re-latching and enhanced security.
• Field-Reversible Design: Handed device with field-reversible capability and field-sizeable rods that are easily adjustable with rods installed in door.
• Adjustable Strike System: Top strike fully adjustable both vertically and to accommodate varying weather strip thicknesses while securing the door and re-engaging latchbolts.
• Grade 1 Certification: BHMA Grade 1 rated for demanding commercial applications requiring the highest performance standards.
• Manufacturer Warranty: 10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty for added confidence and protection.

Technical Specifications

• Commercial/Residential: Commercial
• Grade: Grade 1
• Product Category: Exit Devices and Trim
• Product Function: Key Retracts Latch Cylinder Trim
• Product Group: Exit Devices and Trim
• Product Model: 8203WSV/8303WSV
• Product Subgroup: Exit Devices - Vertical Rod
• Product Type: Exit Devices - Vertical Rod
• Series: 82/83 Series
• Stile: Wide (For Aluminum Doors)
• Stile Type: Wide Stile
• Subcategory: Advantex Series
• Warranty: 10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty

Installation & Operation

1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

• Commercial Office Buildings
• Educational Facilities
• Healthcare Institutions
• Retail Establishments
• Industrial and Warehouse Facilities
• Multi-Tenant Residential Properties
• Government and Municipal Buildings

Why Choose Detex Quality?

Detex Advantex Series exit devices deliver professional-grade reliability with super-heavy-duty construction and patented deadlocking bolt assemblies designed for demanding commercial applications. The 10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty demonstrates confidence in long-term performance. Engineered for high-use, high-abuse environments where dependable panic hardware performance is essential.
