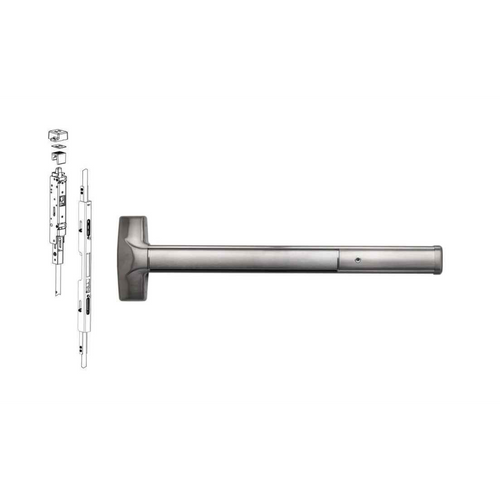

Detex Advantex 87 Series High Security Concealed Vertical Rod Exit Device with Key Retracts Latch Pull Trim

Detex Advantex 87 Series High Security Concealed Vertical Rod Exit Device with Key Retracts Latch Pull Trim

Professional High Security Exit Device Solution

The Detex Advantex 87 Series high security concealed vertical rod exit device combines architectural aesthetics with super-heavy-duty panic and fire exit hardware performance. Designed for hollow metal doors without a mullion, this Grade 1 device features a patented mounting plate system for accurate installation and field-reversible operation. The wide stile design accommodates various door configurations while providing enhanced security through patented deadlocking of top and bottom bolt assemblies.

Professional Features & Benefits

• Grade 1 Heavy-Duty Construction: Super-heavy-duty design engineered for years of trouble-free service in high-use, high-abuse commercial environments.
• Patented Security Features: 6-position multi-step action in top latch keeps top and bottom bolts retracted until door closes, providing consistent re-latching and enhanced door security.
• Wide Stile Compatibility: Specifically designed for hollow metal doors without mullions, accommodating wide stile configurations for versatile installation options.
• Field-Reversible Operation: Handed device can be field-reversed for flexible installation requirements without requiring different hardware.
• Patented Mounting System: Patented mounting plate system ensures the easiest and most accurate installation of panic hardware available, saving time and money.
• Adjustable Components: Top strike fully adjustable both vertically and to accommodate varying weather strip thicknesses, with easily adjustable rods while installed in door.
• Durable Steel Construction: Features durable steel bottom drop bolt and heavy duty angled end cap that deflects damage away from device for long-term reliability.
• Manufacturer Warranty: 10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty for added confidence and protection.

Technical Specifications

• Commercial/Residential: Commercial
• Grade: Grade 1
• Product Category: Exit Devices and Trim
• Product Function: Key Retracts Latch Cylinder Trim
• Product Group: Exit Devices and Trim
• Product Model: 8703CV
• Product Subgroup: Exit Devices - Vertical Rod
• Product Type: Exit Devices - Vertical Rod
• Series: 87 Series
• Stile: Wide (For Hollow Metal Doors)
• Stile Type: Wide Stile
• Subcategory: Advantex Series
• Warranty: 10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty

Installation & Operation

1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

• Commercial Office Buildings
• Educational Facilities
• Healthcare Institutions
• Retail Establishments
• Industrial and Warehouse Facilities
• Multi-Tenant Residential Properties
• Government and Municipal Buildings

Why Choose Detex Quality?

Detex Advantex 87 Series exit devices deliver professional-grade reliability with super-heavy-duty construction and patented security features designed for demanding commercial applications. The Grade 1 rating and 10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty demonstrate the exceptional durability and performance standards. Engineered for high-use, high-abuse environments where dependable panic hardware performance is essential.
