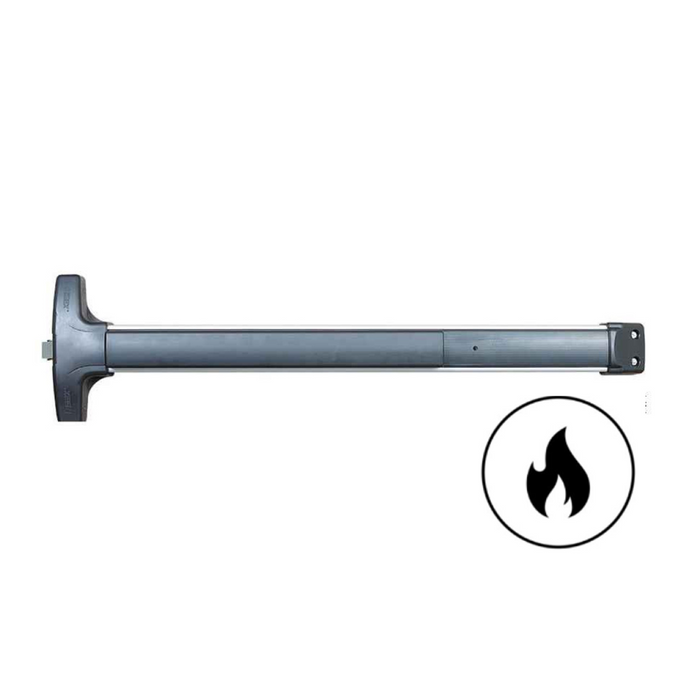

Detex V40 Series 36" Fire Rated Wide Stile Rim Exit Device

Detex V40 Series 36" Fire Rated Wide Stile Rim Exit Device

Grade 1 Fire Rated Panic Hardware for Commercial Applications

The Detex V40 Series rim exit device delivers Grade 1 panic and fire exit hardware performance at an economical price point. Designed for 36" wide stile applications, this fire rated exit device features a patented mounting plate and strike locator system for precise installation. The heavy-duty ribbed aluminum rail extrusion with stainless steel 3/4" deadlocking Pullman-type latch bolt withstands over 1400 pounds of static pull force for enhanced security.

Professional Features & Benefits

• 36" Wide Stile Design: Specifically engineered for 36" door applications with wide stile compatibility for versatile installation options.
• Heavy-Duty Security Performance: Withstands over 1400 pounds of static pull force with stainless steel 3/4" deadlocking Pullman-type latch bolt for superior security.
• Fire Rated Construction: Grade 1 fire rated panic hardware meets stringent commercial building safety requirements and code compliance.
• Patented Installation System: Mounting plate and strike locator system replaces paper templates for the most accurate and easiest installation available.
• Durable Aluminum Construction: Heavy-duty ribbed aluminum rail extrusion with high impact ABS and anodized surfaces provides long-lasting performance.
• Modular Design Flexibility: Accepts a variety of outside trims and functions with field sizeable, non-handed configuration for adaptable applications.
• Manufacturer Warranty: 10 Year Mechanical/3 Year Electrical Limited Manufacturer's Warranty for added confidence and protection.
• Minimal Door Preparation: Covers a 161 door prep with 1/8 turn hex key dogging for efficient installation and operation.

Technical Specifications

• Commercial/Residential: Commercial
• Duty Level: Heavy-Duty
• Fire Rating: Yes
• Grade: Grade 1
• Product Category: Exit Devices and Trim
• Product Group: Exit Devices and Trim
• Product Model: V40
• Product Size: 36"
• Product Subgroup: Exit Devices - Rim
• Product Type: Exit Devices - Rim
• Series: V40 Series
• Stile Type: Wide Stile
• Subcategory: Value Series
• Warranty: 10 Year Mechanical/3 Year Electrical Limited Manufacturer's Warranty
• Weatherized: No
• Wood Door Compatible: No

Installation & Operation

1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

• Commercial Office Buildings
• Educational Facilities
• Healthcare Institutions
• Retail Establishments
• Industrial and Warehouse Facilities
• Multi-Tenant Residential Properties
• Government and Municipal Buildings

Why Choose Detex Quality?

Detex V40 Series exit devices deliver professional-grade reliability with heavy-duty ribbed aluminum construction and stainless steel components rated to withstand over 1400 pounds of static pull force. The 10 Year Mechanical/3 Year Electrical Limited Manufacturer's Warranty provides comprehensive coverage for demanding commercial applications. Engineered for demanding commercial applications where dependable fire rated performance and Grade 1 security are essential.
