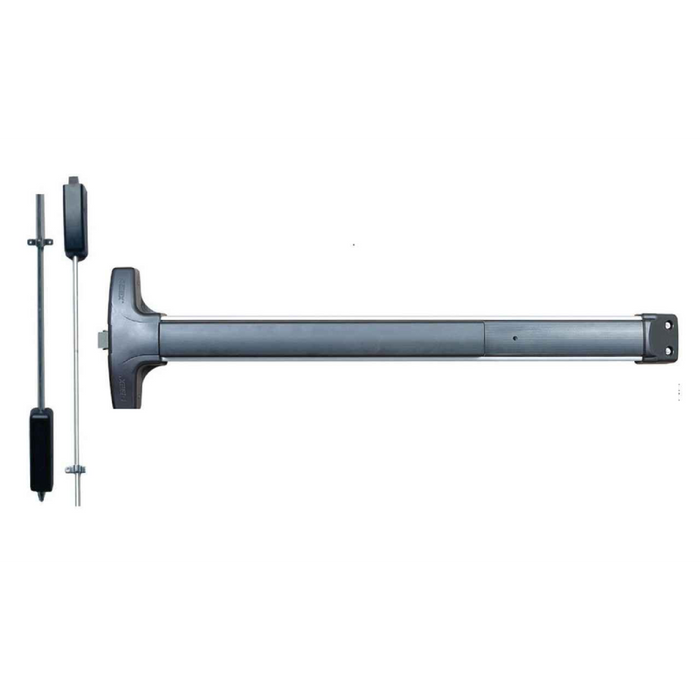

Detex V5001P/V5101P Value Series Surface Vertical Rod Exit Device with Cover Plate

Detex V5001P/V5101P Value Series Surface Vertical Rod Exit Device with Cover Plate

Heavy-Duty Panic and Fire Exit Hardware for Double Doors

The Detex V5001P/V5101P Value Series Surface Vertical Rod Exit Device delivers professional-grade panic and fire exit hardware designed for double doors without a mullion. This Grade 1 exit device features a stainless steel 3/4" deadlocking top latch bolt and 5/8" diameter x 5-5/8" long bottom drop bolt for secure operation. The patented mounting plate and strike locator system ensures accurate installation while the ribbed aluminum rail extrusion and impact resistant ABS construction provide long-term durability.

Professional Features & Benefits

• Heavy-Duty Latch System: Stainless steel 3/4" deadlocking top latch bolt with 5/8" diameter x 5-5/8" long bottom drop bolt for reliable securing into strike plate.
• Patented Installation System: Mounting plate and strike locator system replaces paper templates for the easiest and most accurate installation while saving time and money.
• Minimal Door Preparation: Field sizable design with minimal door prep requirements reduces installation time and costs.
• Impact Protection: Angled end cap deflects damage away from device while ribbed aluminum rail extrusion provides structural durability.
• Flexible Configuration: Handed, field reversible design with 1/8 turn dogging for operational convenience.
• Grade 1 Performance: BHMA Grade 1 rating ensures commercial-grade reliability for demanding applications.
• Modular Trim System: Accepts a variety of outside trims and functions with standard and narrow stile pull trims available for design flexibility.
• Manufacturer Warranty: 10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty for added confidence and protection.

Technical Specifications

• Commercial/Residential: Commercial
• Grade: Grade 1
• Product Category: Exit Devices and Trim
• Product Function: Cover Plate
• Product Group: Exit Devices and Trim
• Product Model: V5001P/V5101P
• Product Subgroup: Exit Devices - Vertical Rod
• Product Type: Exit Devices - Vertical Rod
• Series: V50/V51 Series
• Stile: Wide
• Stile Type: Wide Stile
• Subcategory: Value Series
• Warranty: 10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty

Installation & Operation

1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

• Commercial Office Buildings
• Educational Facilities
• Healthcare Institutions
• Retail Establishments
• Industrial and Warehouse Facilities
• Multi-Tenant Residential Properties
• Government and Municipal Buildings

Why Choose Detex Quality?

Detex Value Series exit devices deliver professional-grade reliability with stainless steel latch components and impact resistant ABS construction rated for Grade 1 commercial performance. The 10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty provides comprehensive coverage for peace of mind. Engineered for demanding commercial applications where dependable panic hardware performance and fire safety compliance are essential.
