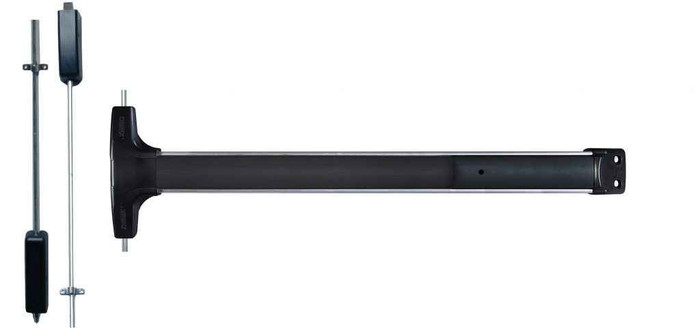

Detex V5001PNxNS/V5101PNxNS Value Series Narrow Stile Surface Vertical Rod Exit Device with Cover Plate

Detex V5001PNxNS/V5101PNxNS Value Series Narrow Stile Surface Vertical Rod Exit Device with Cover Plate

Economical Panic and Fire Exit Hardware for Narrow Stile Double Doors

The Detex V5001PNxNS/V5101PNxNS Value Series represents economical panic and fire exit hardware specifically designed for narrow stile double doors without a mullion. This Grade 1 vertical rod exit device features a patented mounting plate and strike locator system that ensures the easiest and most accurate installation. The device includes a stainless steel 3/4" deadlocking top latch bolt and 5/8" diameter x 5-5/8" long bottom drop bolt for secure operation.

Professional Features & Benefits

• Narrow Stile Compatibility: Specifically engineered for narrow stile double doors without mullion requirements for versatile installation options.
• Patented Installation System: Mounting plate and strike locator system replaces paper templates for the easiest and most accurate installation process.
• Grade 1 Performance: BHMA Grade 1 rating ensures commercial-grade durability and reliability for high-traffic applications.
• Dual Bolt Security: Stainless steel 3/4" deadlocking top latch bolt and 5/8" diameter x 5-5/8" long bottom drop bolt provide comprehensive door security.
• Field Reversible Design: Handed, field reversible configuration allows adaptation to various door orientations without additional hardware.
• Durable Construction: Ribbed aluminum rail extrusion with impact resistant ABS and anodized surfaces for long-term commercial performance.
• Modular Trim System: Accepts a variety of outside trims and functions with easy changeout or rekeying without removing device from door.
• Manufacturer Warranty: 10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty for added confidence and protection.

Technical Specifications

• Commercial/Residential: Commercial
• Grade: Grade 1
• Product Category: Exit Devices and Trim
• Product Function: Cover Plate
• Product Group: Exit Devices and Trim
• Product Model: V5001PNxNS/V5101PNxNS
• Product Subgroup: Exit Devices - Vertical Rod
• Product Type: Exit Devices - Vertical Rod
• Series: V50xNS/V51xNS Series
• Stile: Narrow
• Stile Type: Narrow Stile
• Subcategory: Value Series
• Warranty: 10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty

Installation & Operation

1. Review manufacturer specifications and verify door preparation requirements including door thickness, narrow stile width, and handing as applicable to this vertical rod device.
2. Use the patented mounting plate and strike locator system to mark mounting hole locations accurately on door and frame surfaces, eliminating the need for paper templates.
3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions with minimal door prep requirements.
4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications, utilizing the field sizable design.
5. Adjust operational components including the 1/8 turn dogging mechanism for proper alignment, latching, and smooth operation throughout the full range of motion.
6. Test device operation to verify proper function of both top latch bolt and bottom drop bolt, making final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

• Commercial Office Buildings
• Educational Facilities
• Healthcare Institutions
• Retail Establishments
• Industrial and Warehouse Facilities
• Multi-Tenant Residential Properties
• Government and Municipal Buildings

Why Choose Detex Quality?

Detex Value Series exit devices deliver professional-grade reliability with Grade 1 performance rating and durable ribbed aluminum rail extrusion construction. The 10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty provides comprehensive coverage for demanding commercial applications. Engineered for demanding commercial applications where dependable performance and economical value are essential.
