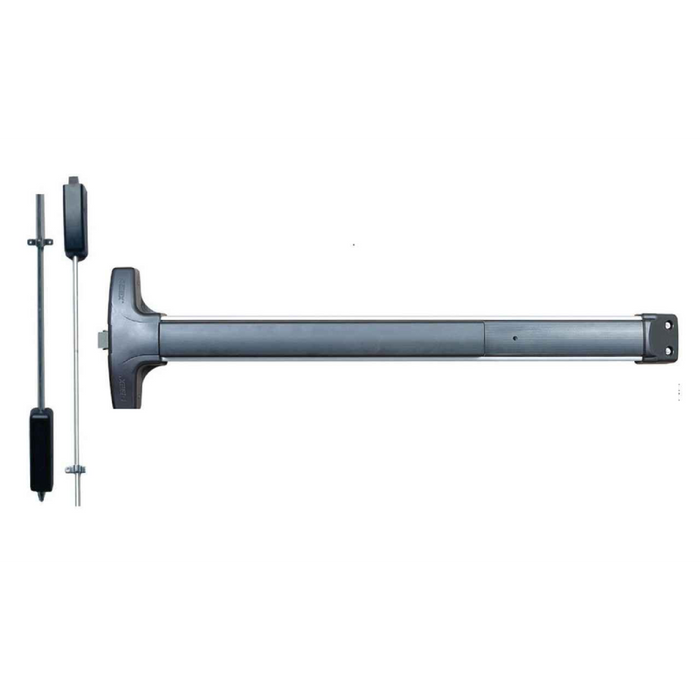

Detex V50/V51 Value Series Surface Vertical Rod Exit Device with Dummy Pull Trim - Wide Stile

Detex V50/V51 Value Series Surface Vertical Rod Exit Device with Dummy Pull Trim - Wide Stile

Heavy-Duty Panic and Fire Exit Hardware for Double Doors

The Detex V50/V51 Value Series Surface Vertical Rod Exit Device delivers professional-grade panic and fire exit hardware designed for double doors without a mullion. This Grade 1 device features a stainless steel 3/4" deadlocking top latch bolt and 5-5/8" long bottom drop bolt for secure operation. The patented mounting plate and strike locator system ensures accurate installation while the wide stile design accommodates various door configurations with minimal preparation requirements.

Professional Features & Benefits

• Heavy-Duty Latch System: Stainless steel 3/4" deadlocking top latch bolt with 5/8" diameter x 5-5/8" long bottom drop bolt for reliable securing into strike plate.
• Patented Installation System: Mounting plate and strike locator system replaces paper templates for the easiest and most accurate installation in an economical panic device.
• Minimal Door Preparation: Field sizable design with minimal door prep requirements saves installation time and reduces costs.
• Durable Construction: Ribbed aluminum rail extrusion with impact resistant ABS and anodized surfaces for long-term commercial performance.
• Field Reversible Operation: Handed design with field reversible capability allows adaptation to various door configurations without device replacement.
• Modular Trim System: Accepts a variety of outside trims and functions with easily changeable or rekeyable outside trims without removing device from door.
• Wide Stile Compatibility: Wide stile design accommodates doors with larger stile dimensions for versatile installation options.
• Manufacturer Warranty: 10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty for added confidence and protection.

Technical Specifications

• Commercial/Residential: Commercial
• Grade: Grade 1
• Product Category: Exit Devices and Trim
• Product Finish: 628 - Aluminum
• Product Function: Dummy Pull Trim
• Product Group: Exit Devices and Trim
• Product Model: V5002WP/V5102WP
• Product Subgroup: Exit Devices - Vertical Rod
• Product Type: Exit Devices - Vertical Rod
• Series: V50/V51 Series
• Stile: Wide
• Stile Type: Wide Stile
• Subcategory: Value Series
• Warranty: 10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty

Installation & Operation

1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

• Commercial Office Buildings
• Educational Facilities
• Healthcare Institutions
• Retail Establishments
• Industrial and Warehouse Facilities
• Multi-Tenant Residential Properties
• Government and Municipal Buildings

Why Choose Detex Quality?

Detex V50/V51 Value Series exit devices deliver professional-grade reliability with stainless steel latch components and impact resistant construction rated for Grade 1 commercial applications. The 10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty provides comprehensive coverage for demanding commercial installations. Engineered for demanding commercial applications where dependable panic hardware performance and easy installation are essential.
