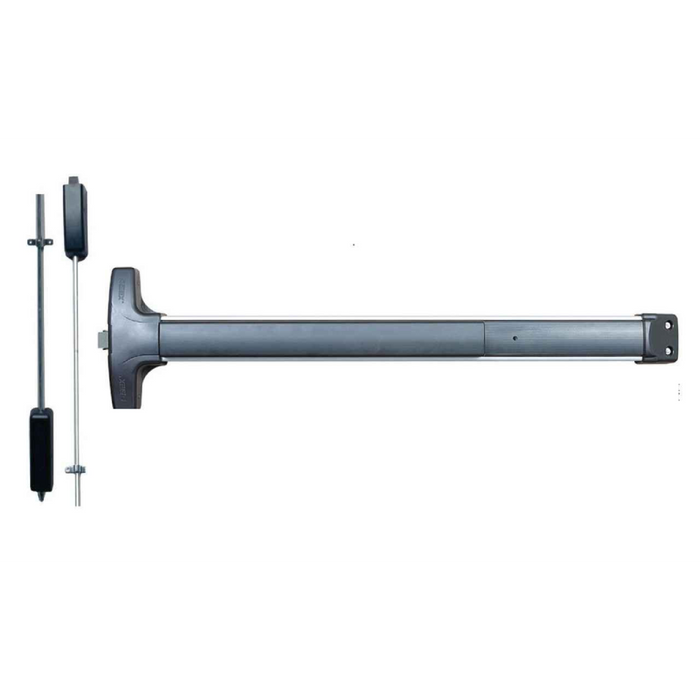

Detex V50/V51 Value Series Surface Vertical Rod Exit Device with Lever Always Active

Detex V50/V51 Value Series Surface Vertical Rod Exit Device with Lever Always Active

Heavy-Duty Panic and Fire Exit Hardware for Double Doors

The Detex V50/V51 Value Series Surface Vertical Rod Exit Device delivers professional-grade panic and fire exit hardware designed for double doors without a mullion. This Grade 1 exit device features a stainless steel 3/4" deadlocking top latch bolt and 5-5/8" long bottom drop bolt for secure operation. The patented mounting plate and strike locator system ensures accurate installation while the ribbed aluminum rail extrusion and impact-resistant ABS construction provide long-term durability in commercial applications.

Professional Features & Benefits

• Patented Installation System: Mounting plate and strike locator replaces paper templates for the easiest and most accurate installation in an economical panic device.
• Heavy-Duty Locking Mechanism: Stainless steel 3/4" deadlocking top latch bolt with 5/8" diameter x 5-5/8" long bottom drop bolt secures into strike plate for reliable security.
• Durable Construction: Ribbed aluminum rail extrusion with impact-resistant ABS and anodized surfaces withstand heavy commercial use.
• Field Configurable: Handed, field reversible design with field sizable capability and 1/8 turn dogging for operational flexibility.
• Modular Design: Accepts a variety of outside trims and functions with standard and narrow stile pull trims available for versatile applications.
• Damage Protection: Angled end cap deflects damage away from device to maintain operational integrity.
• Easy Maintenance: Outside trims are easily changed or rekeyed without removing device from door for convenient service.
• Manufacturer Warranty: 10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty for added confidence and protection.

Technical Specifications

• Commercial/Residential: Commercial
• Grade: Grade 1
• Product Category: Exit Devices and Trim
• Product Function: Lever Always Active
• Product Group: Exit Devices and Trim
• Product Model: V5014BN/V5114BN
• Product Subgroup: Exit Devices - Vertical Rod
• Product Type: Exit Devices - Vertical Rod
• Series: V50/V51 Series
• Stile: Wide
• Stile Type: Wide Stile
• Subcategory: Value Series
• Warranty: 10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty

Installation & Operation

1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
2. Use the patented mounting plate and strike locator system to mark mounting hole locations accurately on door and frame surfaces, eliminating the need for paper templates.
3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions with minimal door preparation required.
4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
5. Adjust operational components including the 1/8 turn dogging mechanism for proper alignment, latching, and smooth operation throughout the full range of motion.
6. Test device operation to verify proper function of the deadlocking top latch bolt and bottom drop bolt, making final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

• Commercial Office Buildings
• Educational Facilities
• Healthcare Institutions
• Retail Establishments
• Industrial and Warehouse Facilities
• Multi-Tenant Residential Properties
• Government and Municipal Buildings

Why Choose Detex Quality?

Detex V50/V51 Value Series exit devices deliver professional-grade reliability with stainless steel deadlocking mechanisms and impact-resistant ABS construction rated for Grade 1 commercial applications. The 10 Year Mechanical/3 year Electrical Limited Manufacturer's Warranty provides comprehensive coverage for demanding commercial installations. Engineered for demanding commercial applications where dependable panic hardware performance and easy installation are essential.
