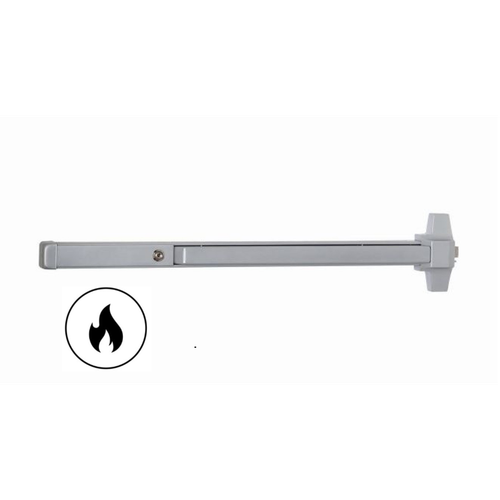

Dexter ED1500 Series - 3FT Grade 1 Rim Exit Devices

The 36 inch ED1500 device covers doors from 29 inches up to 36 inches wide. Anything wider than that goes to the 48 inch device, which covers 33 inch to 48 inch doors. Don't size the device to the opening, size it to the door leaf, and on a pair each leaf gets its own device sized to that leaf.

No handing to specify. Every ED1500 device and every trim option in the series is non-handed, so one part number covers a left or right hand swing. That is worth knowing for a property manager stocking spares across a building: one device on the shelf fits any opening in the fleet.

The Dexter ED1500-R is carried as not wood door compatible. Among rim exit devices carried as wood door compatible, the Adams Rite 8700 Series in the 30 inch size is a Grade 1 narrow stile rim device, and the Adams Rite 3700 Series 30 inch is a Grade 1 narrow stile rim device that is also fire rated. Note that the Adams Rite 8800 Series, despite sitting next to the 8700 in the same narrow stile family, is carried as not wood door compatible.

The ED1500-R carries a Fire Rating value of No, so for a labeled opening choose a device carried as fire rated. Marks USA M9900F is a fire rated rim exit device in exit only function, offered in 36 inch and 48 inch. Orca Hardware OED85 is a fire rated 36 inch rim exit device in exit only. Adams Rite 3700 in the 30 inch size is a fire rated Grade 1 narrow stile rim device, and Arrow FS1250 is a fire rated 32 inch rim device for a 1-3/4 inch door.

The Dexter ED1500 requires a 4-1/4 inch minimum stile width, which rules out most narrow stile aluminum storefront. For those openings, narrow stile rim devices include the Falcon 19-R in 36 inch exit only, Grade 1, for a 1-3/4 inch door; the Corbin Russwin ED4200, Grade 1 narrow stile at 36 inch; and the TownSteel ED3700 and ED8900, both Grade 1 heavy duty narrow stile at 36 inch. Adams Rite 8700 and 8800 in the 30 inch size are narrow stile Grade 1 rim devices as well.

The ED1500-R is a mechanical exit only device with hex key dogging. For an electrified opening, the SDC S6136 Spectra is an electrified architectural rim exit device at 36 inch with a 4 inch wide stile, fitting doors 1-3/4 inch to 2 inch. The Dormakaba E2103 with 4908A trim is an electrified 36 inch rim exit device in classroom function. The SDC MSB550 36 inch mechanical switch bar releases an electromagnetic lock rather than latching the door itself, and the SDC PSB560 SureExit 36 inch is a pressure sense bar, so neither is a like-for-like latching rim device.

The Von Duprin 22-3FT is the nearest match: a Grade 1 wide stile pushpad rim exit device for a 36 inch door, non-handed, fitting a 1-3/4 inch door, and not wood door compatible. The Dexter ED1500-R is likewise a Grade 1 rim device sized 36 inch, exit only, and not wood door compatible. TownSteel ED1100 in the 36 inch size is another Grade 1 heavy duty wide stile panic rim device, and Corbin Russwin ED2200 is a Grade 1 36 inch rim device in exit only function.

The Dexter ED1500 devices fit a standard 1-3/4 inch thick door. For a thicker leaf, the Adams Rite 8800 Series is carried for a door thickness range of 1-3/4 inch to 2-1/4 inch, and the Dormakaba 9300A covers the same 1-3/4 inch to 2-1/4 inch range as a Grade 1 heavy duty wide stile device. The SDC S6136 covers 1-3/4 inch to 2 inch, and the Securitron EMB electromechanical exit bar is carried at 2-1/4 inch.

Hex key dogging comes standard on the ED1500 panic device. You depress the pushpad and turn the hex key, and the latch stays retracted so the door pushes free until you undog it. That is the usual setup for a storefront or office entry that has to stay open all day and lock at close. Fire openings are the exception, dogging is not allowed there.

A rim device like the ED1500 latches into a surface strike on the frame at the door edge, which is the simple, low-maintenance answer for a single door in a frame. It is the wrong choice for a pair of doors with no center mullion, because there is nothing on the frame for the strike to catch. For that opening you want vertical rods, top and bottom latching: the Hager 4501 is a 36 inch Grade 1 concealed vertical rod device with a wide stile pushpad, and the Hager 4601 is the narrow stile concealed rod version.

Deadlatching is standard on the ED1500, so the auxiliary latch blocks the main latchbolt from being pushed back once the door closes. That is what stops a card or shim being slipped past the strike on an exterior opening, and it is why this device is worth specifying on a perimeter door rather than an interior one.

It is a Grade 1 device with an aluminum mechanism case, which is the top ANSI/BHMA durability tier for exit hardware and the level institutional specs normally call for. For a Grade 1 alternative with a comparable duty rating, the Von Duprin 22 Series 36 inch wide stile pushpad rim device and the TownSteel ED9700 36 inch heavy duty Grade 1 rim device are both carried. Note that Cal-Royal's 5000 and 5500 rim devices are Grade 2, a step down, so don't swap those into a Grade 1 spec.

The 36 inch ED1500 device covers 29 inch to 36 inch door sizes; Dexter also builds a 48 inch device covering 33 inch to 48 inch. Peers at the wider size include the Sargent 2828 and Sargent 3828, both Grade 1 reversible rim devices in exit only for 48 inch doors, the Corbin Russwin ED3200 Grade 1 48 inch crossbar device, the Dormakaba 9300A Grade 1 48 inch wide stile device, and the Marks USA M9900F at 48 inch when the opening is fire rated.

They are not the same certification. The ED1500-R is Grade 1. The Cal-Royal 5000 at 36 inch and the Cal-Royal 5500 at 48 inch are carried as Grade 2 heavy duty rim exit devices, as are the Cal-Royal A9800 36 inch and A9820 48 inch. If the specification on the drawing calls for Grade 1, stay with a Grade 1 device such as the Von Duprin 22-3FT wide stile pushpad or the Hager 4701 Series 36 inch rim device.

The ED1500-R is a rim panic device with hex key dogging standard and a pushpad style actuator. Crossbar rim devices use a horizontal bar across the door face instead: the Corbin Russwin ED3200 is a Grade 1 48 inch crossbar rim device for a 1-3/4 inch door, and the CRL Jackson 1095 Series 48 inch is a crossbar rim panic device in wide stile, exit only. Crossbar and pushpad devices are not interchangeable in the door prep, so confirm which style the existing hardware used before ordering.

The Dexter ED1500-R is ordered exit only or with added trim, including a classroom key-in-lever round rose. Among peers, the Corbin Russwin ED5200 Grade 1 36 inch wide stile and the Corbin Russwin ED4200 Grade 1 36 inch narrow stile are both carried as exit only or accepting trim, each for a 1-3/4 inch door. The Sargent 8504 is a narrow stile Grade 1 rim device in night latch function, which is key retraction of the latch rather than a classroom lever.

The ED1500-R is a Grade 1 device with an aluminum mechanism case and deadlatching standard. Where a heavier duty rating is wanted, Detex Advantex devices are carried at extra heavy duty: the Detex 10 Series at 36 inch is extra heavy duty Grade 1 wide stile, and the Detex 40 Series is extra heavy duty Grade 1 narrow stile. Dormakaba 9300A at 48 inch is a Grade 1 heavy duty wide stile device fitting doors 1-3/4 inch to 2-1/4 inch.

Hex key dogging is standard on all Dexter ED1500 panic devices. Design Hardware carries it as well, on both the 1000R heavy duty rim device and the 2000R standard duty rim device, each at 33 inch. The Stanley Security QED200 Series is a Grade 1 heavy duty narrow stile rim device with hex key dogging. Dogging is not available on fire rated devices, so an opening requiring a label rules the feature out.

No. The ED1500-R is a UL listed panic device with deadlatching. A dummy device such as the Detex Advantex 00 Series wide stile unit has no latching function and is used to match appearance on an inactive leaf, and the Sargent 12-8810-LTRIM is carried in dummy function. A paddle device such as the CRL Jackson 1095P wide stile rim panic uses a paddle actuator instead of a pushpad. Order the dummy only where a non-latching match is wanted.

Yes. The ED1500 rim device is made in a 36 inch size covering 29 to 36 inch doors and a 48 inch size covering 33 to 48 inch doors, both in the same two painted finishes and both non-handed. So a property manager standardizing across a building can run the same device, same look, same hex key for dogging, on every opening and just change the bar length to suit the leaf.
