Don-Jo MELP-210-EBF Latch Protector for Electric Strikes with EBF Fasteners, 2-5/8" x 10" Steel

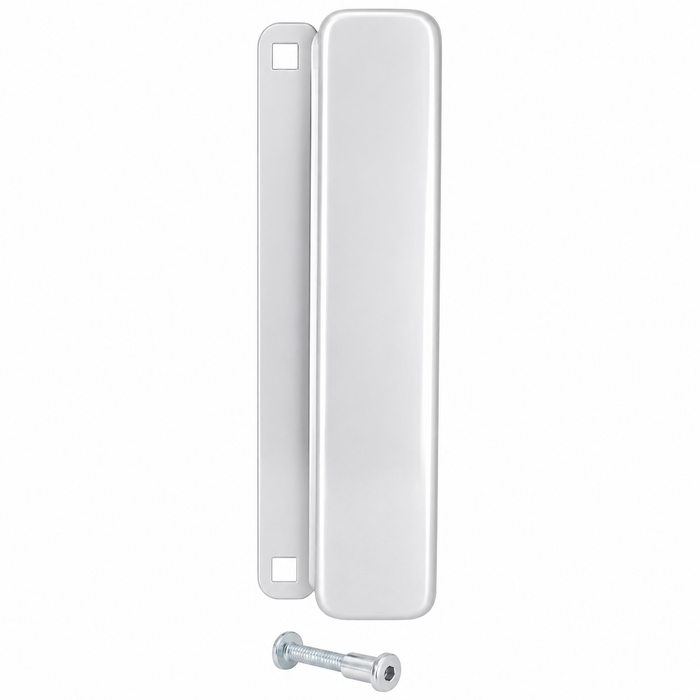

The Don-Jo MELP-210-EBF is a heavy-duty commercial latch protector engineered specifically for use with electric strikes and mortise locks on out-swing doors. Constructed from 12-gauge steel (.104 thickness), this latch protector measures 2-5/8" wide by 10" long, providing robust coverage and tamper resistance for demanding commercial applications. Included EBF fasteners ensure a secure, professional installation, and the unit is available in DU and SL finishes to complement a variety of door hardware configurations.

Key Features

  • Precise Dimensions: Measures 2-5/8" wide by 10" long, delivering comprehensive latch and strike coverage on commercial out-swing doors.
  • Heavy-Gauge Steel Construction: Fabricated from 12-gauge (.104) steel for exceptional strength, rigidity, and long-term durability in high-traffic commercial environments.
  • EBF Fasteners Included: Comes complete with EBF fasteners for a secure, tamper-resistant installation without the need for additional hardware.
  • Electric Strike & Mortise Lock Compatibility: Specifically designed to work with electric strikes and mortise locks, making it an ideal complement to access control systems.
  • Out-Swing Door Application: Engineered for out-swing door configurations, providing reliable latch protection where it is most needed.
  • Available Finishes: Offered in DU and SL finishes to coordinate with existing door hardware and architectural aesthetics.
  • Commercial Grade: Rated for commercial use, suitable for high-traffic facilities requiring dependable latch protection and security reinforcement.
  • Convenient Shelf Pack: Available in a shelf pack of 10 units, ideal for contractors and distributors managing multiple installations.

Certifications & Compliance

  • Commercial Grade — Rated for Commercial Applications
  • Compatible with Electric Strike Access Control Systems

Technical Specifications

  • Subcategory: Latches & Catches
  • Product Group: Door Trim and Accessories
  • Product Subgroup: Door Trim and Latch Protection
  • Product Type: Latch Protectors
  • Commercial/Residential: Commercial
  • Electronic: Yes
  • Product Category: Door Trim and Accessories
  • Department: Door Hardware

Typical Applications

  • Commercial Office Buildings with Electric Strike Access Control
  • Educational Facilities and School Campuses
  • Healthcare Institutions and Medical Office Buildings
  • Retail Establishments and Shopping Centers
  • Industrial and Warehouse Facilities
  • Government and Municipal Buildings
  • Multi-Tenant Residential and Mixed-Use Properties

Why Don-Jo MELP-210-EBF?

Don-Jo latch protectors are built to professional commercial standards, with the MELP-210-EBF featuring 12-gauge (.104) steel construction that delivers the rigidity and durability required in high-traffic, security-sensitive environments. Designed specifically for compatibility with electric strikes and mortise locks on out-swing doors, this latch protector provides a purpose-built solution that integrates seamlessly with modern access control systems, ensuring dependable performance where it matters most.

Manufacturer Resources

DON-JO Latch Protectors

Product Specs

Subcategory:
Latches & Catches
Product Group:
Door Trim and Accessories
Product Subgroup:
Door Trim and Latch Protection
Product Type:
Latch Protectors
Commercial/Residential:
Commercial
Electronic:
Yes
Door Swing:
Out Swing
Product Model:
MELP 210 EBF
Product Category:
Door Trim and Accessories
Product Substrate:
Steel
Department:
Door Hardware

Don-Jo MELP-210-EBF-SL – Frequently Asked Questions

1) Will a Don-Jo MELP-210-EBF latch protector work on an in-swing door?
No. The MELP-210-EBF is an out-swing latch protector. It mounts on the pull side of the door where the latch and strike gap are exposed to attack, which is the condition on an out-swing opening. For an in-swing door the latch is already on the secure side, so an out-swing guard is the wrong part for that opening.
2) Can I use a latch guard over an electric strike without blocking the access control hardware?
The MELP-210-EBF is built for exactly that. It is made for openings using electric strikes and mortise locks, so the cutout and coverage clear the strike while shielding the gap between door and frame. If your opening runs a card reader or buzzer release into an electric strike, this is the guard type to put over it rather than a plain latch protector sized for a cylindrical latch.
3) How big is the Don-Jo MELP-210-EBF latch protector, and will it cover a mortise lock strike area?
It measures 2-5/8 inches by 10 inches. That 10 inch run is what lets it span a mortise lock strike and an electric strike faceplate, both of which are far taller than a cylindrical latch faceplate. Lay a tape on your existing strike before ordering: if the strike plate plus the trim above and below it stays inside a 10 inch window, this covers it.
4) Do I need to buy separate screws for the Don-Jo MELP-210-EBF, or are fasteners included?
EBF fasteners come with it, so nothing extra is required to mount the plate. EBF is the one-way, tamper-resistant style that drives in but will not back out with a standard driver, which is the point on an out-swing door where the fastener heads are exposed on the attack side. If you order the plain MELP version instead you get standard fasteners, so specify the EBF suffix when the heads will be reachable from outside.
5) How thick is the steel on a Don-Jo MELP latch guard?
12 gauge, which the spec puts at .104 thickness. That is a heavy plate for a latch guard, and it matters because the whole job of the part is to resist a pry bar working the gap. Thin sheet deforms and lets the tool through; a 12 gauge plate spreads the load into the fasteners instead.
6) What is the difference between a latch protector and a panic guard, and which do I need?
A latch protector like the Don-Jo MELP-210-EBF covers the latch and strike gap on an out-swing door. A panic guard covers the same gap on a door running an exit device, where the latch geometry and the plate length are different. If your door has a push bar, look at a panic guard such as the Trimco PG8000 Series, which covers both panic and latch guard applications. If your door has a mortise lock or an electric strike and no exit device, the MELP-210-EBF is the right family.
7) What finishes does the Don-Jo MELP-210-EBF latch protector come in?
Two: DU duronodic brown coated and SL silver coated. Silver is the one that disappears against aluminum storefront and most brushed hardware; duronodic brown is the match for dark bronze anodized frames, which is common on older aluminum entrances. Pick against the frame, not the lock, since the plate sits on the door face beside the frame.
8) I manage a building with several exterior doors on access control. Can I buy Don-Jo latch guards in bulk?
Yes, the MELP-210-EBF is packed in shelf packs of 10. For a property manager or contractor standardizing several out-swing exterior openings on the same electric strike setup, that pack size covers a typical run of doors in one order and keeps every opening on the same plate and the same finish.
9) Is the Don-Jo MELP-210-EBF suitable for a high-traffic commercial entrance, or is it a residential-grade part?
Commercial grade. It is built for commercial openings, not residential, and the 12 gauge steel body is what carries it through repeated use in schools, healthcare buildings, retail and government facilities. On a residential exterior door with a standard cylindrical latch it would be more plate than the opening needs and sized for the wrong lock type.
